Bianchi OCELOT 1997 VS Raleigh XXIX-G 2008 specs comparison
Bianchi Ocelot
General Infos| Model | Ocelot |
| Manufacturer | Bianchi |
| Year of production | 1997 |
| Current price | Check price Here ==> |
| Color choice | - pearl blue-Dark plum |
| Sizes | - 15 (inches)- 17.5 (inches)- 19.5 (inches)- 21.5 (inches)- 23 (inches)- womens 17.5 (inches) |
| Sizes | - 15 (inches)- 17.5 (inches)- 19.5 (inches)- 21.5 (inches)- 23 (inches)- womens 17.5 (inches) |
Wheels And Breaking System
| Bike front tire | 26 X 2.10 (inches) Kenda K-850 |
| Bike rear tire | Not Available |
| Bike wheel size | 26 (inches) Wheels |
| Brakeset type | Chang Star 274A LeversShimano Altus Brakes |
| Hubs for disc brakes | Rear: Shimano RM-40Front: Falcon HB-30FQ |
| Rims manufacturer | 36-holeWeinmann 4019 |
| Spoke nipples type | Brass Nipples |
| Spoke wheel | 2.0 (millimeters) Straight GaugeChung Nan Stainless Steel |
Frame and Body Specs
| Frame materials | Chromoly Seat Tube and hi-tensile Steel |
| Frame type | TIG-welded |
| Handlebar construction | Hsin Lung MTB 110 |
| Handlebar extender | Optional |
| Handlebar stem details | Hsin Lung Steel |
| Headset size | 1 (inches) Victor VP-H67 |
Gearing Specifications
| Bicycle chain | 1/2 X 3/32 (inches)KMC HP-70S |
| Bottom bracket shell width | 68 (millimeters) English |
| Bottom bracket type | 113 (millimeters) SpindleVictor VPB-32 |
| Crankset parts and sizes | 24/32/42 TeethSR CW-XR15 |
| Gear shift levers | Grip Shift SRT-400i |
| Rear gear set | 11 - 28 Teeth7-speed |
Bianchi Ocelot Fork System Data
| Derailleur (Front) | Bottom-pull and clamp-on 28.6 (millimeters)Shimano AceraX Top-swing |
| Derailleur (Rear) | Shimano AceraX |
| Fork material | Unicrown CrownChromoly and hi-tensile Steel |
| Fork type | Bianchi |
Other Specs of Bianchi Ocelot
| Component group sets | Shimano AceraX and Altus |
| Pedals details | Victor VP-893N |
| Rear shock absorber | Not Available |
| Saddle seat | Viscount 9200FS |
| Seat post extension | 26.6 (millimeters) DiameterKalloy SP-200 |

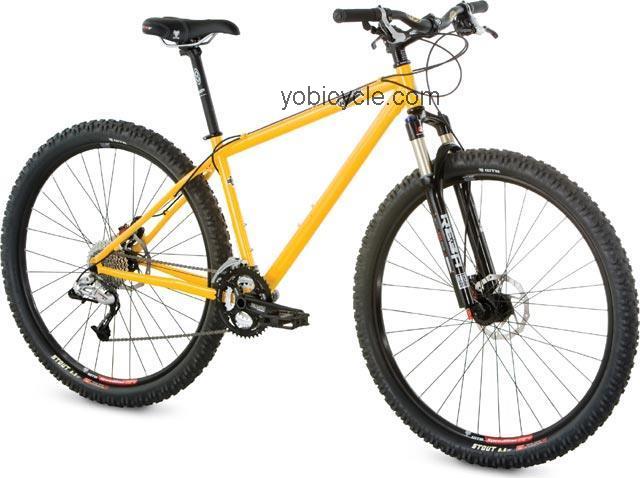

Raleigh XXIX-G
General Infos| Model | XXIX-G |
| Manufacturer | Raleigh |
| Year of production | 2008 |
| Current price | Check price Here ==> |
| Color choice | -Team Yellow |
| Sizes | - Small - Medium - Large - Extra large |
Wheels And Breaking System
| Bike front tire | 29 X 2.3 (inches) WTB Stout |
| Bike rear tire | Not Available |
| Bike wheel size | 29 (inches) Wheels |
| Brakeset type | Avid FR-5 LeversAvid BB5 With 6 (inches) Rotor Brakes |
| Hubs for disc brakes | Rear: Alloy Disc Cassette QRFront: Alloy Disc QR |
| Rims manufacturer | 32-holeWTB SpeedDisc All Mountain |
| Spoke nipples type | Not Available |
| Spoke wheel | 14ga. Straight GaugeDT Swiss Stainless Steel |
Frame and Body Specs
| Frame materials | 4130 chromoly c |
| Frame type | TIG-welded |
| Handlebar construction | Easton EA50 |
| Handlebar extender | Optional |
| Handlebar stem details | Easton EA30 31.8 |
| Headset size | 1 1/8 (inches) Threadless Aheadset |
Gearing Specifications
| Bicycle chain | SRAM PC-950 |
| Bottom bracket shell width | Not Available |
| Bottom bracket type | TruVativ GXP |
| Crankset parts and sizes | 22/32/44 TeethTruVativ FireX |
| Gear shift levers | SRAM X.5 |
| Rear gear set | 11 - 34 Teeth9-speed |
Raleigh XXIX-G Fork System Data
| Derailleur (Front) | Shimano Deore |
| Derailleur (Rear) | SRAM X.7 |
| Fork material | Unicrown Crown4130 Chromoly |
| Fork type | Raleigh |
Other Specs of Raleigh XXIX-G
| Component group sets | Mountain Mix |
| Pedals details | Resin Platform |
| Rear shock absorber | Not Available |
| Saddle seat | WTB Laser V Comp |
| Seat post extension | 27.2 (millimeters) DiameterEaston EA30 |
