Diamondback Nitrus 24 2009 Technical specs and features
Brand | Diamondback |
Model | Nitrus 24 |
First production | 2009 |
Bike category | BMX |
Bike sub-category | BMX Cruiser |
Bike Pricing | Check price Here ==> |
Parts And Accessories | Diamondback Nitrus 24 Parts |
Available Sizes | - 21.25 TT (inches) |
Wheels And Breaking System
Bike front tire | 24 X 1.85 (inches) Comp III Style |
Bike rear tire | Not Available |
Bike wheel size | 24 (inches) Wheels |
Brakeset type | Tektro Rear Levers Tektro Linear Rear Brakes |
Hubs for disc brakes | Aluminum 3/8 (inches) Axle |
Rims manufacturer | 36-hole Aluminum |
Spoke nipples type | Not Available |
Spoke wheel | 14ga. |
Frame and Body Specifications
Frame materials | 6061-T6 Aluminum |
Frame type | TIG-welded |
Handlebar construction | Hi-Ten 2-piece |
Handlebar extender | Optional |
Handlebar stem details | DB Reactor |
Headset size | 1 1/8 (inches) FSA Threadless |
Gearing Specs
Bicycle chain | 1/2 X 1/8 (inches) KMC Z411 |
Bottom bracket shell width | Not Available |
Bottom bracket type | Loose Ball With 8 Spline |
Crankset parts and sizes | 41 Teeth 3-Piece Tubular Chromoly 175 (millimeters) |
Gear shift levers | Not Available |
Rear gear set | 16 Teeth 1-speed |
Diamondback Nitrus 24 Fork System Data
Derailleur (Front) | Not Available |
Derailleur (Rear) | Not Available |
Fork material | Unicrown Crown Hi-tensile Steel and chromoly Steerer |
Fork type | Not Available |
Other Specs of Diamondback Nitrus 24
Component group sets | BMX |
Available colors | - Black and Red |
Weight | Not Available |
Pedals details | DB Sound Alloy With Traction Pins |
Rear shock absorber | Not Available |
Saddle seat | DB BMX Padded |
Seat post extension | 26.8 (millimeters) Diameter Alloy Micro Adjust |

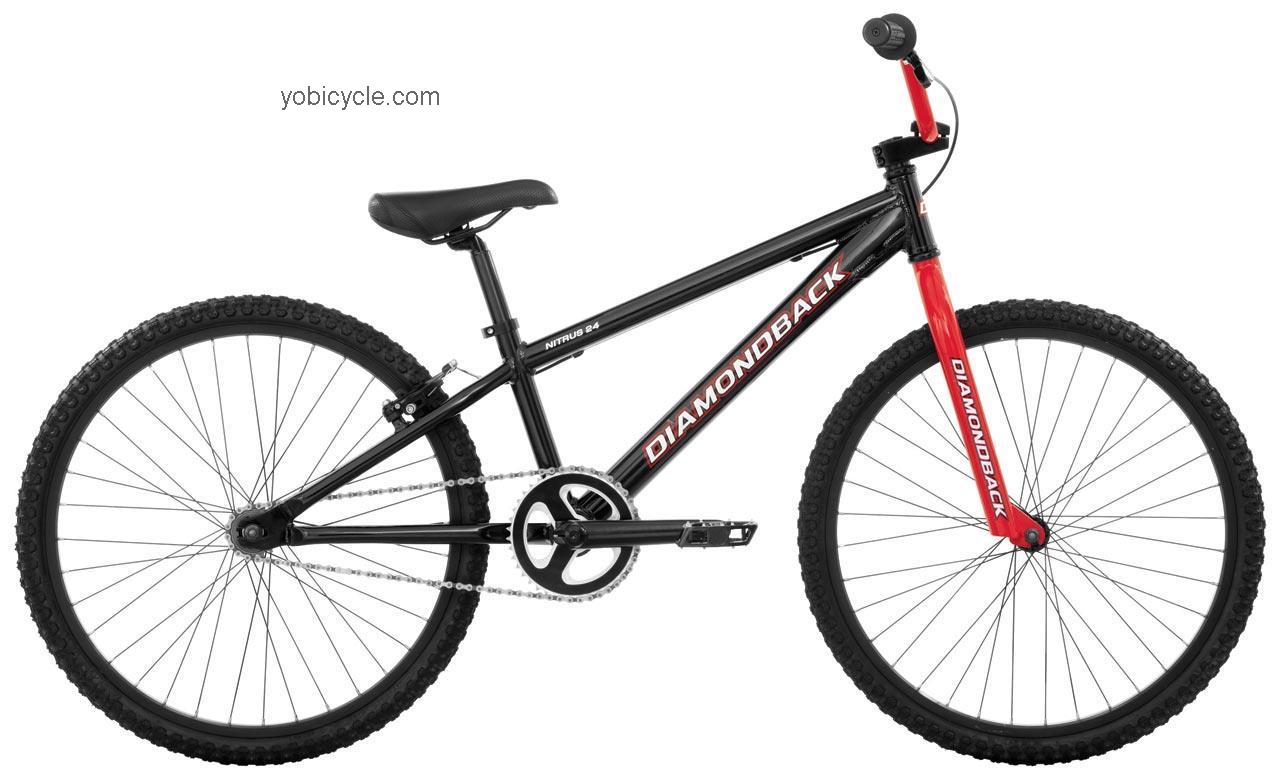

Diamondback Nitrus 24 picture
Nitrus 24 bike comparison


Diamondback Nitrus 24 Haro BackTrail X24

Diamondback Nitrus 24 GT Speed Series 24


Diamondback Nitrus 24 GT Pro Series 24

Diamondback Nitrus 24 Volume Bikes Sledgehammer
Diamondback Nitrus 24 bike review
Diamondback produced the Nitrus 24 bike in 2009 and can be classified as a BMX bicycle.
Diamondback BMX Nitrus 24 can be found in a few colors, among these colors Black and Red .
This bike is equiped with 24 x 1.85" Comp III style tires and 14ga. spoke wheel while the rims are manufactured by Aluminum, 36-hole. Diamondback equiped this exact model with Tektro linear rear brakes, Tektro rear levers braking system and Aluminum 3/8" axle hubs.
To guarantee the comfiest ride Diamondback used 6061-T6 aluminum material for the frame. Hi-Ten 2-piece high strength material is used on the handlebar of this Nitrus 24 to ensure the perfect handling while the stems are made of DB Reactor.
For the smoothest biking experience 3-Piece Tubular Chromoly 175mm, 41 teeth is used on this bicycle linked to KMC Z411 chain that is easily replaceable as stated by Diamondback.
