Cannondale TERRA 2002 VS Raleigh M80 2002 specs comparison

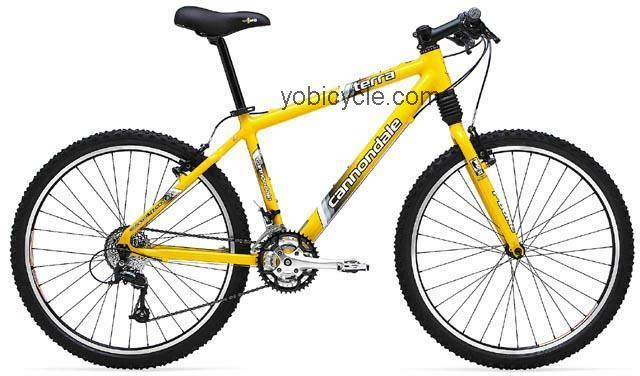

Cannondale Terra
General Infos| Model | Terra |
| Manufacturer | Cannondale |
| Year of production | 2002 |
| Current price | Check price Here ==> |
| Color choice |
- Yellow -Black |
| Sizes |
- Small - Medium - Large - Extra large |
| Sizes |
- Small - Medium - Large - Extra large |
Wheels And Breaking System
| Bike front tire | 26 X 2.00 (inches) Hutchinson Mosquito |
| Bike rear tire | Not Available |
| Bike wheel size | 26 (inches) Wheels |
| Brakeset type | Tektro 379A Levers Shimano BR-420 Brakes |
| Hubs for disc brakes | Rear: Shimano FH-RM40 Front: Shimano HB-RM40 |
| Rims manufacturer | 32-hole Cannondale Performance |
| Spoke nipples type | Brass Nipples |
| Spoke wheel | 15ga. Straight Gauge DT Stainless Steel |
Frame and Body Specs
| Frame materials | 6061 T6 Aluminum |
| Frame type | TIG-welded |
| Handlebar construction | Cannondale 6061 |
| Handlebar extender | Optional |
| Handlebar stem details | Cannondale HeadShok SI |
| Headset size | 1 1/2 (inches) Cannondale HeadShok SI |
Gearing Specifications
| Bicycle chain | 1/2 X 3/32 (inches) |
| Bottom bracket shell width | Not Available |
| Bottom bracket type | Shimano BB-UN52 |
| Crankset parts and sizes | 22/32/44 Teeth Sugino X150 |
| Gear shift levers | Shimano Alivio RapidFire Plus |
| Rear gear set | 11 - 34 Teeth 9-speed |
Cannondale Terra Fork System Data
| Derailleur (Front) | Shimano LX |
| Derailleur (Rear) | Shimano Deore |
| Fork material | Unicrown Crown Aluminum |
| Fork type | Headshok P-Bone M |
Other Specs of Cannondale Terra
| Component group sets | Mountain Mix |
| Pedals details | Wellgo |
| Rear shock absorber | Not Available |
| Saddle seat | Selle Royal Video Gel |
| Seat post extension | Kalloy SP-263 |
Raleigh M80
General Infos| Model | M80 |
| Manufacturer | Raleigh |
| Year of production | 2002 |
| Current price | Check price Here ==> |
| Color choice |
- Yellow -Red and Black |
| Sizes |
- 14 (inches) - 16 (inches) - 18 (inches) - 20 (inches) - 22 (inches) |
Wheels And Breaking System
| Bike front tire | Rear: 26 X 2.10 (inches) WTB VelociRaptor Front: 20 X 2.10 (inches) WTB VelociRaptor |
| Bike rear tire | Not Available |
| Bike wheel size | Rear: 26 (inches) Wheels Front: 20 (inches) |
| Brakeset type | Tektro 352A Levers Tektro 829A Brakes |
| Hubs for disc brakes | Q and R Joy Tech Aluminum |
| Rims manufacturer | 32-hole Weinmann Zac 19 |
| Spoke nipples type | Brass Nipples |
| Spoke wheel | 14ga. Straight Gauge Sha-Dar Stainless Steel |
Frame and Body Specs
| Frame materials | Butted With Replaceable Derailleur Hanger 7005 Aluminum |
| Frame type | TIG-welded |
| Handlebar construction | Aluminum |
| Handlebar extender | 3-piece Aluminum |
| Handlebar stem details | Aluminum Threadless |
| Headset size | 1 1/8 (inches) Threadless Tien Hsin No.10 ZST |
Gearing Specifications
| Bicycle chain | 1/2 X 3/32 (inches) KMC Z-9000 |
| Bottom bracket shell width | 68 (millimeters) English |
| Bottom bracket type | 111 (millimeters) Spindle Chin Haur CH-52 |
| Crankset parts and sizes | 22/32/44 Teeth Shimano FC-M440 |
| Gear shift levers | Shimano Deore Rapidfire Plus |
| Rear gear set | 11 - 32 Teeth 9-speed |
Raleigh M80 Fork System Data
| Derailleur (Front) | Bottom-pull and clamp-on 31.8 (millimeters) Shimano Deore |
| Derailleur (Rear) | Shimano Deore |
| Fork material | Single Triple-clamp Crown Aluminum |
| Fork type | 3.10 (inches) Travel Rock Shox Judy C |
Other Specs of Raleigh M80
| Component group sets | Mountain Mix |
| Pedals details | Aluminum Cage With Clips & Straps |
| Rear shock absorber | Not Available |
| Saddle seat | Velo |
| Seat post extension | 27.2 (millimeters) Diameter Aluminum Micro-adjust |
