Raleigh C200 2001 Technical specs and features
| Brand | Raleigh |
| Model | C200 |
| First production | 2001 |
| Bike category | Commuter |
| Bike sub-category | Comfort Commuter |
| Bike Pricing | Check price Here ==> |
| Parts And Accessories | Raleigh C200 Parts |
| Available Sizes | - Large - medium - small - womens medium - womens small - xlarge - xsmall |
Wheels And Breaking System
| Bike front tire | 700 X 38c Multi-terrain |
| Bike rear tire | Not Available |
| Bike wheel size | 700c Wheels |
| Brakeset type | Tektro Comfort 390A LeversProMax Linear-pull Brakes |
| Hubs for disc brakes | Aluminum O and S |
| Rims manufacturer | 36-holeAlex DM-18 |
| Spoke nipples type | Not Available |
| Spoke wheel | 14g Straight GaugeStainless Steel |
Frame and Body Specifications
| Frame materials | 6061 T6 Aluminum |
| Frame type | TIG-welded |
| Handlebar construction | RiseAluminum |
| Handlebar extender | Optional |
| Handlebar stem details | AdjustableAluminum |
| Headset size | 1 (inches) Steel |
Gearing Specs
| Bicycle chain | 1/2 X 1/8 (inches)KMC IG-31 |
| Bottom bracket shell width | Not Available |
| Bottom bracket type | Sealed Cartridge |
| Crankset parts and sizes | 28/38/48 TeethShimano C202 |
| Gear shift levers | Shimano Revo |
| Rear gear set | 11 - 34 Teeth8-speed |
Raleigh C200 Fork System Data
| Derailleur (Front) | Shimano C202 |
| Derailleur (Rear) | Shimano C201 Rapid-Rise |
| Fork material | Triple-clamp CrownAluminum and magnesium |
| Fork type | 2.0 (inches) TravelRock Shox Metro XC |
Other Specs of Raleigh C200
| Component group sets | Hybrid Mix |
| Available colors | - Blue |
| Weight | Unspecified |
| Pedals details | ComfortPlatform |
| Rear shock absorber | Not Available |
| Saddle seat | Selle Stratos Enhanced Comfort |
| Seat post extension | SuspensionAluminum |
Raleigh C200 picture
C200 bike comparison
Raleigh C200

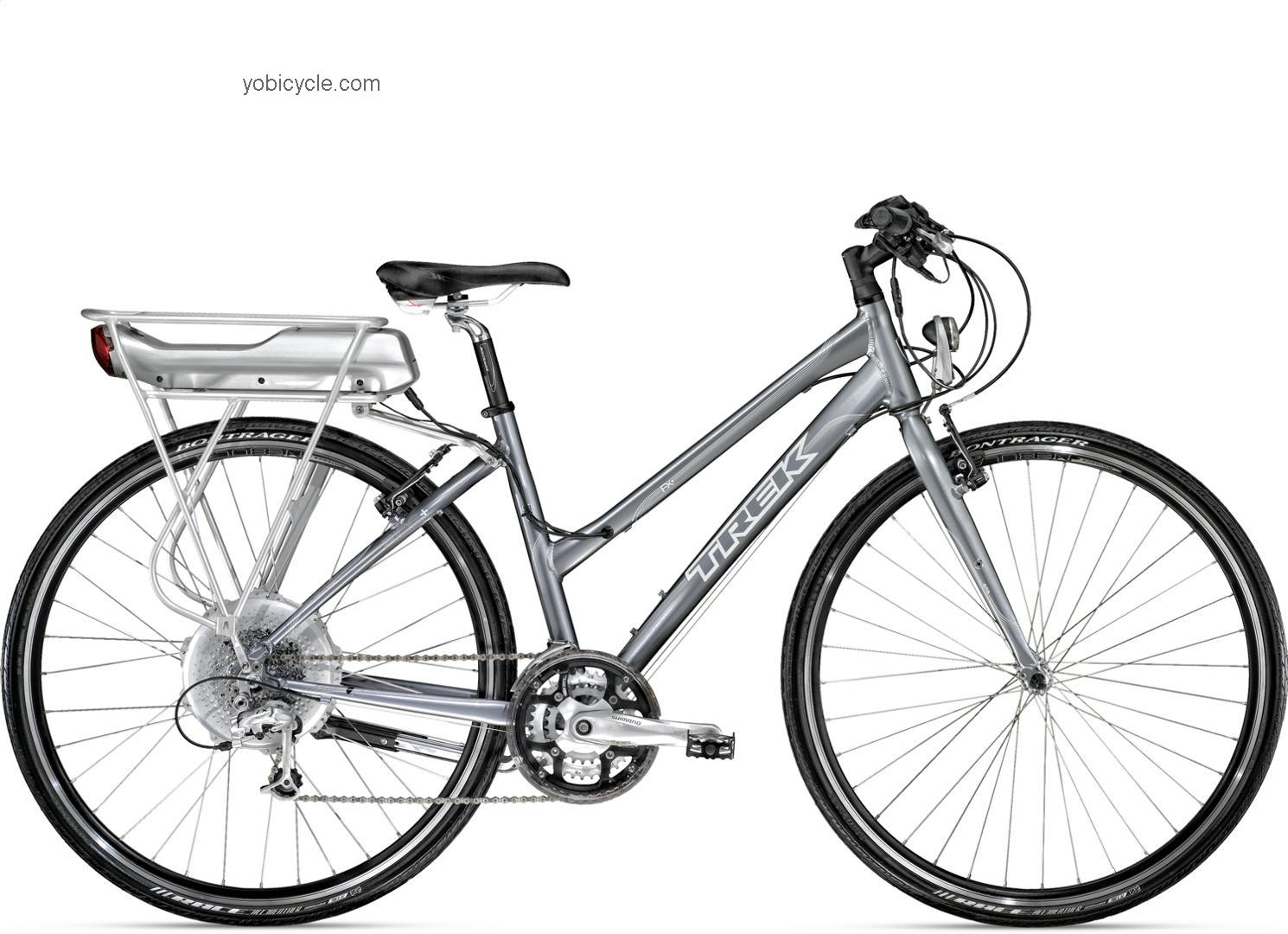

Trek FX+ WSD
Raleigh C200
Sun Bicycles Boardwalk Aluminum CB
Raleigh C200
Jamis Citizen 2.0
Raleigh C200
Schwinn Sierra GSD
Raleigh C200 Trek FX+ WSD
Raleigh C200 Sun Bicycles Boardwalk Aluminum CB
Raleigh C200 Jamis Citizen 2.0
Raleigh C200 Schwinn Sierra GSD
Raleigh C200 bike review
Raleigh produced the C200 bike in 2001 and can be classified as a Commuter bicycle, this exact model costs in american market arround $429.99.C200 bike is available in many sizes such as Large , medium , small , womens medium , womens small , xlarge and xsmall .
Raleigh Commuter C200 can be found in one single color which is Blue.
This bike is equiped with 700 x 38c multi-terrain tires and Stainless steel spoke wheel while the rims are manufactured by Alex DM-18, 36-hole. Raleigh equiped this exact model with ProMax linear-pull brakes, Tektro Comfort 390A levers braking system and Aluminum O/S hubs.
To guarantee the comfiest ride Raleigh used 6061 T6 aluminum material for the frame. Aluminum, rise high strength material is used on the handlebar of this C200 to ensure the perfect handling while the stems are made of Aluminum, adjustable.
For the smoothest biking experience Shimano C202, 28/38/48 teeth is used on this bicycle linked to KMC IG-31 chain that is easily replaceable as stated by Raleigh, the whole system is connected to a high reliability Shimano Revo gear shift levers.
