Dahon HIMALAYA SC614A 1998 VS Alex Moulton APB 14 SHIMANO PLUS 1997 specs comparison

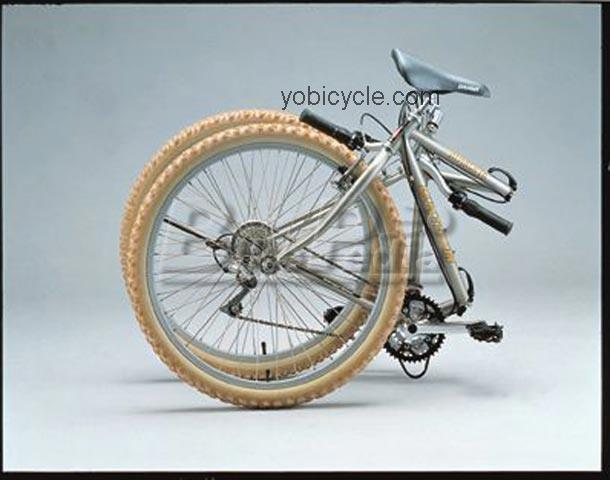

Dahon Himalaya SC614A
General Infos| Model | Himalaya SC614A |
| Manufacturer | Dahon |
| Year of production | 1998 |
| Current price | Check price Here ==> |
| Color choice |
-Platinum |
| Sizes |
- 17 (inches) |
| Sizes |
- 17 (inches) |
Wheels And Breaking System
| Bike front tire | 26 X 1.90 (inches) |
| Bike rear tire | Not Available |
| Bike wheel size | 26 (inches) Wheels |
| Brakeset type | Tektro RBP-286A Levers Tektro 867A Brakes |
| Hubs for disc brakes | Nutted Aluminum |
| Rims manufacturer | 36-hole Kin Lin Aluminum |
| Spoke nipples type | Brass Nipples |
| Spoke wheel | 2.0 (millimeters) Straight Gauge Stainless Steel |
Frame and Body Specs
| Frame materials | 4130 Chromoly Main Triangle and hi-tensile Steel Rear Stays |
| Frame type | TIG-welded |
| Handlebar construction | 1-piece Handlebar+stem |
| Handlebar extender | Not Available |
| Handlebar stem details | 1-piece Handlebar+stem |
| Headset size | Not Available |
Gearing Specifications
| Bicycle chain | 1/2 X 3/32 (inches) KMC HG-50 |
| Bottom bracket shell width | Not Available |
| Bottom bracket type | Kajita |
| Crankset parts and sizes | 28/38/48 Teeth Dotek Pro6-210W |
| Gear shift levers | Shimano Alivio MC15-C RapidFire Plus |
| Rear gear set | 13 - 28 Teeth 7-speed |
Dahon Himalaya SC614A Fork System Data
| Derailleur (Front) | Shimano Alivio Top-swing |
| Derailleur (Rear) | Shimano Alivio |
| Fork material | Unicrown Crown Hi-tensile Steel |
| Fork type | Akisu |
Other Specs of Dahon Himalaya SC614A
| Component group sets | Shimano Alivio |
| Pedals details | Not Available |
| Rear shock absorber | Not Available |
| Saddle seat | Not Available |
| Seat post extension | 25.8 (millimeters) Diameter Aluminum Pillar |
Alex Moulton APB 14 Shimano Plus
General Infos| Model | APB 14 Shimano Plus |
| Manufacturer | Alex Moulton |
| Year of production | 1997 |
| Current price | Check price Here ==> |
| Color choice |
-Light blue |
| Sizes |
- Rider can adjust manually |
Wheels And Breaking System
| Bike front tire | 20 X 1.75 (inches) Michelin Cobra |
| Bike rear tire | Not Available |
| Bike wheel size | 20 (inches) Wheels |
| Brakeset type | Shimano Levers Shimano Altus Brakes |
| Hubs for disc brakes | Shimano RX-100 |
| Rims manufacturer | 36-hole Rigida Aluminum |
| Spoke nipples type | Brass Nipples |
| Spoke wheel | 2.0 (millimeters) Straight Gauge Stainless Steel |
Frame and Body Specs
| Frame materials | Hi-tensile Steel |
| Frame type | MIG-welded |
| Handlebar construction | Reynolds 531 |
| Handlebar extender | Not Available |
| Handlebar stem details | Zoom Original |
| Headset size | 1 (inches) YST Sealed Tech |
Gearing Specifications
| Bicycle chain | 1/2 X 3/32 (inches) Sachs SC-M55 |
| Bottom bracket shell width | 68 (millimeters) English |
| Bottom bracket type | SKF |
| Crankset parts and sizes | 42/52 Teeth Shimano RX-100 |
| Gear shift levers | Shimano Deore Thumbshifters |
| Rear gear set | 11 - 28 Teeth 7-speed |
Alex Moulton APB 14 Shimano Plus Fork System Data
| Derailleur (Front) | Bottom-pull and braze-on Shimano Deore LX |
| Derailleur (Rear) | Shimano RX-100 GS |
| Fork material | Unicrown Crown Reynolds 531/hi-tensile Steel |
| Fork type | Moulton Leading Link Suspension |
Other Specs of Alex Moulton APB 14 Shimano Plus
| Component group sets | Shimano RX-100 |
| Pedals details | Victor VP-993 With Clips & Straps |
| Rear shock absorber | 1.25 (inches) Travel Alex Moulton Monosphere |
| Saddle seat | Iscaselle Record Vinyl |
| Seat post extension | Alex Moulton APB Steel |
