Diamondback APEX 2003 VS Redline D640 2008 specs comparison

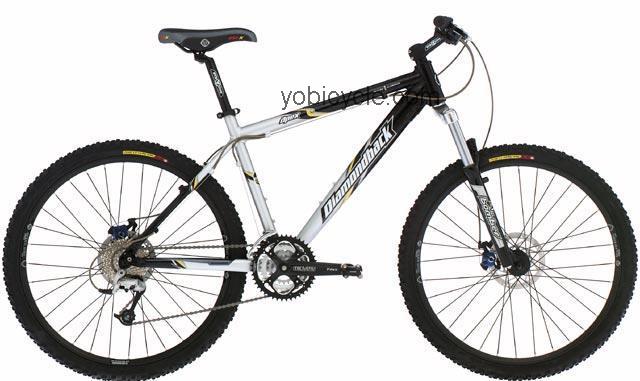

Diamondback Apex

General Infos

Model	Apex
Manufacturer	Diamondback
Year of production	2003
Current price	Check price Here ==>
Color choice	-Fast Black and Silver
Sizes	- 13 (inches) - 16 (inches) - 18 (inches) - 20 (inches)
Sizes	- 13 (inches) - 16 (inches) - 18 (inches) - 20 (inches)

Wheels And Breaking System

Bike front tire	26 X 2.10 (inches) WTB MotoRaptor
Bike rear tire	Not Available
Bike wheel size	26 (inches) Wheels
Brakeset type	Shimano Deore RapidFire SL Levers Shimano BR-M475 Mechanical Disc Brakes
Hubs for disc brakes	WTB SpeedDisc
Rims manufacturer	32-hole WTB SpeedDisc
Spoke nipples type	Aluminum Nipples
Spoke wheel	14ga. Straight Gauge WTB Stainless Steel

Frame and Body Specs

Frame materials	6061 T6 Aluminum
Frame type	TIG-welded
Handlebar construction	WTB Comp XC
Handlebar extender	Optional
Handlebar stem details	WTB Comp OS
Headset size	1 1/8 (inches) Integrated Tien Hsin No.10 ZST

Gearing Specifications

Bicycle chain	1/2 X 3/32 (inches) SRAM PC-49
Bottom bracket shell width	68 (millimeters) English
Bottom bracket type	113 (millimeters) Spindle Sealed Cartridge
Crankset parts and sizes	22/32/44 Teeth TruVativ Firex SX
Gear shift levers	Shimano Deore RapidFire SL
Rear gear set	11 - 32 Teeth 9-speed

Diamondback Apex Fork System Data

Derailleur (Front)	Top-pull and clamp-on 31.8 (millimeters) Shimano Deore XT
Derailleur (Rear)	Shimano Deore XT
Fork material	Single Crown Aluminum and magnesium
Fork type	100 (millimeters) Travel Marzocchi EXR Comp

Other Specs of Diamondback Apex

Component group sets	Mountain Mix
Pedals details	Shimano PD-M505 SPD
Rear shock absorber	Not Available
Saddle seat	WTB SST
Seat post extension	27.2 (millimeters) Diameter Aluminum Micro-adjust

Redline D640

General Infos

Model	D640
Manufacturer	Redline
Year of production	2008
Current price	Check price Here ==>
Color choice	-Black
Sizes	- 14 (inches)

Wheels And Breaking System

Bike front tire	Rear: 26 X 2.3 (inches) Kenda Kinetic Front: 26 X 2.3 (inches) Kenda K-Rad
Bike rear tire	Not Available
Bike wheel size	26 (inches) Wheels
Brakeset type	Avid FR-5 Front and Avid FR- 5 Rear Levers Avid BB-5 Mechanical With 6 (inches) Rotor Brakes
Hubs for disc brakes	Redline Sealed Bearing Disc
Rims manufacturer	32-hole Sun Rhyno Lite
Spoke nipples type	Not Available
Spoke wheel	14ga. Stainless Steel

Frame and Body Specs

Frame materials	7005 Alloy c
Frame type	TIG-welded
Handlebar construction	Truvativ Hussefelt Riser
Handlebar extender	Optional
Handlebar stem details	Truvativ Hussefelt 31.8
Headset size	1 1/8 (inches) VP Monsta

Gearing Specifications

Bicycle chain	Not Available
Bottom bracket shell width	68 (millimeters)
Bottom bracket type	TruVativ Howitzer
Crankset parts and sizes	36 Teeth Truvativ Ruktion 1.0 BG
Gear shift levers	SRAM X.7
Rear gear set	11 - 32 Teeth 9-speed

Redline D640 Fork System Data

Derailleur (Front)	Not Available
Derailleur (Rear)	SRAM X.7
Fork material	Single Crown Aluminum and magnesium
Fork type	85 - 130 (millimeters) Adjustable Travel RockShox Tora 302 U-Turn

Other Specs of Redline D640

Component group sets	SRAM X.7/mix
Pedals details	Alloy Platform
Rear shock absorber	Not Available
Saddle seat	Redline
Seat post extension	27.2 (millimeters) Diameter Redline
