Diamondback ORION 2009 VS Felt VAULT 2011 specs comparison
Diamondback Orion
General Infos| Model | Orion |
| Manufacturer | Diamondback |
| Year of production | 2009 |
| Current price | Check price Here ==> |
| Color choice |
-Olive Green |
| Sizes |
- 20.25 TT (inches) |
| Sizes |
- 20.25 TT (inches) |
Wheels And Breaking System
| Bike front tire | 20 X 2.10 (inches) The Shadow Conspiracy Undertone |
| Bike rear tire | Not Available |
| Bike wheel size | 20 (inches) Wheels |
| Brakeset type | Tektro 2 Finger Levers Tektro 907 U-brake Brakes |
| Hubs for disc brakes | Rear: Cassette Driver Front: Aluminum Shell With 14 (millimeters) Axle |
| Rims manufacturer | 48-hole Alienation 440 |
| Spoke nipples type | Not Available |
| Spoke wheel | 14ga. |
Frame and Body Specs
| Frame materials | Chromoly |
| Frame type | TIG-welded |
| Handlebar construction | Hi-Ten 2-piece |
| Handlebar extender | Optional |
| Handlebar stem details | Alloy 4-bolt |
| Headset size | 1 1/8 (inches) FSA Threadless |
Gearing Specifications
| Bicycle chain | 1/2 X 1/8 (inches) KMC Kool Chain |
| Bottom bracket shell width | Not Available |
| Bottom bracket type | Sealed Bearing Mid |
| Crankset parts and sizes | 28 Teeth 3-Piece Tubular Chromoly 175 (millimeters) |
| Gear shift levers | Not Available |
| Rear gear set | 10 Teeth 1-speed |
Diamondback Orion Fork System Data
| Derailleur (Front) | Not Available |
| Derailleur (Rear) | Not Available |
| Fork material | Unicrown Crown Chromoly |
| Fork type | Not Available |
Other Specs of Diamondback Orion
| Component group sets | BMX |
| Pedals details | DB Sound Alloy With Traction Pins |
| Rear shock absorber | Not Available |
| Saddle seat | DB Driver's Seat |
| Seat post extension | 25.4 (millimeters) Diameter Steel Micro-adjust |

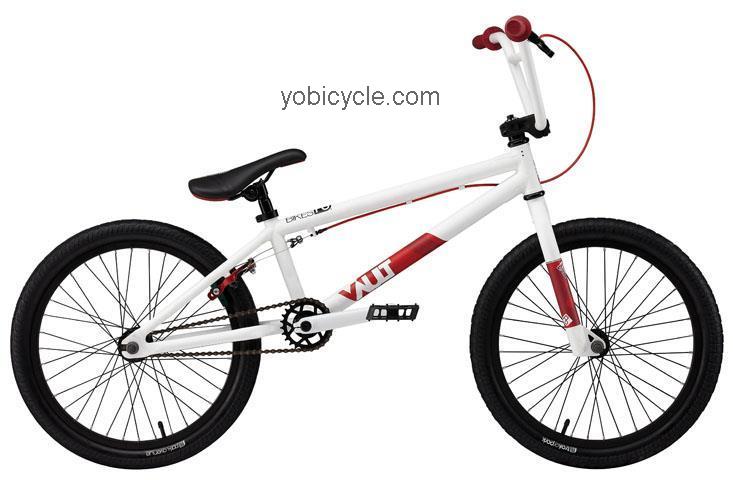

Felt VAULT
General Infos| Model | VAULT |
| Manufacturer | Felt |
| Year of production | 2011 |
| Current price | Check price Here ==> |
| Color choice |
- matte white -Vivid blue |
| Sizes |
- Not available |
Wheels And Breaking System
| Bike front tire | Rear: 20 X 1.95 Felt Park Avenue Front: 20 X 1.95 Felt Trailorpark |
| Bike rear tire | Not Available |
| Bike wheel size | 20 (inches) Wheels |
| Brakeset type | Tektro Aluminum Levers Tektro 907 U-brake Brakes |
| Hubs for disc brakes | Rear: Steel Front: 14 (millimeters) Axle |
| Rims manufacturer | 36-hole Alex 303 |
| Spoke nipples type | Brass |
| Spoke wheel | 14ga. |
Frame and Body Specs
| Frame materials | CrMo |
| Frame type | Not Available |
| Handlebar construction | Hi-Ten Riser |
| Handlebar extender | Optional |
| Handlebar stem details | Aluminum |
| Headset size | 1 1/8 (inches) Threadless |
Gearing Specifications
| Bicycle chain | 1/2 X 1/8 (inches) KMC Z410 |
| Bottom bracket shell width | Not Available |
| Bottom bracket type | Loose Ball |
| Crankset parts and sizes | 25t Teeth 3-piece Tubular Cromo |
| Gear shift levers | Not Available |
| Rear gear set | 9 teeth c |
Felt VAULT Fork System Data
| Derailleur (Front) | Not Available |
| Derailleur (Rear) | Not Available |
| Fork material | Steel |
| Fork type | Hi Ten |
Other Specs of Felt VAULT
| Component group sets | BMX Mix |
| Pedals details | Odyssey Twisted |
| Rear shock absorber | Not Available |
| Saddle seat | Felt FB |
| Seat post extension | 25.4 (millimeters) Diameter Aluminum |
