Diamondback ORION 2008 VS Redline RL-360 2002 specs comparison

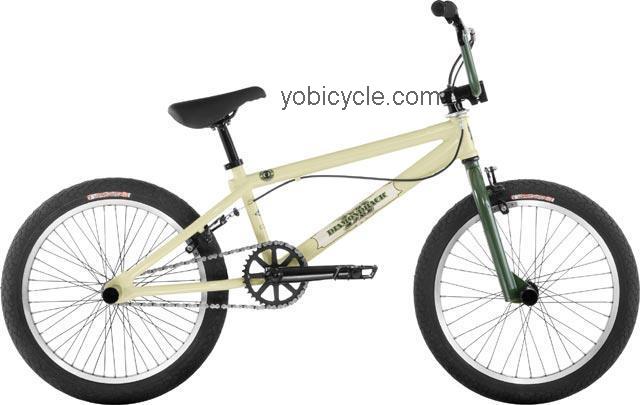

Diamondback Orion
General Infos| Model | Orion |
| Manufacturer | Diamondback |
| Year of production | 2008 |
| Current price | Check price Here ==> |
| Color choice | -Money |
| Sizes | - 20.25 top tube (inches) |
| Sizes | - 20.25 top tube (inches) |
Wheels And Breaking System
| Bike front tire | Rear: 20 X 2.1 (inches) The Shadow Conspiracy UndertoneFront: 20 X 2.10 (inches) The Shadow Conspiracy Undertone |
| Bike rear tire | Not Available |
| Bike wheel size | 20 (inches) Wheels |
| Brakeset type | Tektro 2-finger With Hinged Bracket LeversTektro 907A With SST DC Amplifier Brakes |
| Hubs for disc brakes | Aluminum 14 (millimeters) Axle |
| Rims manufacturer | 48-holeSun Rhyno Lite XL |
| Spoke nipples type | Not Available |
| Spoke wheel | 14ga. Straight Gauge |
Frame and Body Specs
| Frame materials | Full Chromoly |
| Frame type | TIG-welded |
| Handlebar construction | Hi-ten Steel 2-piece |
| Handlebar extender | Optional |
| Handlebar stem details | DB D-Day SLK 4-bolt |
| Headset size | 1 1/8 (inches) Threadless FSA |
Gearing Specifications
| Bicycle chain | 1/2 X 1/8 (inches)KMC Kool Chain |
| Bottom bracket shell width | Not Available |
| Bottom bracket type | Sealed Bearing With 8-spline |
| Crankset parts and sizes | 36 Teeth175 (millimeters) Tubular Chromoly 3-piece |
| Gear shift levers | Not Available |
| Rear gear set | 13 Teeth1-speed |
Diamondback Orion Fork System Data
| Derailleur (Front) | Not Available |
| Derailleur (Rear) | Not Available |
| Fork material | Unicrown CrownChromoly |
| Fork type | Diamondback |
Other Specs of Diamondback Orion
| Component group sets | BMX Mix |
| Pedals details | DB Sound Alloy |
| Rear shock absorber | Not Available |
| Saddle seat | DB Driver's Seat |
| Seat post extension | 25.4 (millimeters) DiameterSteel Micro-adjust |
Redline RL-360
General Infos| Model | RL-360 |
| Manufacturer | Redline |
| Year of production | 2002 |
| Current price | Check price Here ==> |
| Color choice | - Chrome with Stripes- Royal Blue with Stripes-Black with Flames |
| Sizes | - Pro |
Wheels And Breaking System
| Bike front tire | Rear: 20 X 1.75 (inches) Redline LogoFront: 20 X 2.00 (inches) Redline Logo |
| Bike rear tire | Not Available |
| Bike wheel size | 20 (inches) Wheels |
| Brakeset type | Promax Rear LeversProMax Linear-pull Rear Brakes |
| Hubs for disc brakes | Steel |
| Rims manufacturer | 36-holeAlex X-303 |
| Spoke nipples type | Not Available |
| Spoke wheel | 14ga. Straight Gauge |
Frame and Body Specs
| Frame materials | Chromoly and hi-tensile Steel |
| Frame type | TIG-welded |
| Handlebar construction | Redline Pro Chromoly |
| Handlebar extender | Optional |
| Handlebar stem details | Redline Proline |
| Headset size | 1 1/4 (inches) Tioga |
Gearing Specifications
| Bicycle chain | 1/2 X 3/32 (inches)KMC Z-410 |
| Bottom bracket shell width | Not Available |
| Bottom bracket type | Loose Ball |
| Crankset parts and sizes | 44 Teeth1-piece Forged 175 (millimeters) |
| Gear shift levers | Not Available |
| Rear gear set | 16 Teeth1-speed |
Redline RL-360 Fork System Data
| Derailleur (Front) | Not Available |
| Derailleur (Rear) | Not Available |
| Fork material | Unicrown CrownChromoly |
| Fork type | Redline |
Other Specs of Redline RL-360
| Component group sets | Not Available |
| Pedals details | Redline Aluminum |
| Rear shock absorber | Not Available |
| Saddle seat | Redline |
| Seat post extension | Steel Micro-adjust |
