Diamondback OUTLOOK 1998 VS Raleigh M30 1999 specs comparison

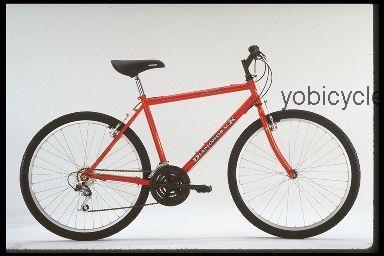

Diamondback Outlook

General Infos

Model	Outlook
Manufacturer	Diamondback
Year of production	1998
Current price	Check price Here ==>
Color choice	- Electric Blue - gloss black - pearl -Bright red
Sizes	- 12 (inches) - 14 (inches) - 16 (inches) - 18 (inches) - 20 (inches) - 22 (inches) - womens 16 (inches) - womens 18 (inches)
Sizes	- 12 (inches) - 14 (inches) - 16 (inches) - 18 (inches) - 20 (inches) - 22 (inches) - womens 16 (inches) - womens 18 (inches)

Wheels And Breaking System

Bike front tire	26 X 1.95 (inches) Cheng Shin C-796
Bike rear tire	Not Available
Bike wheel size	26 (inches) Wheels
Brakeset type	Lee Chi 26AP Levers Lee Chi 84A Brakes
Hubs for disc brakes	Nutted Steel
Rims manufacturer	36-hole Aluminum
Spoke nipples type	Brass Nipples
Spoke wheel	2.0 (millimeters) Straight Gauge Orient Steel

Frame and Body Specs

Frame materials	Hi-tensile Steel
Frame type	TIG-welded
Handlebar construction	Diamondback Steel
Handlebar extender	Optional
Handlebar stem details	Diamondback Steel
Headset size	1 (inches) YST Steel

Gearing Specifications

Bicycle chain	1/2 X 3/32 (inches) KMC UG-50
Bottom bracket shell width	68 (millimeters) English
Bottom bracket type	122.5 (millimeters) Spindle YST BB 613
Crankset parts and sizes	28/38/48 Teeth Tracer MY-1i
Gear shift levers	Grip Shift MRX-170
Rear gear set	14 - 28 Teeth 7-speed

Diamondback Outlook Fork System Data

Derailleur (Front)	Top-pull and clamp-on 31.8 (millimeters) Shimano Tourney TY-22 Top-swing
Derailleur (Rear)	Shimano Tourney TY-22
Fork material	Unicrown Crown Hi-tensile Steel
Fork type	Diamondback

Other Specs of Diamondback Outlook

Component group sets	Mountain Mix
Pedals details	Wellgo LU-895
Rear shock absorber	Not Available
Saddle seat	Avenir
Seat post extension	29.2 (millimeters) Diameter Steel Pillar

Raleigh M30

General Infos

Model	M30
Manufacturer	Raleigh
Year of production	1999
Current price	Check price Here ==>
Color choice	- Fairway Green -Blue Wave
Sizes	- 14.5 (inches) - 16.5 (inches) - 18 (inches) - 20 (inches) - 22 (inches) - womens 16 (inches) - womens 19 (inches)

Wheels And Breaking System

Bike front tire	26 X 1.95 (inches) Kenda K-850
Bike rear tire	Not Available
Bike wheel size	26 (inches) Wheels
Brakeset type	Shimano Levers ProMax DB-33 Brakes
Hubs for disc brakes	Q and R Joy Tech OS Aluminum
Rims manufacturer	36-hole Weinmann 519
Spoke nipples type	Brass Nipples
Spoke wheel	2.0 (millimeters) Straight Gauge Chung Nan Stainless Steel

Frame and Body Specs

Frame materials	Chromoly Main Triangle and hi-tensile Steel Rear Stays
Frame type	TIG-welded
Handlebar construction	Leadtec Steel
Handlebar extender	Optional
Handlebar stem details	Leadtec Steel
Headset size	1 1/8 (inches) Threadless Victor VP-H94

Gearing Specifications

Bicycle chain	1/2 X 3/32 (inches) KMC Z-51
Bottom bracket shell width	68 (millimeters) English
Bottom bracket type	117.5 (millimeters) Spindle Victor VPB-33
Crankset parts and sizes	24/34/42 Teeth Shimano Altus
Gear shift levers	Shimano Altus EZ Fire Plus
Rear gear set	11 - 28 Teeth 7-speed

Raleigh M30 Fork System Data

Derailleur (Front)	Top-pull and clamp-on 28.6 (millimeters) Shimano AceraX Top-swing
Derailleur (Rear)	Shimano AceraX
Fork material	Unicrown Crown Hi-tensile Steel
Fork type	Raleigh

Other Specs of Raleigh M30

Component group sets	Shimano AceraX
Pedals details	Wellgo LU-983
Rear shock absorber	Not Available
Saddle seat	Selle Stratos Hyper Plush Lycra
Seat post extension	26.0 (millimeters) Diameter Aluminum Micro-adjust
