Diamondback SL SUPER 2003 VS LOCOMotion IFS 1996 specs comparison

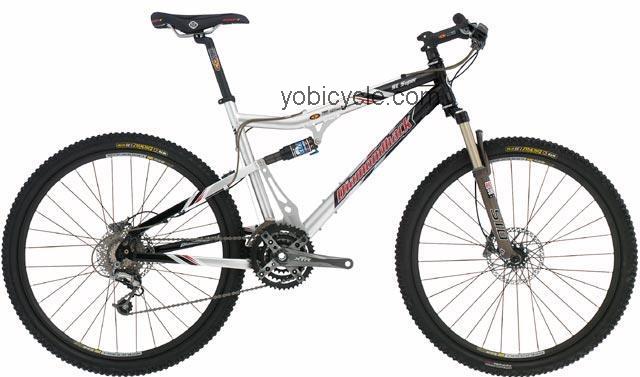

Diamondback SL Super

General Infos

Model	SL Super
Manufacturer	Diamondback
Year of production	2003
Current price	Check price Here ==>
Color choice	-Fast Black and Silver
Sizes	- 16 (inches) - 18 (inches) - 20 (inches)
Sizes	- 16 (inches) - 18 (inches) - 20 (inches)

Wheels And Breaking System

Bike front tire	26 X 1.95 (inches) WTB Epic Wolf
Bike rear tire	Not Available
Bike wheel size	26 (inches) Wheels
Brakeset type	Shimano XTR Dual Control STI Levers Shimano XTR Disc Brake Brakes
Hubs for disc brakes	Equation Sealed
Rims manufacturer	32-hole Equation Disc
Spoke nipples type	Brass Nipples
Spoke wheel	14ga. Straight Gauge Stainless Steel

Frame and Body Specs

Frame materials	7005 aluminum c
Frame type	TIG-welded
Handlebar construction	Easton EC70
Handlebar extender	Optional
Handlebar stem details	Easton EA50
Headset size	1 1/8 (inches) Integrated FSA Orbit MX

Gearing Specifications

Bicycle chain	1/2 X 1/8 (inches) Shimano CN-7701
Bottom bracket shell width	68 (millimeters) English
Bottom bracket type	118 (millimeters) Spindle Shimano XTR Octalink
Crankset parts and sizes	22/32/44 Teeth Shimano XTR
Gear shift levers	Shimano XTR Dual Control STI
Rear gear set	11 - 34 Teeth 9-speed

Diamondback SL Super Fork System Data

Derailleur (Front)	Top-pull and clamp-on 31.8 (millimeters) Shimano XTR
Derailleur (Rear)	Shimano XTR
Fork material	Single Crown Aluminum and magnesium
Fork type	80 (millimeters) Travel Rock Shox Sid Race

Other Specs of Diamondback SL Super

Component group sets	Shimano XTR
Pedals details	Test Ride Pedals
Rear shock absorber	5.0 (inches) - 6.5 (inches) Adjustable Travel Fox Float RL
Saddle seat	WTB Rocket V Laser
Seat post extension	26.8 (millimeters) Diameter Easton EA50

LOCOMotion IFS

General Infos

Model	IFS
Manufacturer	LOCOMotion
Year of production	1996
Current price	Check price Here ==>
Color choice	-Polished
Sizes	- 16 (inches) - 17.5 (inches) - 19 (inches)

Wheels And Breaking System

Bike front tire	Rear: 26 X 2.10 (inches) Onza Honch Front: 26 X 2.10 (inches) Onza Aggro
Bike rear tire	Not Available
Bike wheel size	26 (inches) Wheels
Brakeset type	Dia-Compe SS-7 Levers Caramba Brakes
Hubs for disc brakes	Not Available
Rims manufacturer	32-hole Sun Metal CR17A
Spoke nipples type	Brass Nipples
Spoke wheel	1.8 (millimeters) Double Butted Wheelsmith Stainless Steel

Frame and Body Specs

Frame materials	6061 T6 Aluminum
Frame type	Welded Aluminum
Handlebar construction	Caramba
Handlebar extender	Optional
Handlebar stem details	Caramba
Headset size	1 1/8 (inches) Threadless Dia-Compe Kontak Aheadset SA-2

Gearing Specifications

Bicycle chain	1/2 X 3/32 (inches) KMC SS-90
Bottom bracket shell width	68 (millimeters) English
Bottom bracket type	113 (millimeters) Spindle Shimano BB-UN71
Crankset parts and sizes	24/34/46 Teeth Caramba Double Barrel
Gear shift levers	Grip Shift SRT-800 X-Ray
Rear gear set	11 - 28 Teeth 8-speed

LOCOMotion IFS Fork System Data

Derailleur (Front)	Top-pull and clamp-on 31.8 (millimeters) Shimano Deore XT
Derailleur (Rear)	Shimano Deore XT GS
Fork material	Triple-clamp Crown Aluminum and magnesium
Fork type	Rock Shox Judy XC

Other Specs of LOCOMotion IFS

Component group sets	Shimano Deore XT
Pedals details	Optional
Rear shock absorber	3.0 (inches) Travel Risse
Saddle seat	Titanium Rails Selle San Marco Bontrager
Seat post extension	27.2 (millimeters) Diameter Dean Aluminum
