Diamondback XSL-RACE 2001 VS Titus MOTOLITE EXO CUSTOM (BASE KIT) 2006 specs comparison

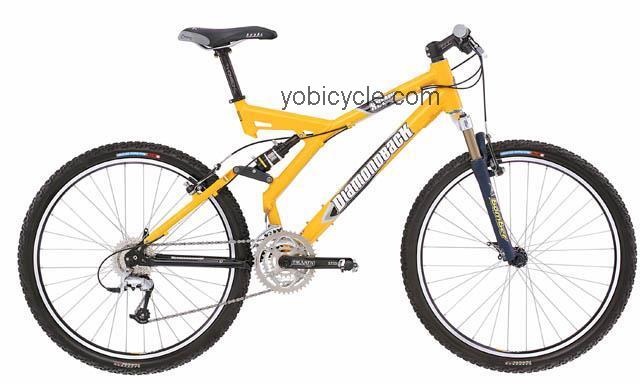

Diamondback XSL-Race
General InfosModel | XSL-Race |
Manufacturer | Diamondback |
Year of production | 2001 |
Current price | Check price Here ==> |
Color choice | -Yellow |
Sizes | - Large - medium - small |
Sizes | - Large - medium - small |
Wheels And Breaking System
Bike front tire | 26 X 1.95 (inches) WTB NanoRaptor DNA |
Bike rear tire | Not Available |
Bike wheel size | 26 (inches) Wheels |
Brakeset type | Koski #2520 Power Curve LeversKoski Brake Lite Brakes |
Hubs for disc brakes | Shimano Deore |
Rims manufacturer | 32-holeMavic X221 |
Spoke nipples type | Aluminum Nipples |
Spoke wheel | 1.8 (millimeters) Straight GaugeDT Stainless Steel |
Frame and Body Specs
Frame materials | 7005 Aluminum With Replaceable Derailleur Hanger |
Frame type | TIG-welded |
Handlebar construction | Koski Butted |
Handlebar extender | Optional |
Handlebar stem details | Koski |
Headset size | 1 1/8 (inches) Threadless Tange Seiki ZS-2 |
Gearing Specifications
Bicycle chain | 1/2 X 1/8 (inches)KMC Z9000 |
Bottom bracket shell width | 68 (millimeters) English |
Bottom bracket type | 102 (millimeters) SpindleTruVativ Sealex Splined |
Crankset parts and sizes | 22/32/44 TeethTruvative Stylo Team |
Gear shift levers | Shimano Deore LX RapidFire SL |
Rear gear set | 11 - 32 Teeth9-speed |
Diamondback XSL-Race Fork System Data
Derailleur (Front) | Top-pull and clamp-on 31.8 (millimeters)Shimano Deore |
Derailleur (Rear) | Shimano Deore XT SGS |
Fork material | Triple-clamp CrownAluminum |
Fork type | 2.75 (inches) TravelMarzocchi Z-3 Flylight Air |
Other Specs of Diamondback XSL-Race
Component group sets | Mountain Mix |
Pedals details | Wellgo M8 |
Rear shock absorber | 3.0 (inches)-4.0 (inches) Adjustable TravelRock Shox SID |
Saddle seat | Koski Fastback |
Seat post extension | 27.2 (millimeters) DiameterThomson Elite |
Titus Motolite Exo Custom (Base Kit)
General InfosModel | Motolite Exo Custom (Base Kit) |
Manufacturer | Titus |
Year of production | 2006 |
Current price | Check price Here ==> |
Color choice | -Titanium |
Sizes | - Custom |
Wheels And Breaking System
Bike front tire | Kenda |
Bike rear tire | Not Available |
Bike wheel size | Not Available |
Brakeset type | Avid Juicy 5 LeversAvid Juicy 5 Brakes |
Hubs for disc brakes | Bontrager Select Disc |
Rims manufacturer | Bontrager Select |
Spoke nipples type | Not Available |
Spoke wheel | Not Available |
Frame and Body Specs
Frame materials | Titus Exogrid Ti and Carbon |
Frame type | TIG-welded and bonded |
Handlebar construction | Titus 6061 Riser |
Handlebar extender | Not Available |
Handlebar stem details | Titus Forged |
Headset size | 1 1/8 (inches) Threadless WTB Momentum Comp ST |
Gearing Specifications
Bicycle chain | 1/2 X 3/32 (inches)Shimano CN-HG53 |
Bottom bracket shell width | Not Available |
Bottom bracket type | Truvativ |
Crankset parts and sizes | Truvativ Firex XR |
Gear shift levers | SRAM X.7 |
Rear gear set | 11 - 34 Teeth9-speed |
Titus Motolite Exo Custom (Base Kit) Fork System Data
Derailleur (Front) | Shimano Deore LX |
Derailleur (Rear) | SRAM X.7 |
Fork material | Single CrownAluminum and magnesium |
Fork type | 90 - 130 (millimeters) Adjustable TravelFox Talas R |
Other Specs of Titus Motolite Exo Custom (Base Kit)
Component group sets | Mountain Mix |
Pedals details | Not Available |
Rear shock absorber | 4 (inches) - 5 (inches) Adjustable Travel |
Saddle seat | WTB Rocket V Comp |
Seat post extension | Titus Micro-adjust |
