Fuji ACE 2003 VS Trek PILOT 5.0 WSD 2007 specs comparison

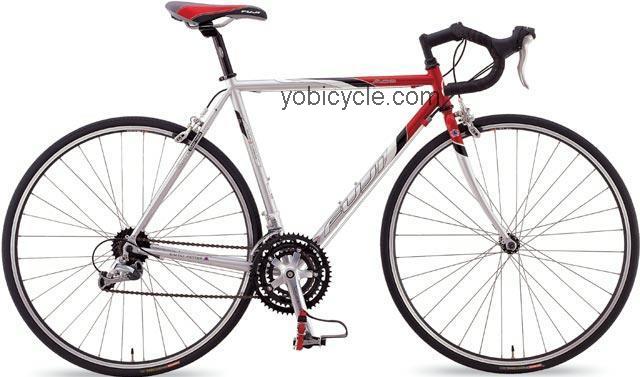

Fuji Ace

General Infos

Model	Ace
Manufacturer	Fuji
Year of production	2003
Current price	Check price Here ==>
Color choice	-Olympic Red and Platinum
Sizes	- 49cm (centimeters) - 52cm (centimeters) - 54cm (centimeters) - 56cm (centimeters) - 58cm (centimeters) - 61cm (centimeters) - 64cm (centimeters)
Sizes	- 49cm (centimeters) - 52cm (centimeters) - 54cm (centimeters) - 56cm (centimeters) - 58cm (centimeters) - 61cm (centimeters) - 64cm (centimeters)

Wheels And Breaking System

Bike front tire	700 X 26c Kenda Kontender
Bike rear tire	Not Available
Bike wheel size	700c Wheels
Brakeset type	Dual Pivot Brakes Shimano Sora STI Dual Control Levers Pro-Max Forged Road
Hubs for disc brakes	Q and R Aluminum
Rims manufacturer	32-hole Alex RP-15
Spoke nipples type	Brass Nipples
Spoke wheel	14ga. Straight Gauge Stainless Steel

Frame and Body Specs

Frame materials	Elios 1 Chome-moly
Frame type	TIG-welded
Handlebar construction	Aluminum Drop Bar
Handlebar extender	Not Available
Handlebar stem details	Aluminum
Headset size	1 (inches) Threaded Sealed Mechanism

Gearing Specifications

Bicycle chain	1/2 X 3/32 (inches) Shimano CN-HG50
Bottom bracket shell width	68 (millimeters) English
Bottom bracket type	116 (millimeters) Spindle Sealed Cartridge
Crankset parts and sizes	30/42/52 Teeth Cyclone Forged Road
Gear shift levers	Shimano Sora STI Dual Control
Rear gear set	13 - 26 Teeth 7-speed

Fuji Ace Fork System Data

Derailleur (Front)	Bottom-pull and clamp-on 28.6 (millimeters) Shimano Sora Triple
Derailleur (Rear)	Shimano Sora GS
Fork material	Aero Crown Chromoly
Fork type	Fuji

Other Specs of Fuji Ace

Component group sets	Road Mix
Pedals details	Wellgo Road With Clips And Straps
Rear shock absorber	Not Available
Saddle seat	Fuji Sport Anatomical
Seat post extension	27.2 (millimeters) Diameter Aluminum Micro-adjust

Trek Pilot 5.0 WSD

General Infos

Model	Pilot 5.0 WSD
Manufacturer	Trek
Year of production	2007
Current price	Check price Here ==>
Color choice	-Iris Blue
Sizes	- 47cm (centimeters) - 51cm (centimeters) - 54cm (centimeters) - 57cm (centimeters)

Wheels And Breaking System

Bike front tire	700 X 23c Bontrager Race Lite
Bike rear tire	Not Available
Bike wheel size	700c Wheels
Brakeset type	Shimano 105 STI Dual Control With FIT Reach Adjust Levers Cane Creek SCR-3 Brakes
Hubs for disc brakes	Bontrager Race
Rims manufacturer	Bontrager Race
Spoke nipples type	Not Available
Spoke wheel	Wheelset Bontrager

Frame and Body Specs

Frame materials	OCLV 120 Carbon
Frame type	Bonded and monocoque
Handlebar construction	Bontrager FIT VR OS
Handlebar extender	Not Available
Handlebar stem details	Bontrager Race OS
Headset size	1 1/8 (inches) Threadless Aheadset Slimstak

Gearing Specifications

Bicycle chain	Shimano 105
Bottom bracket shell width	Not Available
Bottom bracket type	Shimano 105
Crankset parts and sizes	30/39/50 Teeth Shimano 105
Gear shift levers	Shimano 105 STI Dual Control With FIT Reach Adjust
Rear gear set	12 - 25 Teeth 10-speed

Trek Pilot 5.0 WSD Fork System Data

Derailleur (Front)	Shimano 105
Derailleur (Rear)	Shimano Ultegra
Fork material	Aero Crown Carbon and Alloy Steerer
Fork type	Bontrager Satellite Plus

Other Specs of Trek Pilot 5.0 WSD

Component group sets	Shimano 105
Pedals details	Optional
Rear shock absorber	Not Available
Saddle seat	Bontrager Race FIT CRZ+
Seat post extension	Bontrager Race X Lite Carbon
