Fuji REVEAL 2.0 2011 VS GT SANCTION 1.0 2011 specs comparison
Fuji Reveal 2.0
General Infos| Model | Reveal 2.0 |
| Manufacturer | Fuji |
| Year of production | 2011 |
| Current price | Check price Here ==> |
| Color choice |
-Midnight |
| Sizes |
- Small - medium - large |
| Sizes |
- Small - medium - large |
Wheels And Breaking System
| Bike front tire | 26 X 2.25 (inches) Schwalbe Rocket Ron |
| Bike rear tire | Not Available |
| Bike wheel size | 26 (inches) Wheels |
| Brakeset type | Shimano BL-M575 Hydraulic Levers Shimano M575 Disc Brakes |
| Hubs for disc brakes | Shimano SLX |
| Rims manufacturer | 32-hole Alex TD17 |
| Spoke nipples type | Not Available |
| Spoke wheel | Not Available |
Frame and Body Specs
| Frame materials | Alloy |
| Frame type | TIG-welded |
| Handlebar construction | Oval M-200 Sweep Double Butted Riser |
| Handlebar extender | Optional |
| Handlebar stem details | Oval M-200 RBT Alloy |
| Headset size | 1 1/2 (inches) To 1 1/8 (inches) Fuji MTB |
Gearing Specifications
| Bicycle chain | Shimano HG74 |
| Bottom bracket shell width | Not Available |
| Bottom bracket type | Shimano Press In Bearing System |
| Crankset parts and sizes | 24/32/42 Teeth Shimano SLX Hollowtech II |
| Gear shift levers | Shimano SLX RapidFire |
| Rear gear set | 11 - 36 Teeth 10-speed |
Fuji Reveal 2.0 Fork System Data
| Derailleur (Front) | 34.9 (millimeters) Bottom Swing Top Pull Shimano SLX |
| Derailleur (Rear) | Shimano XT SGS Shadow |
| Fork material | Single |
| Fork type | 140 (millimeters) Travel RockShox Revelation RL Dual Air |
Other Specs of Fuji Reveal 2.0
| Component group sets | Shimano SLX |
| Pedals details | Optional |
| Rear shock absorber | 140 (millimeters) Travel RockShox Monarch RT |
| Saddle seat | Oval M-200 With CroMo Rails |
| Seat post extension | 31.6 (millimeters) Diameter Oval M-200 |

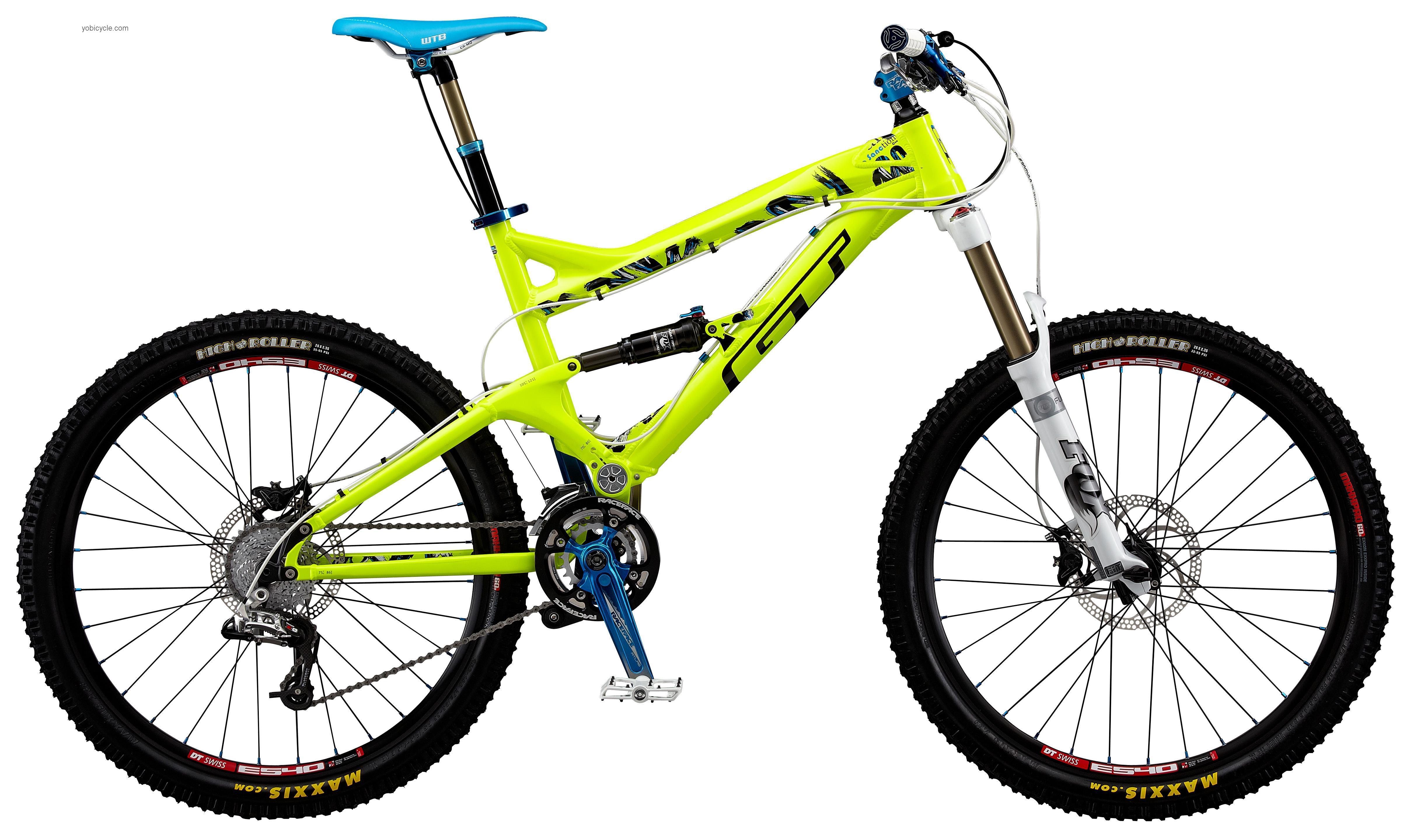

GT Sanction 1.0
General Infos| Model | Sanction 1.0 |
| Manufacturer | GT |
| Year of production | 2011 |
| Current price | Check price Here ==> |
| Color choice |
-Neon yellow |
| Sizes |
- Extra small - Small - Medium - Large |
Wheels And Breaking System
| Bike front tire | 26 X 2.35 Maxxis High Roller |
| Bike rear tire | Not Available |
| Bike wheel size | 26 (inches) Wheels |
| Brakeset type | Formula R1X Levers Formula R1X Disc With 180 (millimeters) Rotor Brakes |
| Hubs for disc brakes | DT Swiss 350 |
| Rims manufacturer | 32-hole DT Swiss E540 |
| Spoke nipples type | Brass |
| Spoke wheel | 1.8/1.6 DT Swiss Competition Stainless |
Frame and Body Specs
| Frame materials | 6061-T6 Aluminum |
| Frame type | Aluminum |
| Handlebar construction | Race Face SIX-C Carbon |
| Handlebar extender | Optional |
| Handlebar stem details | Race Face Atlas AM |
| Headset size | 1 1/8 (inches) Gravity 1/DX Pro |
Gearing Specifications
| Bicycle chain | HG73 |
| Bottom bracket shell width | 73 (millimeters) |
| Bottom bracket type | Race Face X-Type |
| Crankset parts and sizes | 36/22t Teeth Race Face Atlas AM |
| Gear shift levers | SRAM X.9 |
| Rear gear set | 11 - 34 Teeth 9-speed |
GT Sanction 1.0 Fork System Data
| Derailleur (Front) | Shimano SLX |
| Derailleur (Rear) | SRAM X.0 |
| Fork material | Not Available |
| Fork type | 160 (millimeters) Travel Fox Racing Shox 36 Float 160 RLC Fit |
Other Specs of GT Sanction 1.0
| Component group sets | Mountain Mix |
| Pedals details | Slimline Cast |
| Rear shock absorber | 150 (millimeters) Travel Fox Racing Shox Float RP23 BV |
| Saddle seat | WTB Silverado Race SL |
| Seat post extension | Crankbrothers Joplin 4 |
