Gary Fisher MARLIN 1999 VS Raleigh M55 1996 specs comparison

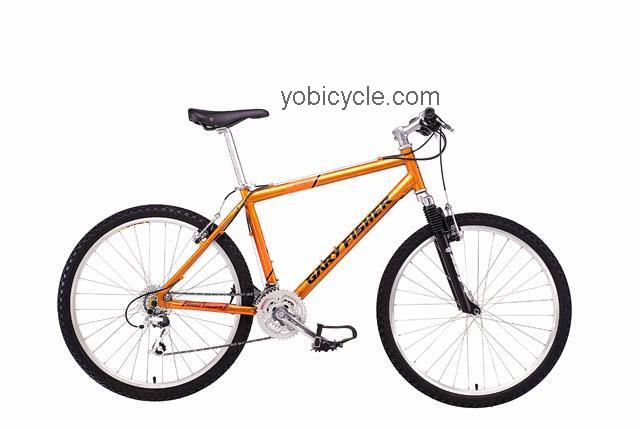

Gary Fisher Marlin

General Infos

Model	Marlin
Manufacturer	Gary Fisher
Year of production	1999
Current price	Check price Here ==>
Color choice	- Saphire Blue -Orange
Sizes	- Extra small - Small - Medium - Large - Extra large
Sizes	- Extra small - Small - Medium - Large - Extra large

Wheels And Breaking System

Bike front tire	26 X 2.00 (inches) Center Ridge All Terrain
Bike rear tire	Not Available
Bike wheel size	26 (inches) Wheels
Brakeset type	Lee Chi LV77E Levers Lee Chi ProMax MV-33 Linear-pull Brakes
Hubs for disc brakes	Rear: Kung Ten W5ER Front: Kung Ten W55F
Rims manufacturer	32-hole Weinmann 519
Spoke nipples type	Brass Nipples
Spoke wheel	2.0 (millimeters) Straight Gauge DT Stainless Steel

Frame and Body Specs

Frame materials	7005 aluminum c
Frame type	TIG-welded
Handlebar construction	Aluminum
Handlebar extender	Optional
Handlebar stem details	Alloy Ahead
Headset size	1 1/8 (inches) Threadless Aheadset SE-1

Gearing Specifications

Bicycle chain	1/2 X 3/32 (inches) KAZ LR900
Bottom bracket shell width	73 (millimeters) English
Bottom bracket type	121 (millimeters) Spindle Shimano BB-CT92E
Crankset parts and sizes	24/34/42 Teeth Shimano Altus
Gear shift levers	SRAM ESP 5.0
Rear gear set	11 - 30 Teeth 8-speed

Gary Fisher Marlin Fork System Data

Derailleur (Front)	Top-pull and bottom Bracket Mount Shimano Altus
Derailleur (Rear)	SRAM ESP 5.0
Fork material	Triple-clamp Crown Aluminum and chromoly
Fork type	2.5 (inches) Travel RST 281

Other Specs of Gary Fisher Marlin

Component group sets	Mountain Mix
Pedals details	Resin With Clips & Straps
Rear shock absorber	Not Available
Saddle seat	Fisher Ultra Dual
Seat post extension	27.2 (millimeters) Diameter Aluminum Micro-adjust

Raleigh M55

General Infos

Model	M55
Manufacturer	Raleigh
Year of production	1996
Current price	Check price Here ==>
Color choice	-Green
Sizes	- 16.5 (inches) - 18 (inches) - 20 (inches) - 22 (inches)

Wheels And Breaking System

Bike front tire	26 X 2.10 (inches) Kenda K-850
Bike rear tire	Not Available
Bike wheel size	26 (inches) Wheels
Brakeset type	Lee Chi 319A Levers Shimano Altus Brakes
Hubs for disc brakes	Not Available
Rims manufacturer	36-hole Vuelta Strong
Spoke nipples type	Brass Nipples
Spoke wheel	2.0 (millimeters) Straight Gauge Chung Nan Stainless Steel

Frame and Body Specs

Frame materials	Oversize Chromoly
Frame type	TIG-welded Steel
Handlebar construction	Hsin Lung MTB 110
Handlebar extender	Optional
Handlebar stem details	Hsin Lung MTS 369
Headset size	1 (inches) Victor VP-H67

Gearing Specifications

Bicycle chain	1/2 X 3/32 (inches) KMC IG-31
Bottom bracket shell width	68 (millimeters) English
Bottom bracket type	110 (millimeters) Spindle Shimano BB-LP26
Crankset parts and sizes	24/34/42 Teeth Shimano Alivio
Gear shift levers	Grip Shift MRX-100
Rear gear set	11 - 28 Teeth 7-speed

Raleigh M55 Fork System Data

Derailleur (Front)	Top-pull and clamp-on 28.6 (millimeters) Shimano AceraX Top-swing
Derailleur (Rear)	Shimano Alivio
Fork material	Triple-clamp Crown Aluminum and chromoly
Fork type	SR DuoTrack 7006

Other Specs of Raleigh M55

Component group sets	Shimano Alivio
Pedals details	Wellgo LU-943
Rear shock absorber	Not Available
Saddle seat	Sella Stratos HyperMTB
Seat post extension	26.0 (millimeters) Diameter Lee Chi SP-204 Alloy
