Gary Fisher SUGAR 293 2006 VS GT LTS-4 1997 specs comparison

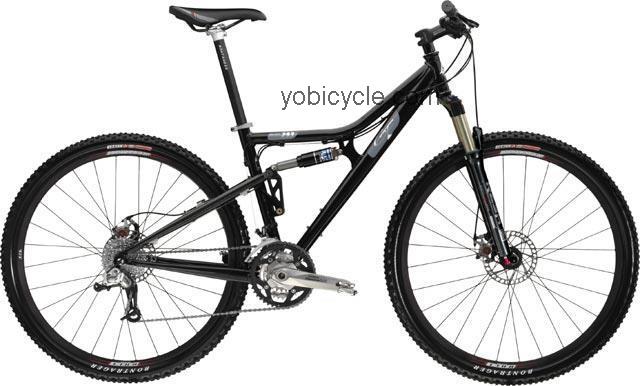

Gary Fisher Sugar 293
General Infos| Model | Sugar 293 |
| Manufacturer | Gary Fisher |
| Year of production | 2006 |
| Current price | Check price Here ==> |
| Color choice |
-Not found |
| Sizes |
- SM (16) (inches) - MD (17.5) (inches) - LG (inches) - XL (inches) |
| Sizes |
- SM (16) (inches) - MD (17.5) (inches) - LG (inches) - XL (inches) |
Wheels And Breaking System
| Bike front tire | 29 X 2.20 (inches) Bontrager ACX |
| Bike rear tire | Not Available |
| Bike wheel size | 29 (inches) Wheels |
| Brakeset type | Avid FR-5 Levers Avid BB7 Brakes |
| Hubs for disc brakes | Bontrager Race Disc |
| Rims manufacturer | Bontrager Race Disc |
| Spoke nipples type | Not Available |
| Spoke wheel | Not Available |
Frame and Body Specs
| Frame materials | Platinum Series ZR9000 Aluminum |
| Frame type | TIG-welded |
| Handlebar construction | Bontrager Select OS |
| Handlebar extender | Optional |
| Handlebar stem details | Bontrager Select OS |
| Headset size | 1 1/8 (inches) Threadless Aluminum |
Gearing Specifications
| Bicycle chain | 1/2 X 3/32 (inches) Shimano CN-HG53 |
| Bottom bracket shell width | Not Available |
| Bottom bracket type | ISIS GigaPipe |
| Crankset parts and sizes | Shimano Deore LX |
| Gear shift levers | SRAM X-7 Trigger |
| Rear gear set | 11 - 34 Teeth 9-speed |
Gary Fisher Sugar 293 Fork System Data
| Derailleur (Front) | Shimano Deore |
| Derailleur (Rear) | SRAM X.9 |
| Fork material | Single Crown Aluminum and magnesium |
| Fork type | 80 (millimeters) Travel RockShox Reba Race Dual Air 29 |
Other Specs of Gary Fisher Sugar 293
| Component group sets | Mountain Mix |
| Pedals details | Shimano PD-M520 |
| Rear shock absorber | 4 (inches) Travel Fox Float R |
| Saddle seat | Bontrager Race Lux |
| Seat post extension | Bontrager Select |
GT LTS-4
General Infos| Model | LTS-4 |
| Manufacturer | GT |
| Year of production | 1997 |
| Current price | Check price Here ==> |
| Color choice |
- black -Ball burnished |
| Sizes |
- 14.5 (inches) - 16 (inches) - 18 (inches) - 20 (inches) |
Wheels And Breaking System
| Bike front tire | 26 X 2.10 (inches) WTB VelociRaptor |
| Bike rear tire | Not Available |
| Bike wheel size | 26 (inches) Wheels |
| Brakeset type | Shimano Deore LX Levers Shimano Deore LX V-Brake Brakes |
| Hubs for disc brakes | Rear: Shimano STX-RC Front: Shimano Alivio |
| Rims manufacturer | 32-hole Weinmann Zac 19 |
| Spoke nipples type | Brass Nipples |
| Spoke wheel | 2.0 (millimeters) Straight Gauge Stainless Steel |
Frame and Body Specs
| Frame materials | 7005 aluminum c |
| Frame type | Welded |
| Handlebar construction | Kore Lite |
| Handlebar extender | Optional |
| Handlebar stem details | Aluminum |
| Headset size | 1 1/8 (inches) Threadless Tioga |
Gearing Specifications
| Bicycle chain | 1/2 X 3/32 (inches) Shimano CN-IG31 |
| Bottom bracket shell width | 73 (millimeters) English |
| Bottom bracket type | Shimano |
| Crankset parts and sizes | 22/32/42 Teeth SR Apex 350 |
| Gear shift levers | Shimano STX-RC RapidFire SL |
| Rear gear set | 11 - 30 Teeth 8-speed |
GT LTS-4 Fork System Data
| Derailleur (Front) | Bottom-pull and clamp-on 31.8 (millimeters) Shimano STX Top-swing |
| Derailleur (Rear) | Shimano STX-RC |
| Fork material | Triple-clamp Crown Magnesium |
| Fork type | Rock Shox Indy C |
Other Specs of GT LTS-4
| Component group sets | Shimano STX-RC |
| Pedals details | Aluminum Body With Clips & Straps Steel Cage |
| Rear shock absorber | GT Elastomer |
| Saddle seat | WTB SST |
| Seat post extension | 26.8 (millimeters) Diameter Aluminum Micro-adjust |
