Giant ATX 990 1997 VS Haro V20 2006 specs comparison
Giant ATX 990
General Infos| Model | ATX 990 |
| Manufacturer | Giant |
| Year of production | 1997 |
| Current price | Check price Here ==> |
| Color choice |
-Yellow with red swingarm |
| Sizes |
- Large - medium - small |
| Sizes |
- Large - medium - small |
Wheels And Breaking System
| Bike front tire | Rear: 26 X 1.95 (inches) Tioga Psycho TT Kevlar Front: 26 X 1.95 (inches) Tioga Edge Kevlar |
| Bike rear tire | Not Available |
| Bike wheel size | 26 (inches) Wheels |
| Brakeset type | Magura Race-Line Levers Magura Race-Line HS33 Brakes |
| Hubs for disc brakes | Rear: Shimano Deore LX Front: Shimano Deore LX Suspension |
| Rims manufacturer | 32-hole Mavic 220 |
| Spoke nipples type | Brass Nipples |
| Spoke wheel | 1.8 (millimeters) Double Butted DT Competition Stainless Steel |
Frame and Body Specs
| Frame materials | Butted Giant CU92 Aluminum |
| Frame type | TIG-welded |
| Handlebar construction | Aluminum |
| Handlebar extender | Optional |
| Handlebar stem details | Direct Connect Aluminum |
| Headset size | 1 1/8 (inches) Threadless Dia-Compe Kontak Aheadset SA-2 |
Gearing Specifications
| Bicycle chain | 1/2 X 3/32 (inches) Sachs SC-40 |
| Bottom bracket shell width | 68 (millimeters) English |
| Bottom bracket type | 107 (millimeters) Spindle Shimano BB-UN72 |
| Crankset parts and sizes | 22/32/42 Teeth Shimano Deore LX |
| Gear shift levers | Grip Shift SRT-800 X-Ray |
| Rear gear set | 11 - 28 Teeth 8-speed |
Giant ATX 990 Fork System Data
| Derailleur (Front) | Top-pull and clamp-on 35.0 (millimeters) Shimano Deore XT Top-swing |
| Derailleur (Rear) | Shimano Deore XT SGS |
| Fork material | Triple-clamp Crown Magnesium |
| Fork type | Rock Shox Judy XC |
Other Specs of Giant ATX 990
| Component group sets | Shimano Deore XT and LX |
| Pedals details | Wellgo WPD-701 With Titanium Axle Clipless |
| Rear shock absorber | 4.0 (inches) Travel Rock Shox Coupe Deluxe |
| Saddle seat | Selle Royal With Chromoly Rails |
| Seat post extension | 30.8 (millimeters) Diameter Kalloy SP-363 |

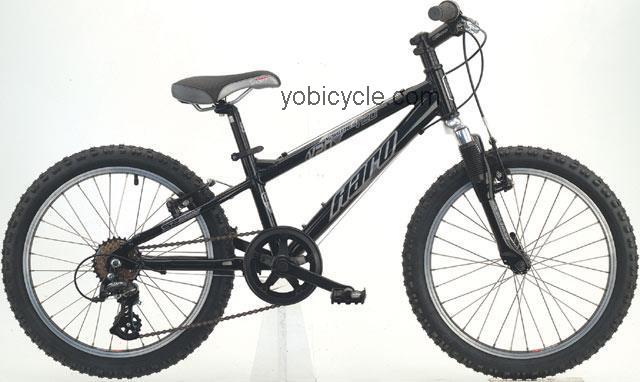

Haro V20
General Infos| Model | V20 |
| Manufacturer | Haro |
| Year of production | 2006 |
| Current price | Check price Here ==> |
| Color choice |
- Black -Silver and Candy Blue |
| Sizes |
- 10 (inches) |
Wheels And Breaking System
| Bike front tire | 26 X 2.10 (inches) Kenda Kinetics |
| Bike rear tire | Not Available |
| Bike wheel size | 26 (inches) Wheels |
| Brakeset type | Tektro Alloy Levers Tektro Linear-pull Brakes |
| Hubs for disc brakes | Formula Aluminum |
| Rims manufacturer | 36-hole Aluminum |
| Spoke nipples type | Not Available |
| Spoke wheel | 14ga. Straight Gauge Stainless Steel |
Frame and Body Specs
| Frame materials | 6061 T6 Aluminum |
| Frame type | TIG-welded |
| Handlebar construction | Riser |
| Handlebar extender | Optional |
| Handlebar stem details | Aluminum Threadless |
| Headset size | 1 1/8 (inches) Threadless Aheadset OS |
Gearing Specifications
| Bicycle chain | Shimano CN-HG50 |
| Bottom bracket shell width | Not Available |
| Bottom bracket type | TH Sealed Bearing Cartridge |
| Crankset parts and sizes | 40 Teeth Aluminum |
| Gear shift levers | SRAM MRX |
| Rear gear set | 14 - 28 Teeth 6-speed |
Haro V20 Fork System Data
| Derailleur (Front) | Not Available |
| Derailleur (Rear) | Shimano Altus |
| Fork material | Single Crown Aluminum |
| Fork type | 30 (millimeters) Travel SR Suntour M2000 |
Other Specs of Haro V20
| Component group sets | Mountain Mix |
| Pedals details | ATB Nylon Body and steel Cage |
| Rear shock absorber | VNot Applicable |
| Saddle seat | Selle Comfort Dual Density Jr. Size |
| Seat post extension | 27.2 (millimeters) Diameter Aluminum Micro-adjust |
