Giant OCR 3 2004 VS Schwinn PASSAGE 1999 specs comparison

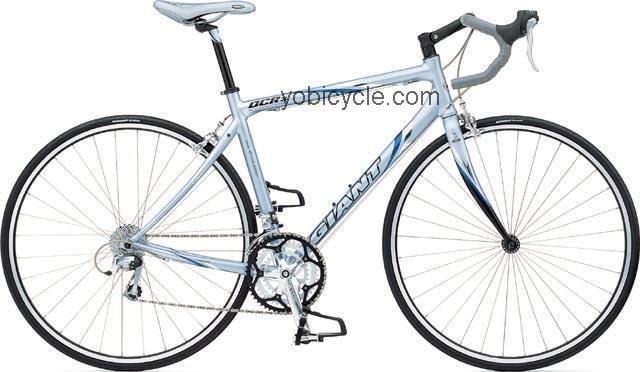

Giant OCR 3
General Infos| Model | OCR 3 |
| Manufacturer | Giant |
| Year of production | 2004 |
| Current price | Check price Here ==> |
| Color choice | - Slate Blue-Black |
| Sizes | - Extra small - Small - Medium - Large - Extra large |
| Sizes | - Extra small - Small - Medium - Large - Extra large |
Wheels And Breaking System
| Bike front tire | 700 X 25c Michelin Dynamic |
| Bike rear tire | Not Available |
| Bike wheel size | 700c Wheels |
| Brakeset type | Shimano Sora STI Dual Control LeversTektro Dual Pivot Brakes |
| Hubs for disc brakes | Q and RAluminum |
| Rims manufacturer | 32-holeAlex |
| Spoke nipples type | Brass Nipples |
| Spoke wheel | 14ga. Straight GaugeStainless Steel |
Frame and Body Specs
| Frame materials | Aluxx SL Aluminum |
| Frame type | TIG-welded |
| Handlebar construction | Anatomic Drop Bar |
| Handlebar extender | Optional |
| Handlebar stem details | Giant Adjustable Alloy |
| Headset size | 1 1/8 (inches) Threadless Integrated |
Gearing Specifications
| Bicycle chain | 1/2 X 3/32 (inches) |
| Bottom bracket shell width | 68 (millimeters) English |
| Bottom bracket type | Sealed Cartridge |
| Crankset parts and sizes | 30/42/52 TeethTruVativ Touro |
| Gear shift levers | Shimano Sora STI Dual Control |
| Rear gear set | 12 - 26 Teeth8-speed |
Giant OCR 3 Fork System Data
| Derailleur (Front) | Braze-onShimano Sora |
| Derailleur (Rear) | Shimano Sora GS |
| Fork material | Aero CrownCarbon Fiber Composite With Aluminum Steerer |
| Fork type | Giant |
Other Specs of Giant OCR 3
| Component group sets | Road Mix Triple |
| Pedals details | Resin BodySteel Cage |
| Rear shock absorber | Not Available |
| Saddle seat | Selle Royal Viper |
| Seat post extension | 27.2 (millimeters) DiameterAluminum Micro-adjust |
Schwinn Passage
General Infos| Model | Passage |
| Manufacturer | Schwinn |
| Year of production | 1999 |
| Current price | Check price Here ==> |
| Color choice | -Metallic Orange |
| Sizes | - 48cm (centimeters)- 50cm (centimeters)- 52cm (centimeters)- 54cm (centimeters)- 56cm (centimeters)- 58cm (centimeters)- 60cm (centimeters)- 62cm (centimeters) |
Wheels And Breaking System
| Bike front tire | 700 X 23c Schwinn Natural 66 |
| Bike rear tire | Not Available |
| Bike wheel size | 700c Wheels |
| Brakeset type | Shimano RSX STI LeversShimano RSX Dual Pivot Brakes |
| Hubs for disc brakes | Q and R Rear: Shimano AceraXFront: Formula Aluminum |
| Rims manufacturer | 32-holeMavic CXP 11 |
| Spoke nipples type | Brass Nipples |
| Spoke wheel | 2.0 (millimeters) Straight GaugeStainless Steel |
Frame and Body Specs
| Frame materials | 7005 Aluminum With Replaceable Derailleur Hanger |
| Frame type | TIG-welded |
| Handlebar construction | Drop StyleAluminum |
| Handlebar extender | Not Available |
| Handlebar stem details | Chromoly |
| Headset size | 1 (inches) Tioga SE-2 |
Gearing Specifications
| Bicycle chain | 1/2 X 3/32 (inches) |
| Bottom bracket shell width | Not Available |
| Bottom bracket type | Not Available |
| Crankset parts and sizes | 32/42/52 TeethShimano RSX |
| Gear shift levers | Shimano RSX STI Dual Control |
| Rear gear set | 11 - 24 Teeth8-speed |
Schwinn Passage Fork System Data
| Derailleur (Front) | Shimano RSX Top-swing |
| Derailleur (Rear) | Shimano RSX GS |
| Fork material | Unicrown CrownAluminum |
| Fork type | Schwinn |
Other Specs of Schwinn Passage
| Component group sets | Shimano RSX Triple |
| Pedals details | Aluminum Body With Clips & StrapsSteel Cage |
| Rear shock absorber | Not Available |
| Saddle seat | Schwinn Road |
| Seat post extension | Kalloy SP-339 |
