GT LTS-5 1997 VS Brodie DERLECT 2008 specs comparison

GT LTS-5

General Infos

Model	LTS-5
Manufacturer	GT
Year of production	1997
Current price	Check price Here ==>
Color choice	- red and yellow -Blue and yellow
Sizes	- 14.5 (inches) - 16 (inches) - 18 (inches) - 20 (inches)
Sizes	- 14.5 (inches) - 16 (inches) - 18 (inches) - 20 (inches)

Wheels And Breaking System

Bike front tire	26 X 2.10 (inches) WTB VelociRaptor
Bike rear tire	Not Available
Bike wheel size	26 (inches) Wheels
Brakeset type	Shimano Alivio Levers Shimano Alivio M-System Brakes
Hubs for disc brakes	Shimano AceraX
Rims manufacturer	32-hole Weinmann Zac 19
Spoke nipples type	Brass Nipples
Spoke wheel	2.0 (millimeters) Straight Gauge Stainless Steel

Frame and Body Specs

Frame materials	Chromoly
Frame type	Welded
Handlebar construction	Kore Lite
Handlebar extender	Optional
Handlebar stem details	Aluminum
Headset size	1 1/8 (inches) Threadless Tioga

Gearing Specifications

Bicycle chain	1/2 X 3/32 (inches) Shimano CN-IG31
Bottom bracket shell width	73 (millimeters) English
Bottom bracket type	110 (millimeters) Spindle Shimano BB-LP26
Crankset parts and sizes	24/34/42 Teeth Shimano Alivio
Gear shift levers	Shimano Alivio MC12-C RapidFire Plus
Rear gear set	11 - 30 Teeth 7-speed

GT LTS-5 Fork System Data

Derailleur (Front)	Bottom-pull and clamp-on 28.6 (millimeters) Shimano Alivio Top-swing
Derailleur (Rear)	Shimano STX
Fork material	Triple-clamp Crown Aluminum and chromoly
Fork type	RST 381M

Other Specs of GT LTS-5

Component group sets	Shimano Alivio and AceraX
Pedals details	Resin Body With Clips & Straps Steel Cage
Rear shock absorber	GT Elastomer
Saddle seat	Hollow Chromoly Rails WTB SST
Seat post extension	26.8 (millimeters) Diameter Aluminum Micro-adjust

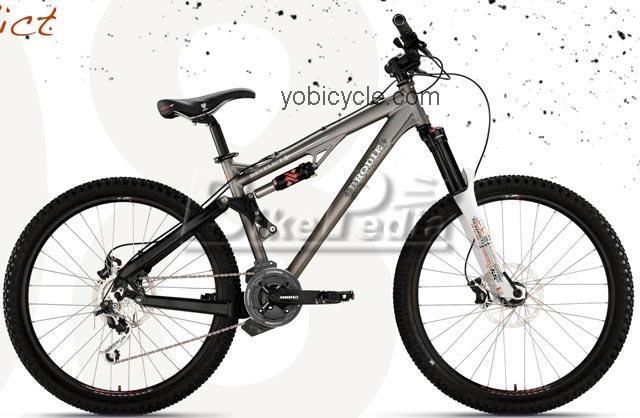

Brodie Derlect

General Infos

Model	Derlect
Manufacturer	Brodie
Year of production	2008
Current price	Check price Here ==>
Color choice	-Granite Grey
Sizes	- Small - medium

Wheels And Breaking System

Bike front tire	Rear: 26 X 2.30 (inches) Kenda Nevagal Front: 26 X 2.50 (inches) Kenda Nevagal
Bike rear tire	Not Available
Bike wheel size	26 (inches) Wheels
Brakeset type	Avid Juicy 3 Levers Avid Juicy 3 With 7 (inches) Rotor Brakes
Hubs for disc brakes	Rear: Shimano M475 Front: KK DH3
Rims manufacturer	32-hole Sun Equalizer 31
Spoke nipples type	Brass
Spoke wheel	14ga. Straight Gauge Stainless Steel

Frame and Body Specs

Frame materials	7005 aluminum c
Frame type	TIG-welded
Handlebar construction	Brodie FR Lo Rise
Handlebar extender	Optional
Handlebar stem details	Brodie DH
Headset size	1 1/8 (inches) TH 855

Gearing Specifications

Bicycle chain	Shimano HG53-9
Bottom bracket shell width	Not Available
Bottom bracket type	TruVativ
Crankset parts and sizes	36 Teeth TruVativ Hussefelt 1.0 BG
Gear shift levers	Shimano Deore
Rear gear set	11 - 32 Teeth 9-speed

Brodie Derlect Fork System Data

Derailleur (Front)	Not Available
Derailleur (Rear)	Shimano XT Shadow
Fork material	Single
Fork type	140 (millimeters) Travel Marzocchi 55 R

Other Specs of Brodie Derlect

Component group sets	Mountain Mix
Pedals details	Wellgo DH Flats
Rear shock absorber	117 (millimeters) Travel RockShox Monarch 3.1
Saddle seat	WTB Pure V Race
Seat post extension	31.6 (millimeters) Diameter Brodie 2-bolt
