Haro ICS 1.0 2001 VS Marin PIONEER TRAIL WOMENS 2008 specs comparison
Haro ICS 1.0
General Infos| Model | ICS 1.0 |
| Manufacturer | Haro |
| Year of production | 2001 |
| Current price | Check price Here ==> |
| Color choice |
- Teal -Black |
| Sizes |
- 13.5 (inches) - 15.5 (inches) - 17.5 (inches) - 19.5 (inches) |
| Sizes |
- 13.5 (inches) - 15.5 (inches) - 17.5 (inches) - 19.5 (inches) |
Wheels And Breaking System
| Bike front tire | 26 X 1.95 (inches) Kenda Konquest |
| Bike rear tire | Not Available |
| Bike wheel size | 26 (inches) Wheels |
| Brakeset type | Shimano BL-M420 Levers Shimano M420 V-Brake Brakes |
| Hubs for disc brakes | Q and R Aluminum |
| Rims manufacturer | 32-hole Weinmann 519 |
| Spoke nipples type | Brass Nipples |
| Spoke wheel | 2.0 (millimeters) Straight Gauge Stainless Steel |
Frame and Body Specs
| Frame materials | 7005 T6 Aluminum With Replaceable Derailleur Hanger |
| Frame type | TIG-welded |
| Handlebar construction | Haro Double Wide Aluminum |
| Handlebar extender | Optional |
| Handlebar stem details | Aluminum Ahead Type |
| Headset size | 1 1/8 (inches) Threadless WTB Momentum Comp ST |
Gearing Specifications
| Bicycle chain | 1/2 X 3/32 (inches) Shimano CN-HG50 |
| Bottom bracket shell width | 68 (millimeters) English |
| Bottom bracket type | 110.5 (millimeters) Spindle Shimano BB-CT92 |
| Crankset parts and sizes | 22/32/42 Teeth Shimano Tourney TY-40 |
| Gear shift levers | Shimano Revo |
| Rear gear set | 14 - 34 Teeth 7-speed Freewheel |
Haro ICS 1.0 Fork System Data
| Derailleur (Front) | Bottom-pull and clamp-on 31.8 (millimeters) Shimano TY-10 |
| Derailleur (Rear) | Shimano MR-40 |
| Fork material | Triple-clamp Crown Aluminum |
| Fork type | 2.4 (inches) Travel RST Omni CL |
Other Specs of Haro ICS 1.0
| Component group sets | Mountain Mix |
| Pedals details | Resin |
| Rear shock absorber | Not Available |
| Saddle seat | Haro Selle Comfort |
| Seat post extension | 27.2 (millimeters) Diameter Aluminum Micro-adjust |

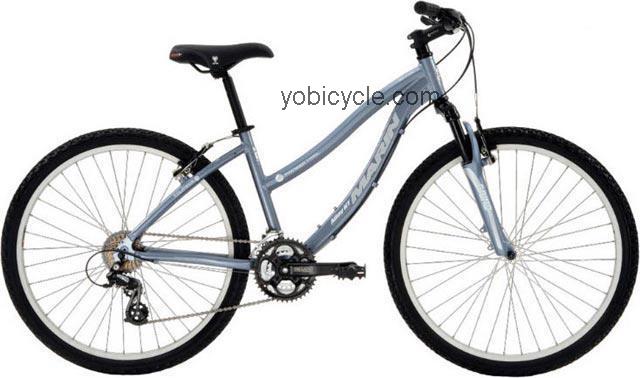

Marin Pioneer Trail Womens
General Infos| Model | Pioneer Trail Womens |
| Manufacturer | Marin |
| Year of production | 2008 |
| Current price | Check price Here ==> |
| Color choice |
- Gloss Aqua - Matte Smoke -Gloss Denim |
| Sizes |
- Womens 15 (inches) |
Wheels And Breaking System
| Bike front tire | 26 X 1.95 (inches) Kenda All Condition |
| Bike rear tire | Not Available |
| Bike wheel size | 26 (inches) Wheels |
| Brakeset type | Shimano EF-50 Levers Forged Alloy Linear Pull Brakes |
| Hubs for disc brakes | Alloy Double Sealed QR |
| Rims manufacturer | 36-hole Alloy |
| Spoke nipples type | Not Available |
| Spoke wheel | 15ga. WTB Stainless Steel |
Frame and Body Specs
| Frame materials | 6061 aluminum c |
| Frame type | TIG-welded |
| Handlebar construction | Double Butted 6061 Alloy |
| Handlebar extender | Optional |
| Handlebar stem details | Forged Alloy OS |
| Headset size | 1 1/8 (inches) Ritchey LB |
Gearing Specifications
| Bicycle chain | Shimano UG51 |
| Bottom bracket shell width | Not Available |
| Bottom bracket type | Truvativ Sealed Cartridge |
| Crankset parts and sizes | 24/34/42 Teeth TruVativ X-Flow 3.0 |
| Gear shift levers | Shimano EF-50 EZ Fire Integrated |
| Rear gear set | 14 - 28 Teeth 7-speed |
Marin Pioneer Trail Womens Fork System Data
| Derailleur (Front) | Shimano C050 |
| Derailleur (Rear) | Shimano Altus |
| Fork material | Single |
| Fork type | 100 (millimeters) Travel Spinner Grind OS 2 |
Other Specs of Marin Pioneer Trail Womens
| Component group sets | Mountain Mix |
| Pedals details | Composite |
| Rear shock absorber | Not Available |
| Saddle seat | WTB Speed V Sport LE |
| Seat post extension | 27.2 (millimeters) Diameter Alloy Micro Adjust |
