Haro WERX 5 2005 VS Ibis SZAZBO (02) 1996 specs comparison

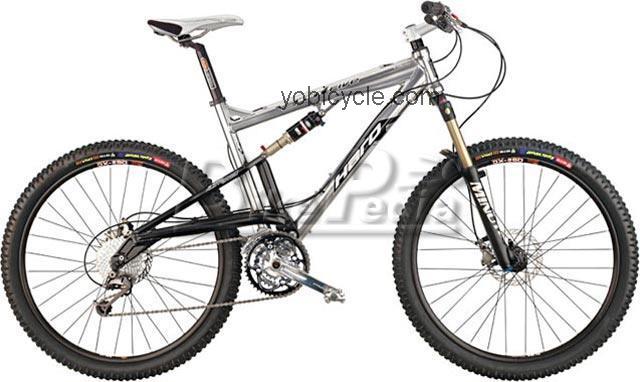

Haro Werx 5
General Infos| Model | Werx 5 |
| Manufacturer | Haro |
| Year of production | 2005 |
| Current price | Check price Here ==> |
| Color choice |
-Not found |
| Sizes |
- Not available |
| Sizes |
- Not available |
Wheels And Breaking System
| Bike front tire | 26 X 2.10 (inches) WTB ExiWolf Team XC |
| Bike rear tire | Not Available |
| Bike wheel size | 26 (inches) Wheels |
| Brakeset type | Avid Juicy 5 Levers Avid Juicy 5 Brakes |
| Hubs for disc brakes | Pivit 9 |
| Rims manufacturer | 32-hole Sun Rims DS1-XC |
| Spoke nipples type | Brass Nipples |
| Spoke wheel | 14/15ga. Double-butted DT Swiss Stainless Steel |
Frame and Body Specs
| Frame materials | 6061 T6 Aluminum |
| Frame type | TIG-welded |
| Handlebar construction | TruVativ Team Riser |
| Handlebar extender | Optional |
| Handlebar stem details | TruVativ Team 3-D |
| Headset size | 1 1/8 (inches) Integrated FSA Orbit ZS |
Gearing Specifications
| Bicycle chain | 1/2 X 3/32 (inches) Shimano CN-HG73 |
| Bottom bracket shell width | Not Available |
| Bottom bracket type | Giga X Pipe |
| Crankset parts and sizes | 22/32/44 Teeth TruVativ Stylo Team GXP |
| Gear shift levers | Shimano Deore XT Rapidfire |
| Rear gear set | 11 - 34 Teeth 9-speed |
Haro Werx 5 Fork System Data
| Derailleur (Front) | Shimano Deore LX |
| Derailleur (Rear) | Shimano XTR |
| Fork material | Single Crown Aluminum |
| Fork type | 130 (millimeters) Manitou Minute 2:00 |
Other Specs of Haro Werx 5
| Component group sets | Mountain Mix |
| Pedals details | Shimano PD-M540 |
| Rear shock absorber | 4.5 (inches) Travel Manitou Swinger Air 3-Way |
| Saddle seat | Pivit Race SL Ti |
| Seat post extension | 30.9 (millimeters) Diameter TruVativ Team |
Ibis Szazbo (02)
General Infos| Model | Szazbo (02) |
| Manufacturer | Ibis |
| Year of production | 1996 |
| Current price | Check price Here ==> |
| Color choice |
-Dark blue |
| Sizes |
- Large - medium - small |
Wheels And Breaking System
| Bike front tire | 26 X 2.00 (inches) IRC PiranhaPro-K |
| Bike rear tire | Not Available |
| Bike wheel size | 26 (inches) Wheels |
| Brakeset type | Shimano Deore XT Levers Shimano Deore XT M-System Brakes |
| Hubs for disc brakes | Not Available |
| Rims manufacturer | 32-hole Mavic 238 |
| Spoke nipples type | Alloy Nipples |
| Spoke wheel | 2.0 (millimeters) Double Butted Wheelsmith Stainless Steel |
Frame and Body Specs
| Frame materials | Double-butted Heat-treated 6061 T6 Aluminum |
| Frame type | Welded Aluminum |
| Handlebar construction | Answer Taperlite |
| Handlebar extender | Optional |
| Handlebar stem details | Ibis |
| Headset size | 1 1/8 (inches) Threadless Dia-Compe Kontak Aheadset DL-2 |
Gearing Specifications
| Bicycle chain | 1/2 X 3/32 (inches) Shimano CN-IG70 |
| Bottom bracket shell width | 73 (millimeters) English |
| Bottom bracket type | 107 (millimeters) Spindle Shimano BB-UN71 |
| Crankset parts and sizes | 22/32/44 Teeth Shimano Deore XT |
| Gear shift levers | Shimano Deore XT RapidFire SL |
| Rear gear set | 11 - 28 Teeth 8-speed |
Ibis Szazbo (02) Fork System Data
| Derailleur (Front) | Top-pull and clamp-on 35.0 (millimeters) Shimano Deore XT Top-swing |
| Derailleur (Rear) | Shimano Deore XT GS |
| Fork material | Triple-clamp Crown Aluminum and magnesium |
| Fork type | Rock Shox Judy SL |
Other Specs of Ibis Szazbo (02)
| Component group sets | Shimano Deore XT |
| Pedals details | Optional |
| Rear shock absorber | 5.0 (inches) Travel Fox Alps-4 |
| Saddle seat | Selle San Marco Concor Lite |
| Seat post extension | 28.6 (millimeters) Diameter American Classic Hot Rod |
