HP Velotechnik SPEEDMACHINE 2002 VS BikeE ROAD E AT21 1998 specs comparison
HP Velotechnik Speedmachine
General Infos| Model | Speedmachine |
| Manufacturer | HP Velotechnik |
| Year of production | 2002 |
| Current price | Check price Here ==> |
| Color choice |
- Red - Silver -Midnight Blue |
| Sizes |
- Rider can adjust manually |
| Sizes |
- Rider can adjust manually |
Wheels And Breaking System
| Bike front tire | Rear: 26 X 1.00 (inches) Continental Grand Prix Front: 20 X 1.00 (inches) Continental Grand Prix |
| Bike rear tire | Not Available |
| Bike wheel size | Rear: 26 (inches) Wheels Front: 20 (inches) |
| Brakeset type | Magura Clara Levers Magura Clara Hydraulic Disc Brakes |
| Hubs for disc brakes | Quando Aluminum Disc Q and R |
| Rims manufacturer | 36-hole Alex DA-16 |
| Spoke nipples type | Brass Nipples |
| Spoke wheel | 14ga. Straight Gauge DT Stainless Steel |
Frame and Body Specs
| Frame materials | 7005 T6 Aluminum With Chromoly Rear |
| Frame type | TIG-welded |
| Handlebar construction | HP Velotechnik |
| Handlebar extender | Optional |
| Handlebar stem details | HP Velotechnik |
| Headset size | 1 1/8 (inches) Threadless Aluminum Sealed Cartridge |
Gearing Specifications
| Bicycle chain | 1/2 X 3/32 (inches) SRAM PC-59 |
| Bottom bracket shell width | 68 (millimeters) English |
| Bottom bracket type | Kinex Sealed Cartridge |
| Crankset parts and sizes | 30/42/52 Teeth Dotek Pro Aluminum |
| Gear shift levers | SRAM Attack |
| Rear gear set | 11 - 32 Teeth 9-speed |
HP Velotechnik Speedmachine Fork System Data
| Derailleur (Front) | Shimano 105 Triple |
| Derailleur (Rear) | Shimano XT SGS |
| Fork material | Unicrown Crown 4130 Chromoly |
| Fork type | 2.0 (inches) Travel HP Velotechnik Concept |
Other Specs of HP Velotechnik Speedmachine
| Component group sets | Recumbent Mix |
| Pedals details | Wellgo WPD-95B Clipless |
| Rear shock absorber | 2.4 (inches) Travel DNM DV-22 |
| Saddle seat | HP Velotechnik |
| Seat post extension | Not Available |

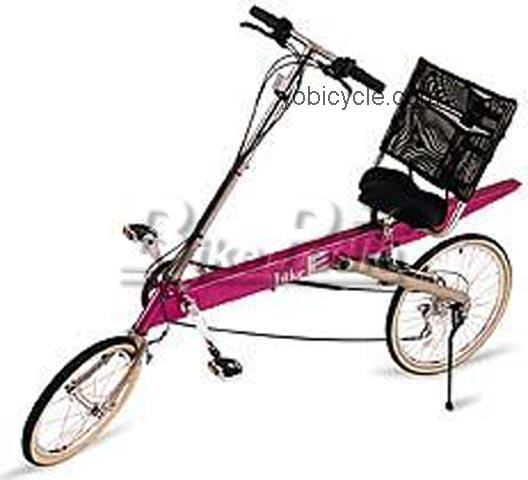

BikeE Road E AT21
General Infos| Model | Road E AT21 |
| Manufacturer | BikeE |
| Year of production | 1998 |
| Current price | Check price Here ==> |
| Color choice |
- blue anodized - red anodized - violet anodized -Black anodized |
| Sizes |
- Rider can adjust manually |
Wheels And Breaking System
| Bike front tire | Rear: 20 X 1 3/8 (inches) Primo HP Front: 16 X 1 3/8 (inches) Primo HP |
| Bike rear tire | Not Available |
| Bike wheel size | Rear: 20 (inches) Wheels Front: 16 (inches) |
| Brakeset type | Tektro RBP-366A Levers Chang Star 877AT Front and Shimano Deore LX V-Brake Rear Brakes |
| Hubs for disc brakes | Rear: Sachs Centera Front: Shimano STX |
| Rims manufacturer | 16-hole and 36-hole Sun Rims M14A |
| Spoke nipples type | Brass Nipples |
| Spoke wheel | 2.0 (millimeters) Straight Gauge Sapim Stainless Steel |
Frame and Body Specs
| Frame materials | 6005 T5 Box Section Aluminum |
| Frame type | TIG-welded |
| Handlebar construction | BikeE |
| Handlebar extender | Not Available |
| Handlebar stem details | Not Available |
| Headset size | 1 1/4 (inches) Threadless Aheadset Kontak SA-2 |
Gearing Specifications
| Bicycle chain | 1/2 X 3/32 (inches) Shimano CN-UG50 |
| Bottom bracket shell width | 68 (millimeters) English |
| Bottom bracket type | 124.5 (millimeters) Spindle Shimano BB-UN52 |
| Crankset parts and sizes | 46 Teeth Dotek Aluminum |
| Gear shift levers | Sachs Power Grip Plus |
| Rear gear set | 11 - 28 Teeth 7-speed |
BikeE Road E AT21 Fork System Data
| Derailleur (Front) | Not Available |
| Derailleur (Rear) | Sachs Centera |
| Fork material | Sloping Crown 4130 Chromoly |
| Fork type | BikeE |
Other Specs of BikeE Road E AT21
| Component group sets | Sachs Centera |
| Pedals details | Victor VP-988 |
| Rear shock absorber | 2.5 (inches) Travel Cane Creek AD-5 |
| Saddle seat | Mesh Back Stainless Steel Rail BikeE Contour Custom |
| Seat post extension | Not Available |
