Ibis MOJO SL XX 2011 VS Diamondback MISSION 3 2007 specs comparison

Ibis Mojo SL XX
General InfosModel | Mojo SL XX |
Manufacturer | Ibis |
Year of production | 2011 |
Current price | Check price Here ==> |
Color choice |
- Eddy Orange - Nuclear Pesto - Trans Blue - White -Matte Clear |
Sizes |
- Small - Medium - Large - X-Large |
Sizes |
- Small - Medium - Large - X-Large |
Wheels And Breaking System
Bike front tire | Rear: 26 X 2.4 (inches) WTB Mutano Race Front: 26 X 2.3 (inches) WTB Weirwolf Race |
Bike rear tire | Not Available |
Bike wheel size | 26 (inches) Wheels |
Brakeset type | Formula R1 Levers Formula R1 180 (millimeters) Front and Formula R1 160 (millimeters) Rear Brakes |
Hubs for disc brakes | Stans ZTR |
Rims manufacturer | Stan's Crest |
Spoke nipples type | Not Available |
Spoke wheel | Not Available |
Frame and Body Specs
Frame materials | Carbon Fiber |
Frame type | Carbon Monocoque |
Handlebar construction | Easton EC70 XC |
Handlebar extender | Not Available |
Handlebar stem details | Ibis 3D Forged |
Headset size | 1 1/8 (inches) Cane Creek IS3 |
Gearing Specifications
Bicycle chain | Not Available |
Bottom bracket shell width | Not Available |
Bottom bracket type | GXP |
Crankset parts and sizes | 42/28t Or 39/26t Teeth SRAM XX 2.2 |
Gear shift levers | SRAM XX |
Rear gear set | 11 - 36 Teeth 10-speed |
Ibis Mojo SL XX Fork System Data
Derailleur (Front) | SRAM XX Or SRAM X.0 |
Derailleur (Rear) | Sram XX |
Fork material | Single Crown Crown Aluminum and magnesium |
Fork type | 140 (millimeters) Travel Fox Float 140 RLC 15 (millimeters) |
Other Specs of Ibis Mojo SL XX
Component group sets | SRAM XX Mix |
Pedals details | No Pedals |
Rear shock absorber | 140 (millimeters) Travel Fox RP23 |
Saddle seat | WTB Rocket V Ti |
Seat post extension | 31.6 (millimeters) Diameter Easton EC90 SP |

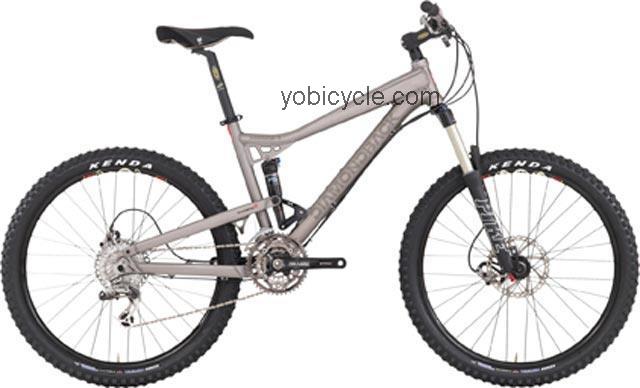

Diamondback Mission 3
General InfosModel | Mission 3 |
Manufacturer | Diamondback |
Year of production | 2007 |
Current price | Check price Here ==> |
Color choice |
-Fog Gray Anodized |
Sizes |
- 15.5 (inches) - 17 (inches) - 19 (inches) |
Wheels And Breaking System
Bike front tire | 26 X 2.30 (inches) Kenda Nevegal Folding |
Bike rear tire | Not Available |
Bike wheel size | 26 (inches) Wheels |
Brakeset type | Hayes HFX-9 Carbon Levers Hayes HFX-9 Brakes |
Hubs for disc brakes | Rear: Alloy Sealed Bearing Disc Cassette With 10 (millimeters) Thru QR Front: Alloy Sealed Bearing Disc With 20 (millimeters) Thru Axle |
Rims manufacturer | 32-hole Sun SOS |
Spoke nipples type | Not Available |
Spoke wheel | 14ga. Stainless Steel |
Frame and Body Specs
Frame materials | Butted and Hydroformed Aluminum |
Frame type | TIG-welded |
Handlebar construction | Easton EC70 Monkeylite XC CNT |
Handlebar extender | Optional |
Handlebar stem details | Easton Vice AM |
Headset size | 1 1/8 (inches) Threadless FSA Zero Stack |
Gearing Specifications
Bicycle chain | SRAM PC-971 |
Bottom bracket shell width | Not Available |
Bottom bracket type | TruVativ GXP |
Crankset parts and sizes | 22/32/44 Teeth TruVativ Stylo SL 3.3 |
Gear shift levers | SRAM X.9 Trigger |
Rear gear set | 11 - 34 Teeth 9-speed |
Diamondback Mission 3 Fork System Data
Derailleur (Front) | Top Swing Shimano Deore |
Derailleur (Rear) | SRAM X.9 |
Fork material | Single Crown Magnesium and aluminum |
Fork type | 140 (millimeters) Rock Shox Pike 454 |
Other Specs of Diamondback Mission 3
Component group sets | SRAM X.9/mix |
Pedals details | MTB Alloy Platform |
Rear shock absorber | 6 (inches) Fox Float RP23 |
Saddle seat | WTB Pure V Sport |
Seat post extension | 30.9 (millimeters) Diameter Easton EA50 |
