Ibis TI MOJO SST 1995 VS Raleigh M40 2003 specs comparison
Ibis Ti Mojo SST
General Infos| Model | Ti Mojo SST |
| Manufacturer | Ibis |
| Year of production | 1995 |
| Current price | Check price Here ==> |
| Color choice |
-Satin |
| Sizes |
- 12 (inches) - 15.5 (inches) - 17 (inches) - 18.5 (inches) - 20 (inches) |
| Sizes |
- 12 (inches) - 15.5 (inches) - 17 (inches) - 18.5 (inches) - 20 (inches) |
Wheels And Breaking System
| Bike front tire | 26 X 2.10 (inches) Ritchey Z-Max SC WCS |
| Bike rear tire | Not Available |
| Bike wheel size | 26 (inches) Wheels |
| Brakeset type | Ritchey Logic Levers Dia-Compe 987 Brakes |
| Hubs for disc brakes | White Industries |
| Rims manufacturer | 32-hole Mavic 217 SUP |
| Spoke nipples type | Alloy Nipples |
| Spoke wheel | 1.8 (millimeters) Double Butted Wheelsmith Stainless Steel |
Frame and Body Specs
| Frame materials | Double-butted Tapered 3Al and 2.5V Titanium |
| Frame type | Welded Titanium |
| Handlebar construction | Ibis Titanium |
| Handlebar extender | Optional |
| Handlebar stem details | Ibis Titanium |
| Headset size | 1 1/8 (inches) King NoThreadSet |
Gearing Specifications
| Bicycle chain | 1/2 X 3/32 (inches) Union 915 |
| Bottom bracket shell width | Not Available |
| Bottom bracket type | Not Available |
| Crankset parts and sizes | 24/34/46 Teeth Kooka |
| Gear shift levers | Grip Shift SRT-800 X-Ray |
| Rear gear set | 12 - 32 Teeth 8-speed |
Ibis Ti Mojo SST Fork System Data
| Derailleur (Front) | Bottom-pull and clamp-on 31.8 (millimeters) Shimano XTR |
| Derailleur (Rear) | Shimano XTR |
| Fork material | Optional |
| Fork type | Optional |
Other Specs of Ibis Ti Mojo SST
| Component group sets | SST |
| Pedals details | Onza HO |
| Rear shock absorber | Not Available |
| Saddle seat | Ritchey Vector |
| Seat post extension | 28.6 (millimeters) Diameter Syncros Pro Series Aluminum |

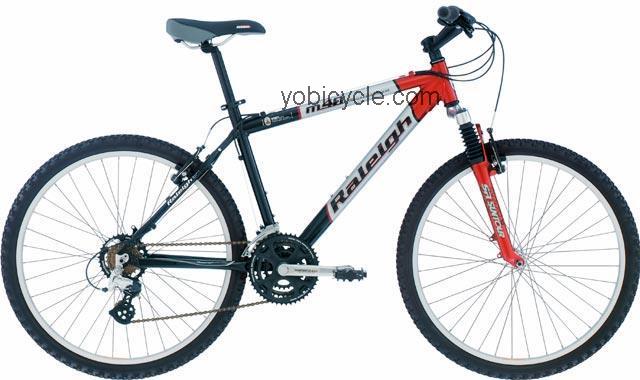

Raleigh M40
General Infos| Model | M40 |
| Manufacturer | Raleigh |
| Year of production | 2003 |
| Current price | Check price Here ==> |
| Color choice |
- Red - Ruby -Blue |
| Sizes |
- 14 (inches) - 16 (inches) - 16 Womens (inches) - 18 (inches) - 19 Womens (inches) - 20 (inches) - 22 (inches) |
Wheels And Breaking System
| Bike front tire | 26 X 1.95 (inches) Kenda K-850 |
| Bike rear tire | Not Available |
| Bike wheel size | 26 (inches) Wheels |
| Brakeset type | Shimano EF-29 Levers Tektro 835A Linear Pull Brakes |
| Hubs for disc brakes | Q and R Aluminum |
| Rims manufacturer | 36-hole Weinmann Aluminum |
| Spoke nipples type | Brass Nipples |
| Spoke wheel | 14ga. Straight Gauge Stainless Steel |
Frame and Body Specs
| Frame materials | 6061 T6 Aluminum |
| Frame type | TIG-welded |
| Handlebar construction | 1.25 (inches) Rise Aluminum |
| Handlebar extender | Optional |
| Handlebar stem details | Aluminum Threadless |
| Headset size | 1 1/8 (inches) Threadless Steel |
Gearing Specifications
| Bicycle chain | 1/2 X 3/32 (inches) KMC Z51 |
| Bottom bracket shell width | 68 (millimeters) English |
| Bottom bracket type | Cartridge |
| Crankset parts and sizes | 28/38/48 Teeth Shimano FC-C051 |
| Gear shift levers | Shimano EF-29 EZ-Fire |
| Rear gear set | 13 - 34 Teeth 7-speed |
Raleigh M40 Fork System Data
| Derailleur (Front) | Top-pull and clamp-on 31.8 (millimeters) Shimano C051 |
| Derailleur (Rear) | Shimano Altus |
| Fork material | Single Crown Aluminum |
| Fork type | 63 (millimeters) Travel SR Suntour XC50 |
Other Specs of Raleigh M40
| Component group sets | Mountain Mix |
| Pedals details | Wellgo Resin |
| Rear shock absorber | Not Available |
| Saddle seat | Avenir ATB Vinyl |
| Seat post extension | 27.2 (millimeters) Diameter Aluminum |
