Iron Horse STOUT 2000 VS KHS TEAM XTR 1997 specs comparison

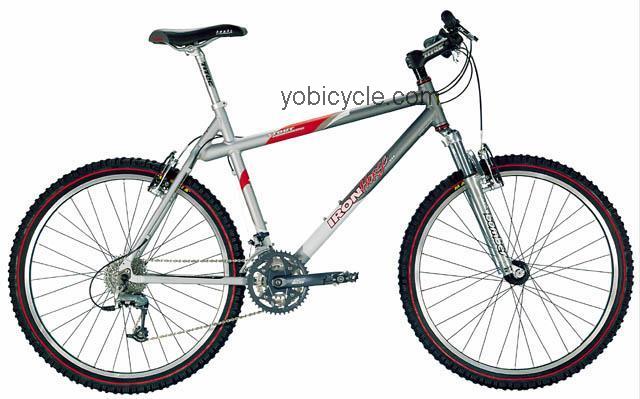

Iron Horse Stout
General Infos| Model | Stout |
| Manufacturer | Iron Horse |
| Year of production | 2000 |
| Current price | Check price Here ==> |
| Color choice |
- Satin Gunmetal and Satin Silver -Satin Gunmetal and Satin Black |
| Sizes |
- 15 (inches) - 16.5 (inches) - 18 (inches) - 19.5 (inches) |
| Sizes |
- 15 (inches) - 16.5 (inches) - 18 (inches) - 19.5 (inches) |
Wheels And Breaking System
| Bike front tire | 26 X 2.10 (inches) Maxxis Mobster |
| Bike rear tire | Not Available |
| Bike wheel size | 26 (inches) Wheels |
| Brakeset type | Koski #2520 Power Curve Levers Avid Arch Rival 40 Brakes |
| Hubs for disc brakes | Rear: Formula Disc Front: King Kong KD-H2 QR20 |
| Rims manufacturer | 32-hole Sun Rims Rhyno Lite |
| Spoke nipples type | Brass Nipples |
| Spoke wheel | 2.0 (millimeters) Straight Gauge Stainless Steel |
Frame and Body Specs
| Frame materials | Double-butted 7005 Aluminum |
| Frame type | TIG-welded |
| Handlebar construction | Titec Hell Bent DH |
| Handlebar extender | Optional |
| Handlebar stem details | Titec Lil' AL |
| Headset size | 1 1/8 (inches) Threadless WTB Momentum Comp ST |
Gearing Specifications
| Bicycle chain | 1/2 X 3/32 (inches) KMC Z9200 |
| Bottom bracket shell width | 68 (millimeters) English |
| Bottom bracket type | 110 (millimeters) Spindle Shimano BB-UN40 |
| Crankset parts and sizes | 22/32/44 Teeth Shimano Deore |
| Gear shift levers | Shimano Deore |
| Rear gear set | 11 - 32 Teeth 9-speed |
Iron Horse Stout Fork System Data
| Derailleur (Front) | Clamp-on 31.8 (millimeters) Shimano Deore |
| Derailleur (Rear) | Shimano Deore XT SGS |
| Fork material | Triple-clamp Crown Aluminum |
| Fork type | 4.0 (inches) Travel Marzocchi Bomber Z-5 Air QR20 |
Other Specs of Iron Horse Stout
| Component group sets | Mountain Mix |
| Pedals details | Victor VP-137 Clipless |
| Rear shock absorber | Not Available |
| Saddle seat | Koski Fastback |
| Seat post extension | Titec Aluminum |
KHS Team XTR
General Infos| Model | Team XTR |
| Manufacturer | KHS |
| Year of production | 1997 |
| Current price | Check price Here ==> |
| Color choice |
-Ducatti yellow and red |
| Sizes |
- 15 (inches) - 17 (inches) - 19 (inches) - 21 (inches) |
Wheels And Breaking System
| Bike front tire | 26 X 2.10 (inches) WTB VelociRaptor Kevlar |
| Bike rear tire | Not Available |
| Bike wheel size | 26 (inches) Wheels |
| Brakeset type | Shimano XTR Levers Shimano XTR V-Brake Brakes |
| Hubs for disc brakes | Shimano XTR |
| Rims manufacturer | 32-hole Mavic 217 SUP |
| Spoke nipples type | Alloy Nipples |
| Spoke wheel | 2.0 (millimeters) Double Butted Wheelsmith Stainless Steel |
Frame and Body Specs
| Frame materials | True Temper OXIII |
| Frame type | TIG-welded |
| Handlebar construction | Bontrager Race |
| Handlebar extender | F3 Aluminum |
| Handlebar stem details | Azonic |
| Headset size | 1 1/8 (inches) Threadless Dia-Compe Kontak Aheadset AL-2 |
Gearing Specifications
| Bicycle chain | 1/2 X 3/32 (inches) Shimano CN-IG90 |
| Bottom bracket shell width | 68 (millimeters) English |
| Bottom bracket type | 112.5 (millimeters) Spindle Shimano BB-M950 |
| Crankset parts and sizes | 24/34/46 Teeth Shimano XTR M950-IG |
| Gear shift levers | Shimano XTR RapidFire SL |
| Rear gear set | 12 - 32 Teeth 8-speed |
KHS Team XTR Fork System Data
| Derailleur (Front) | Top-pull and clamp-on 31.8 (millimeters) Shimano XTR Top-swing |
| Derailleur (Rear) | Shimano XTR SGS |
| Fork material | Triple-clamp Crown Magnesium |
| Fork type | Rock Shox Judy SL |
Other Specs of KHS Team XTR
| Component group sets | Shimano XTR 950 |
| Pedals details | Azonic Clipless |
| Rear shock absorber | Not Available |
| Saddle seat | Chromoly Rails Selle San Marco Squadra HDP |
| Seat post extension | 26.8 (millimeters) Diameter Titec Aluminum |
