Jamis DIABLO 1.0 2006 VS Commencal SUPREME DH 2010 specs comparison

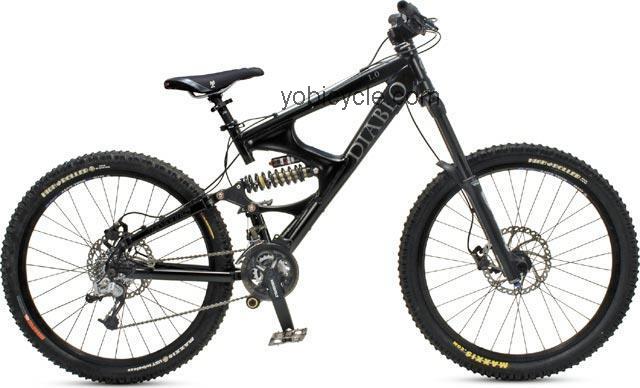

Jamis Diablo 1.0
General Infos| Model | Diablo 1.0 |
| Manufacturer | Jamis |
| Year of production | 2006 |
| Current price | Check price Here ==> |
| Color choice |
-Ano Black |
| Sizes |
- 15.5 (inches) - 17.5 (inches) - 19.5 (inches) - 21 (inches) |
| Sizes |
- 15.5 (inches) - 17.5 (inches) - 19.5 (inches) - 21 (inches) |
Wheels And Breaking System
| Bike front tire | Rear: 26 X 2.50 (inches) Maxxis High Roller Front: 26 X 2.70 (inches) Maxxis High Roller |
| Bike rear tire | Not Available |
| Bike wheel size | 26 (inches) Wheels |
| Brakeset type | Hayes HFX-9 Hydraulic Disc Front and Hayes HFX-9 Hydraulic Rear Levers Hayes HFX-9 Hydraulic Disc Brakes |
| Hubs for disc brakes | Rear: WTB Laser Disc Super Duty 150 (millimeters) and 20 (millimeters) Thru Front: WTB Laser Disc Super Duty 20 (millimeters) |
| Rims manufacturer | 32-hole WTB Dual Duty Free Ride |
| Spoke nipples type | Not Available |
| Spoke wheel | 14ga. Straight Gauge WTB Stainless Steel |
Frame and Body Specs
| Frame materials | 7005 aluminum c |
| Frame type | TIG-welded |
| Handlebar construction | Truvativ LE OS |
| Handlebar extender | Not Available |
| Handlebar stem details | Truvativ Holzfeller DH |
| Headset size | 1 1/2 (inches) Threadless FSA Orbit Extreme Pro |
Gearing Specifications
| Bicycle chain | 1/2 X 3/32 (inches) Shimano CN-HG73 |
| Bottom bracket shell width | Not Available |
| Bottom bracket type | Truvativ Howitzer |
| Crankset parts and sizes | 24/36 Teeth Truvativ Hussefelt |
| Gear shift levers | SRAM X-7 Trigger |
| Rear gear set | 11 - 32 Teeth 9-speed |
Jamis Diablo 1.0 Fork System Data
| Derailleur (Front) | Top-pull and clamp-on 31.8 (millimeters) Shimano Saint |
| Derailleur (Rear) | SRAM X.7 |
| Fork material | Single Crown Aluminum and magnesium |
| Fork type | Manitou Stance Blunt |
Other Specs of Jamis Diablo 1.0
| Component group sets | Downhill Mix |
| Pedals details | Truvativ Hussefelt |
| Rear shock absorber | Manitou Swinger 4-Way |
| Saddle seat | WTB Power V DH Race |
| Seat post extension | 31.6 (millimeters) Diameter Titec El Norte Pyro-Scoper |
Commencal Supreme DH
General Infos| Model | Supreme DH |
| Manufacturer | Commencal |
| Year of production | 2010 |
| Current price | Check price Here ==> |
| Color choice |
-Neon Red |
| Sizes |
- Small/medium - large/xlarge |
Wheels And Breaking System
| Bike front tire | 26 X 2.50 (inches) Maxxis Minion DHF |
| Bike rear tire | Not Available |
| Bike wheel size | 26 (inches) Wheels |
| Brakeset type | Avid Elixer 5 Hydraulic Levers Avid Elixer 5 With 203 (millimeters) Rotor Brakes |
| Hubs for disc brakes | Rear: +ç 12 (millimeters) Sealed Bearings Front: +ç Disc 20 (millimeters) Sealed Bearings |
| Rims manufacturer | 32-hole Sun Ringl+¬ X430 |
| Spoke nipples type | Not Available |
| Spoke wheel | Stainless |
Frame and Body Specs
| Frame materials | Aluminum |
| Frame type | TIG-welded |
| Handlebar construction | TruVativ Holzfeller Low-rise 31.8 |
| Handlebar extender | Optional |
| Handlebar stem details | FSA Gravity Direct Mount |
| Headset size | Tange Fatty MX2 |
Gearing Specifications
| Bicycle chain | Shimano |
| Bottom bracket shell width | Not Available |
| Bottom bracket type | TruVativ Howitzer |
| Crankset parts and sizes | 36 Teeth TruVativ Hussefelt |
| Gear shift levers | Shimano SLX |
| Rear gear set | 11 - 28 Teeth 9-speed |
Commencal Supreme DH Fork System Data
| Derailleur (Front) | Chain Retention Device E13 LS1 With Taco |
| Derailleur (Rear) | Shimano Saint |
| Fork material | Dual |
| Fork type | 203 (millimeters) Travel RockShox Boxxer Race |
Other Specs of Commencal Supreme DH
| Component group sets | Downhill Mix |
| Pedals details | Not Available |
| Rear shock absorber | 8 (inches) Travel Fox Van R |
| Saddle seat | SDG I Fly I Beam |
| Seat post extension | SDG Micro I BEAM |
