Jamis DRAGON 2002 VS Norco XFR 3 2011 specs comparison
Jamis Dragon
General Infos| Model | Dragon |
| Manufacturer | Jamis |
| Year of production | 2002 |
| Current price | Check price Here ==> |
| Color choice |
-Red and White |
| Sizes |
- 13 (inches) - 15 (inches) - 17 (inches) - 19 (inches) - 21 (inches) |
| Sizes |
- 13 (inches) - 15 (inches) - 17 (inches) - 19 (inches) - 21 (inches) |
Wheels And Breaking System
| Bike front tire | 26 X 2.00 (inches) Hutchinson Python Tubeless |
| Bike rear tire | Not Available |
| Bike wheel size | 26 (inches) Wheels |
| Brakeset type | Shimano XTR RapidFire SL Levers Shimano XTR V-Brake Brakes |
| Hubs for disc brakes | Mavic Crossmax UST |
| Rims manufacturer | 18-hole and 20-hole Mavic Crossmax UST |
| Spoke nipples type | Aluminum Nipples |
| Spoke wheel | Aero Mavic Zicral |
Frame and Body Specs
| Frame materials | Reynolds 853 |
| Frame type | TIG-welded |
| Handlebar construction | Answer Hyperlite |
| Handlebar extender | Optional |
| Handlebar stem details | Thomson Elite |
| Headset size | 1 1/8 (inches) Threadless Cane Creek S-2 |
Gearing Specifications
| Bicycle chain | 1/2 X 3/32 (inches) Shimano CN-7700 |
| Bottom bracket shell width | 68 (millimeters) English |
| Bottom bracket type | 112.5 (millimeters) Spindle Shimano BB-M952 |
| Crankset parts and sizes | 24/34/46 Teeth Shimano XTR M952 |
| Gear shift levers | Shimano XTR RapidFire SL |
| Rear gear set | 11 - 34 Teeth 9-speed |
Jamis Dragon Fork System Data
| Derailleur (Front) | Top-pull and clamp-on 28.6 (millimeters) Shimano XTR Top-swing |
| Derailleur (Rear) | Shimano XTR SGS |
| Fork material | Single Triple-clamp Crown Aluminum |
| Fork type | 3.15 (inches) Travel Answer Manitou Mars Super |
Other Specs of Jamis Dragon
| Component group sets | Shimano XTR |
| Pedals details | Time ATAC Classic |
| Rear shock absorber | Not Available |
| Saddle seat | Koski Contour Team |
| Seat post extension | 27.2 (millimeters) Diameter Thomson Elite |

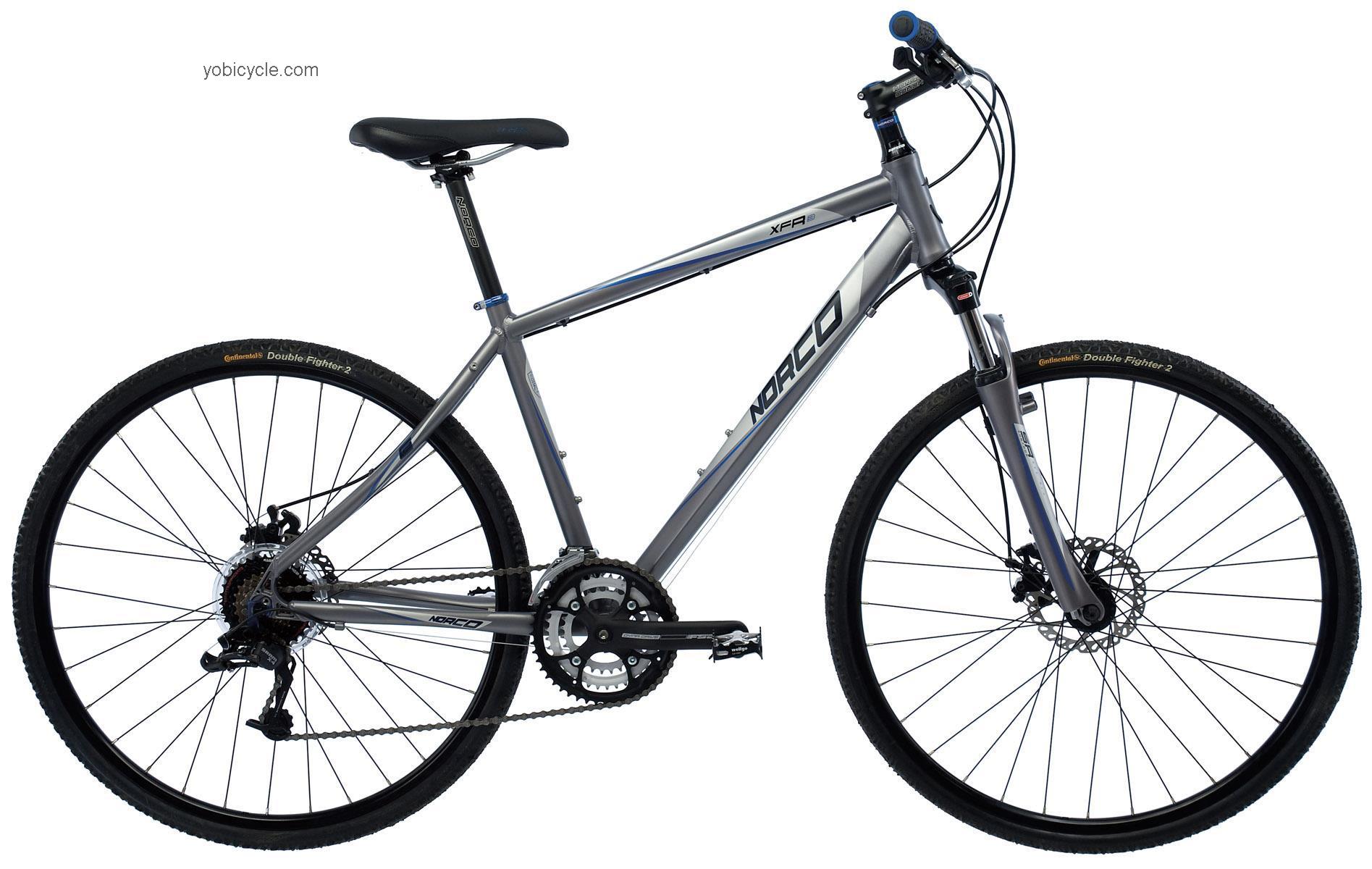

Norco XFR 3
General Infos| Model | XFR 3 |
| Manufacturer | Norco |
| Year of production | 2011 |
| Current price | Check price Here ==> |
| Color choice |
-Matte Charcoal |
| Sizes |
- 14.5. 16 (inches) - 18 (inches) - 20 (inches) - 22 (inches) |
Wheels And Breaking System
| Bike front tire | 700 X 32c Continental Double Fighter II |
| Bike rear tire | Not Available |
| Bike wheel size | 700c Wheels |
| Brakeset type | Tektro 360A Levers Hayes MX4 Brakes |
| Hubs for disc brakes | Rear: Shimano Deore FH-M525 Disc Front: Formula DC20 |
| Rims manufacturer | 32-hole Double Wall Alloy |
| Spoke nipples type | Not Available |
| Spoke wheel | Stainless |
Frame and Body Specs
| Frame materials | Alloy |
| Frame type | TIG-welded |
| Handlebar construction | Norco Riser Bar |
| Handlebar extender | Optional |
| Handlebar stem details | Norco |
| Headset size | FSA No.11N Semi-cartridge |
Gearing Specifications
| Bicycle chain | KMC Z72 |
| Bottom bracket shell width | Not Available |
| Bottom bracket type | FSA BB-7420ST |
| Crankset parts and sizes | 28/38/48 Teeth FSA Dyna Drive |
| Gear shift levers | SRAM X.4 |
| Rear gear set | 11 - 32 Teeth 8-speed |
Norco XFR 3 Fork System Data
| Derailleur (Front) | Shimano Altus FD-M191 |
| Derailleur (Rear) | SRAM X.4 |
| Fork material | Single |
| Fork type | 75 (millimeters) Travel SR Suntour NVX |
Other Specs of Norco XFR 3
| Component group sets | SRAM Mix |
| Pedals details | Wellgo Alloy Body With Steel Cage |
| Rear shock absorber | Not Available |
| Saddle seat | Norco Urban Stealth |
| Seat post extension | Norco |
