Jamis DRAGON TEAM 2006 VS Kona CALDERA 2010 specs comparison

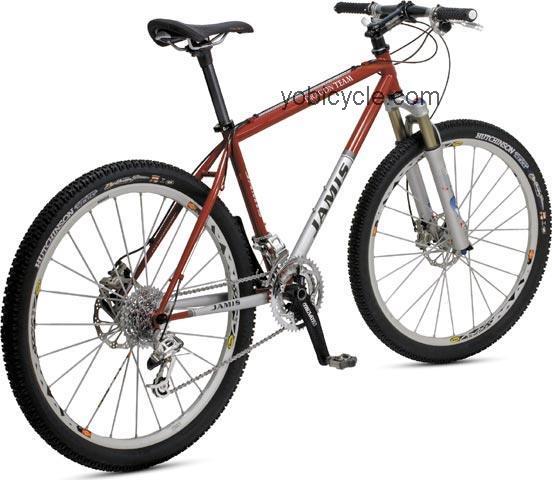

Jamis Dragon Team

General Infos

Model	Dragon Team
Manufacturer	Jamis
Year of production	2006
Current price	Check price Here ==>
Color choice	-Classic Red and Ano Silver
Sizes	- 13 (inches) - 15 (inches) - 17 (inches) - 19 (inches) - 21 (inches)
Sizes	- 13 (inches) - 15 (inches) - 17 (inches) - 19 (inches) - 21 (inches)

Wheels And Breaking System

Bike front tire	26 X 2.00 (inches) Hutchinson Python New UST Light
Bike rear tire	Not Available
Bike wheel size	26 (inches) Wheels
Brakeset type	Avid Juicy 7 Levers Avid Juicy 7 Brakes
Hubs for disc brakes	Mavic Crossmax SL Disc
Rims manufacturer	Mavic Crossmax SL Disc
Spoke nipples type	Not Available
Spoke wheel	Not Available

Frame and Body Specs

Frame materials	Reynolds 853 Double Butted
Frame type	TIG-welded
Handlebar construction	Truvativ Team Carbon
Handlebar extender	Not Available
Handlebar stem details	Truvativ Team 3D
Headset size	1 1/8 (inches) Threadless Cane Creek S-2

Gearing Specifications

Bicycle chain	1/2 X 3/32 (inches) Shimano CN-7701
Bottom bracket shell width	Not Available
Bottom bracket type	113 (millimeters) Spindle Truvativ GXP
Crankset parts and sizes	22/32/44 Teeth Truvativ Stylo GXP Carbon
Gear shift levers	SRAM X.0 Trigger
Rear gear set	11 - 34 Teeth 9-speed

Jamis Dragon Team Fork System Data

Derailleur (Front)	Top-pull and clamp-on 28.6 (millimeters) SRAM X-Gen
Derailleur (Rear)	SRAM X.0
Fork material	Single Crown Aluminum and magnesium
Fork type	Fox FRLT

Other Specs of Jamis Dragon Team

Component group sets	Mountain Mix
Pedals details	Crank Brothers Candy C
Rear shock absorber	Not Available
Saddle seat	Fi'zi:k Gobi Cr-Mo Rails
Seat post extension	27.2 (millimeters) Diameter Truvativ Team Carbon Double Clamp

Kona Caldera

General Infos

Model	Caldera
Manufacturer	Kona
Year of production	2010
Current price	Check price Here ==>
Color choice	-Light Grey and Dark grey
Sizes	- 14 (inches) - 16 (inches) - 17 (inches) - 18 (inches) - 19 (inches) - 20 (inches) - 22 (inches)

Wheels And Breaking System

Bike front tire	26 X 2.10 (inches) Kenda Komodo
Bike rear tire	Not Available
Bike wheel size	26 (inches) Wheels
Brakeset type	Shimano M575 Hydraulic Levers Shimano M575 Hydraulic Disc With 7 (inches) Rotor Front and Shimano M575 Hydraulic Disc With 6 (inches) Rotor Rear Brakes
Hubs for disc brakes	Rear: Shimano M475 Disc Front: Formula Disc
Rims manufacturer	Alex DP-17
Spoke nipples type	Not Available
Spoke wheel	15ga Front and 14ga Rear Sandvic Stainless

Frame and Body Specs

Frame materials	Kona All Mountain Butted Aluminum
Frame type	TIG-welded
Handlebar construction	Kona XC and BC Riser
Handlebar extender	Optional
Handlebar stem details	Kona XC and BC
Headset size	1 1/8 (inches) Threadless TH

Gearing Specifications

Bicycle chain	KMC HG53
Bottom bracket shell width	73 (millimeters)
Bottom bracket type	FSA Mega EXO
Crankset parts and sizes	44/32/22 Teeth FSA Comet
Gear shift levers	Shimano Deore
Rear gear set	11 - 32 Teeth 9-speed

Kona Caldera Fork System Data

Derailleur (Front)	31.8 (millimeters) Clamp Shimano Deore
Derailleur (Rear)	Shimano XT Shadow
Fork material	Single Crown Magnesium and aluminum and steel
Fork type	100 (millimeters) Travel RockShox Tora SL Solo

Other Specs of Kona Caldera

Component group sets	Mountain Mix
Pedals details	Shimano M505
Rear shock absorber	Not Available
Saddle seat	WTB Rocket V Comp
Seat post extension	Kona XC and BC
