Jamis DURANGO SPORT SX 1997 VS Merlin FAT TI 1999 specs comparison

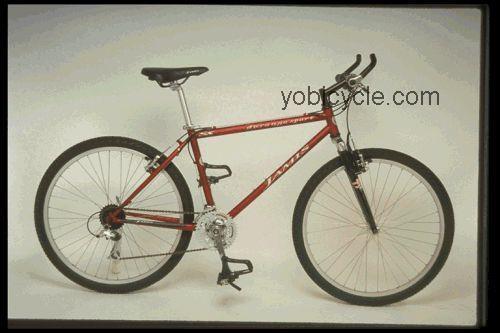

Jamis Durango Sport SX

General Infos

Model	Durango Sport SX
Manufacturer	Jamis
Year of production	1997
Current price	Check price Here ==>
Color choice	- matte red -Charcoal
Sizes	- 11 (inches) - 13 (inches) - 15 (inches) - 17 (inches) - 19 (inches) - 21 (inches)
Sizes	- 11 (inches) - 13 (inches) - 15 (inches) - 17 (inches) - 19 (inches) - 21 (inches)

Wheels And Breaking System

Bike front tire	26 X 2.00 (inches) Duro HF-855
Bike rear tire	Not Available
Bike wheel size	26 (inches) Wheels
Brakeset type	Lee Chi GS-2 Levers Shimano Altus Brakes
Hubs for disc brakes	Shimano Altus
Rims manufacturer	36-hole Alex VP-20
Spoke nipples type	Brass Nipples
Spoke wheel	2.0 (millimeters) Straight Gauge Shuhn Lih Stainless Steel

Frame and Body Specs

Frame materials	Chromoly Main Triangle and hi-tensile Steel Rear Stays
Frame type	TIG-welded
Handlebar construction	Hsin Lung Steel
Handlebar extender	Kalloy Aluminum
Handlebar stem details	Hsin Lung Steel
Headset size	1 1/8 (inches) Victor VP-H94 Sealed

Gearing Specifications

Bicycle chain	1/2 X 3/32 (inches) Shimano CN-HG50
Bottom bracket shell width	68 (millimeters) English
Bottom bracket type	110 (millimeters) Spindle Shimano BB-LP26
Crankset parts and sizes	24/34/42 Teeth Shimano Alivio
Gear shift levers	Grip Shift SRT-400i
Rear gear set	11 - 28 Teeth 7-speed

Jamis Durango Sport SX Fork System Data

Derailleur (Front)	Top-pull and clamp-on 28.6 (millimeters) Shimano Alivio Top-swing
Derailleur (Rear)	Shimano Alivio
Fork material	Triple-clamp Crown Magnesium
Fork type	Rock Shox Quadra 5

Other Specs of Jamis Durango Sport SX

Component group sets	Shimano Alivio
Pedals details	Wellgo LU-943 With Clips & Straps
Rear shock absorber	Not Available
Saddle seat	Viscount 2974
Seat post extension	26.8 (millimeters) Diameter Kalloy SP-242

Merlin Fat Ti

General Infos

Model	Fat Ti
Manufacturer	Merlin
Year of production	1999
Current price	Check price Here ==>
Color choice	-Brushed
Sizes	- 13.5 (inches) - 15 (inches) - 16.25 (inches) - 17.5 (inches) - 18.75 (inches) - 20 (inches) - 21.5 (inches)

Wheels And Breaking System

Bike front tire	26 X 2.20 (inches) Panaracer Mach SS Kevlar
Bike rear tire	Not Available
Bike wheel size	26 (inches) Wheels
Brakeset type	Real TX Levers Shimano XTR V-Brake Brakes
Hubs for disc brakes	Real
Rims manufacturer	32-hole Velocity Deep-V
Spoke nipples type	Brass Nipples
Spoke wheel	2.0 (millimeters) Double-butted DT Stainless Steel

Frame and Body Specs

Frame materials	3Al and 2.5V Titanium
Frame type	TIG-welded
Handlebar construction	Syntace Duraflite
Handlebar extender	Optional
Handlebar stem details	Tahoma Sonne IV
Headset size	1 1/8 (inches) Threadless FSA Orbit

Gearing Specifications

Bicycle chain	1/2 X 3/32 (inches) Shimano CN-7700
Bottom bracket shell width	68 (millimeters) English
Bottom bracket type	112.5 (millimeters) Spindle Shimano BB-M952
Crankset parts and sizes	24/36/46 Teeth Shimano XTR M952
Gear shift levers	Shimano XTR RapidFire SL
Rear gear set	12 - 34 Teeth 9-speed

Merlin Fat Ti Fork System Data

Derailleur (Front)	Top-pull and clamp-on 35.0 (millimeters) Shimano XTR Top-swing
Derailleur (Rear)	Shimano XTR GS
Fork material	Unicrown Crown Aluminum
Fork type	2.75 (inches) Travel CODA HeadShok Fatty SL

Other Specs of Merlin Fat Ti

Component group sets	Shimano XTR
Pedals details	Optional
Rear shock absorber	Not Available
Saddle seat	Selle San Marco Rolls
Seat post extension	27.2 (millimeters) Diameter Thomson Elite
