K2 ZED 24 2002 VS K2 ZED 24 2003 specs comparison

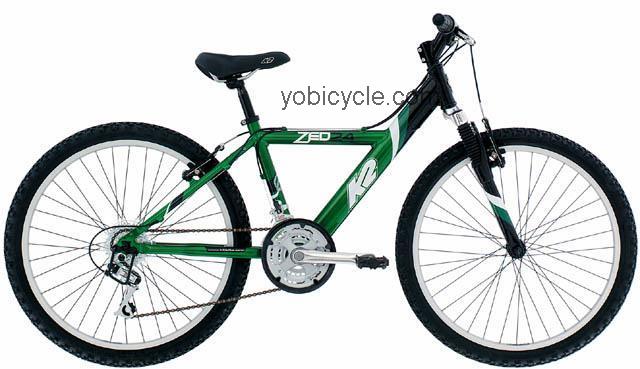

K2 Zed 24
General Infos| Model | Zed 24 |
| Manufacturer | K2 |
| Year of production | 2002 |
| Current price | Check price Here ==> |
| Color choice | - White and Pink-Black and Green |
| Sizes | - Standard size for all |
| Sizes | - Standard size for all |
Wheels And Breaking System
| Bike front tire | 24 X 1.75 (inches) All Terrain |
| Bike rear tire | Not Available |
| Bike wheel size | 24 (inches) Wheels |
| Brakeset type | Tektro 328A LeversTektro 832A Linear Pull Brakes |
| Hubs for disc brakes | Q and R Rear: Aluminum NuttedFront: Aluminum |
| Rims manufacturer | 36-holeAlex Y-2000 |
| Spoke nipples type | Brass Nipples |
| Spoke wheel | 14ga. Straight GaugeUCP |
Frame and Body Specs
| Frame materials | 6061 T6 Aluminum |
| Frame type | TIG-welded |
| Handlebar construction | Aluminum |
| Handlebar extender | Optional |
| Handlebar stem details | Aluminum Threadless |
| Headset size | 1 (inches) Threadless Steel |
Gearing Specifications
| Bicycle chain | 1/2 X 3/32 (inches)KMC Z-51 |
| Bottom bracket shell width | 68 (millimeters) English |
| Bottom bracket type | Loose Ball |
| Crankset parts and sizes | 24/34/42 TeethSuntour XR-128 |
| Gear shift levers | SRAM MRX |
| Rear gear set | 13 - 28 Teeth7-speed |
K2 Zed 24 Fork System Data
| Derailleur (Front) | Clamp-onShimano Tourney |
| Derailleur (Rear) | Shimano Tourney TY-22 |
| Fork material | Single Triple-clamp CrownAluminum |
| Fork type | Not Available |
Other Specs of K2 Zed 24
| Component group sets | Juvenile Mix |
| Pedals details | Resin |
| Rear shock absorber | Not Available |
| Saddle seat | K2 Jr. ATB |
| Seat post extension | Aluminum |
K2 Zed 24
General Infos| Model | Zed 24 |
| Manufacturer | K2 |
| Year of production | 2003 |
| Current price | Check price Here ==> |
| Color choice | - Red and Silver-Blue and White |
| Sizes | - Standard size for all |
Wheels And Breaking System
| Bike front tire | 24 X 1.75 (inches) Kenda K-830 |
| Bike rear tire | Not Available |
| Bike wheel size | 24 (inches) Wheels |
| Brakeset type | Tektro 328A LeversTektro 832A Linear Pull Brakes |
| Hubs for disc brakes | Q and RJoy Tech Aluminum |
| Rims manufacturer | 36-holeAlex Y-2000 |
| Spoke nipples type | Brass Nipples |
| Spoke wheel | 14ga. Straight GaugeUCP |
Frame and Body Specs
| Frame materials | 7005 aluminum c |
| Frame type | TIG-welded |
| Handlebar construction | Aluminum |
| Handlebar extender | Optional |
| Handlebar stem details | Aluminum Threadless |
| Headset size | 1 (inches) Threadless Steel |
Gearing Specifications
| Bicycle chain | 1/2 X 3/32 (inches)KMC Z51 |
| Bottom bracket shell width | 68 (millimeters) English |
| Bottom bracket type | Loose Ball |
| Crankset parts and sizes | 24/34/42 TeethSuntour |
| Gear shift levers | SRAM MRX |
| Rear gear set | 13 - 28 Teeth7-speed |
K2 Zed 24 Fork System Data
| Derailleur (Front) | Clamp-onShimano Tourney TY-10 |
| Derailleur (Rear) | Shimano Tourney TY-22 |
| Fork material | Single CrownAluminum |
| Fork type | Noleen Sport FS |
Other Specs of K2 Zed 24
| Component group sets | Juvenile Mix |
| Pedals details | Resin |
| Rear shock absorber | Not Available |
| Saddle seat | K2 Jr. ATB |
| Seat post extension | Aluminum |
