KHS COMP ST 2005 VS Diamondback XSL 2003 specs comparison
KHS Comp ST
General Infos| Model | Comp ST |
| Manufacturer | KHS |
| Year of production | 2005 |
| Current price | Check price Here ==> |
| Color choice | -Blue and White |
| Sizes | - Small - Medium - Large - Extra large |
| Sizes | - Small - Medium - Large - Extra large |
Wheels And Breaking System
| Bike front tire | 26 X 2.00 (inches) Kenda Karma |
| Bike rear tire | Not Available |
| Bike wheel size | 26 (inches) Wheels |
| Brakeset type | Tektro LeversTektro Brakes |
| Hubs for disc brakes | Formula Aluminum |
| Rims manufacturer | 32-holeWeinmann Zac 19 |
| Spoke nipples type | Brass Nipples |
| Spoke wheel | 15ga. Straight GaugeStainless Steel |
Frame and Body Specs
| Frame materials | Aluminum |
| Frame type | TIG-welded |
| Handlebar construction | Aluminum |
| Handlebar extender | Optional |
| Handlebar stem details | Aluminum |
| Headset size | 1 1/8 (inches) Threadless WTB |
Gearing Specifications
| Bicycle chain | 1/2 X 3/32 (inches)KMC Z82 |
| Bottom bracket shell width | Not Available |
| Bottom bracket type | TruVativ Cartridge |
| Crankset parts and sizes | 22/32/42 TeethTruVativ Isoflow |
| Gear shift levers | SRAM X-7 Trigger |
| Rear gear set | 11 - 34 Teeth9-speed |
KHS Comp ST Fork System Data
| Derailleur (Front) | SRAM 3.0 |
| Derailleur (Rear) | SRAM 5.0 |
| Fork material | Single CrownAluminum and magnesium |
| Fork type | 100 (millimeters) TravelRock Shox Judy XC |
Other Specs of KHS Comp ST
| Component group sets | Mountain Mix |
| Pedals details | Aluminum Cage |
| Rear shock absorber | KHS |
| Saddle seat | WTB Pure-V Comp |
| Seat post extension | Kalloy Micro-adjust |

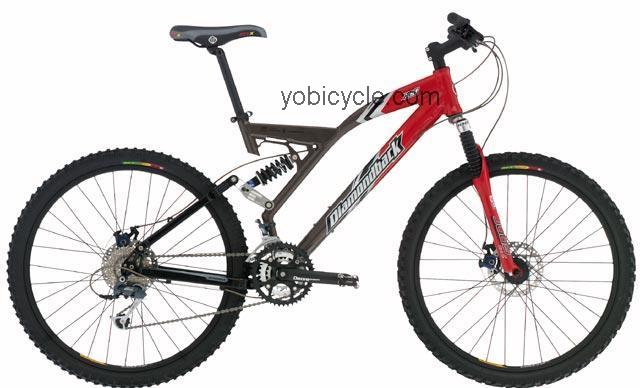

Diamondback XSL
General Infos| Model | XSL |
| Manufacturer | Diamondback |
| Year of production | 2003 |
| Current price | Check price Here ==> |
| Color choice | -Diamond Red and Gray |
| Sizes | - 16 (inches)- 18 (inches)- 20 (inches) |
Wheels And Breaking System
| Bike front tire | 26 X 2.10 (inches) WTB VelociRaptor |
| Bike rear tire | Not Available |
| Bike wheel size | 26 (inches) Wheels |
| Brakeset type | Shimano Deore RapidFire SL LeversShimano BR-M475 Mechanical Disc Brakes |
| Hubs for disc brakes | Shimano HB-M475 |
| Rims manufacturer | 32-holeAlex AL-DM18 |
| Spoke nipples type | Brass Nipples |
| Spoke wheel | 14ga. Straight GaugeStainless Steel |
Frame and Body Specs
| Frame materials | 6061 T6 Aluminum |
| Frame type | TIG-welded |
| Handlebar construction | RiseAluminum |
| Handlebar extender | Optional |
| Handlebar stem details | Aluminum Ahead Type |
| Headset size | 1 1/8 (inches) Integrated Tien Hsin No.10 ZST |
Gearing Specifications
| Bicycle chain | 1/2 X 1/8 (inches)KMC Z9000 |
| Bottom bracket shell width | 68 (millimeters) English |
| Bottom bracket type | 113 (millimeters) SpindleSealed Cartridge |
| Crankset parts and sizes | 22/32/44 TeethShimano Deore FC-M510S |
| Gear shift levers | Shimano Deore RapidFire SL |
| Rear gear set | 11 - 32 Teeth9-speed |
Diamondback XSL Fork System Data
| Derailleur (Front) | Top-pull and clamp-on 31.8 (millimeters)Shimano Deore LX |
| Derailleur (Rear) | Shimano Deore LX SGS |
| Fork material | Single CrownAluminum and magnesium |
| Fork type | 100 (millimeters) TravelRock Shox Judy TT |
Other Specs of Diamondback XSL
| Component group sets | Mountain Mix |
| Pedals details | Shimano PD-M505 SPD |
| Rear shock absorber | 4.0 (inches)-4.5 (inches) TravelRST Coil |
| Saddle seat | WTB SST |
| Seat post extension | 27.2 (millimeters) DiameterAluminum Micro-adjust |
