KHS DJ25 2007 VS Diamondback TOPANGA 2003 specs comparison
KHS DJ25
General Infos| Model | DJ25 |
| Manufacturer | KHS |
| Year of production | 2007 |
| Current price | Check price Here ==> |
| Color choice |
-Flat Dark Red |
| Sizes |
- Small - medium - large |
| Sizes |
- Small - medium - large |
Wheels And Breaking System
| Bike front tire | Rear: 26 X 1.95 (inches) Kenda K-Rad Front: 26 X 2.10 (inches) Kenda Kinetics |
| Bike rear tire | Not Available |
| Bike wheel size | 26 (inches) Wheels |
| Brakeset type | Shimano ST-EF50 Levers Winzip Mechanical With 6 (inches) Rotor Brakes |
| Hubs for disc brakes | Alloy Disc |
| Rims manufacturer | 36-hole Alloy |
| Spoke nipples type | Not Available |
| Spoke wheel | 14ga. Black |
Frame and Body Specs
| Frame materials | 7005 aluminum c |
| Frame type | TIG-welded |
| Handlebar construction | 30 (millimeters) Rise |
| Handlebar extender | Optional |
| Handlebar stem details | 25 Degree 4-Bolt |
| Headset size | 1 1/8 (inches) Threadless VP Threadless |
Gearing Specifications
| Bicycle chain | KMC Z51 |
| Bottom bracket shell width | Not Available |
| Bottom bracket type | VP-B33 |
| Crankset parts and sizes | 28/38/48 Teeth Shimano FC-TX71 |
| Gear shift levers | Shimano EF-50 |
| Rear gear set | 12 - 32 Teeth 7-speed |
KHS DJ25 Fork System Data
| Derailleur (Front) | Shimano C-051 |
| Derailleur (Rear) | Shimano Tourney TX-30 |
| Fork material | Single Crown Aluminum and magnesium |
| Fork type | 89 (millimeters) Travel Mozo Soul E |
Other Specs of KHS DJ25
| Component group sets | Shimano Mix |
| Pedals details | VP MTB |
| Rear shock absorber | Not Available |
| Saddle seat | KHS Dirt Jump |
| Seat post extension | Alloy Micro Adjust |

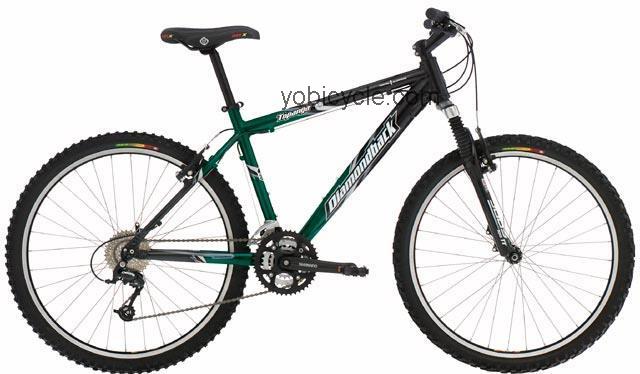

Diamondback Topanga
General Infos| Model | Topanga |
| Manufacturer | Diamondback |
| Year of production | 2003 |
| Current price | Check price Here ==> |
| Color choice |
- Rough Green and Black -Reflex Blue and Black |
| Sizes |
- 14 (inches) - 16 (inches) - 18 (inches) - 20 (inches) - 22 (inches) |
Wheels And Breaking System
| Bike front tire | 26 X 2.10 (inches) WTB VelociRaptor |
| Bike rear tire | Not Available |
| Bike wheel size | 26 (inches) Wheels |
| Brakeset type | Tektro Linear-pull Levers Tektro Linear-pull Brakes |
| Hubs for disc brakes | Aluminum |
| Rims manufacturer | 32-hole Weinmann Zac 19 |
| Spoke nipples type | Not Available |
| Spoke wheel | 14ga. Straight Gauge Stainless Steel |
Frame and Body Specs
| Frame materials | 6061 T6 Aluminum With Replaceable Derailleur Hanger |
| Frame type | TIG-welded |
| Handlebar construction | 1 (inches) Rise Aluminum |
| Handlebar extender | Optional |
| Handlebar stem details | Aluminum Ahead Type |
| Headset size | 1 1/8 (inches) Integrated Tien Hsin No.10 ZST |
Gearing Specifications
| Bicycle chain | 1/2 X 3/32 (inches) SRAM PC-49 |
| Bottom bracket shell width | 68 (millimeters) English |
| Bottom bracket type | 111 (millimeters) Spindle Sealed Cartridge |
| Crankset parts and sizes | 22/32/44 Teeth Shimano FC-M440 |
| Gear shift levers | Shimano Deore |
| Rear gear set | 11 - 32 Teeth 9-speed |
Diamondback Topanga Fork System Data
| Derailleur (Front) | Top-pull and clamp-on 31.8 (millimeters) Shimano Deore |
| Derailleur (Rear) | Shimano Deore |
| Fork material | Single Crown Aluminum and magnesium |
| Fork type | 100 (millimeters) Travel Rock Shox Judy TT |
Other Specs of Diamondback Topanga
| Component group sets | Shimano Deore |
| Pedals details | Resin Body and aluminum Cage With Clips & Straps |
| Rear shock absorber | Not Available |
| Saddle seat | Avenir ATB SS |
| Seat post extension | 27.2 (millimeters) Diameter Aluminum Micro-adjust |
