KHS FXT RAGE 2002 VS Diamondback XSL ELITE 2005 specs comparison
KHS FXT Rage
General Infos| Model | FXT Rage |
| Manufacturer | KHS |
| Year of production | 2002 |
| Current price | Check price Here ==> |
| Color choice | - Matte Black-Gloss Black |
| Sizes | - Large - medium - small |
| Sizes | - Large - medium - small |
Wheels And Breaking System
| Bike front tire | 26 X 2.10 (inches) Panaracer Fire XC |
| Bike rear tire | Not Available |
| Bike wheel size | 26 (inches) Wheels |
| Brakeset type | Avid Speed Dial 5 LeversAvid Single Digit 3 Brakes |
| Hubs for disc brakes | Aluminum Disc |
| Rims manufacturer | 32-holeSun Rims CR18 |
| Spoke nipples type | Brass Nipples |
| Spoke wheel | 14ga. Straight GaugeStainless Steel |
Frame and Body Specs
| Frame materials | 6061 T6 Aluminum |
| Frame type | TIG-welded |
| Handlebar construction | Kore Lite Riser |
| Handlebar extender | Optional |
| Handlebar stem details | Kore Lite 2 |
| Headset size | 1 1/8 (inches) Aluminum |
Gearing Specifications
| Bicycle chain | 1/2 X 3/32 (inches)KMC Z9000 |
| Bottom bracket shell width | 68 (millimeters) English |
| Bottom bracket type | Sealed Cartridge |
| Crankset parts and sizes | 22/32/44 TeethTruVativ Five D |
| Gear shift levers | Shimano Deore RapidFire SL |
| Rear gear set | 11 - 34 Teeth9-speed |
KHS FXT Rage Fork System Data
| Derailleur (Front) | Top-pull and clamp-on 31.8 (millimeters)Shimano Alivio |
| Derailleur (Rear) | Shimano Deore LX SGS |
| Fork material | Single Triple-clamp CrownAluminum |
| Fork type | 4.0 (inches) TravelMarzocchi EXR |
Other Specs of KHS FXT Rage
| Component group sets | Mountain Mix |
| Pedals details | Aluminum Platform |
| Rear shock absorber | 4.0 (inches) TravelRock Shox Deluxe |
| Saddle seat | WTB Rocket V-Comp |
| Seat post extension | Kalloy Micro-adjust |

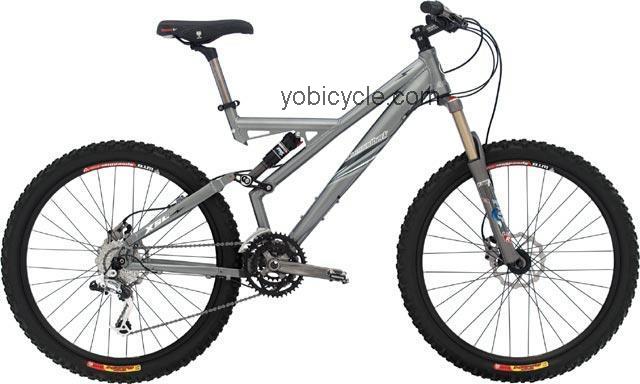

Diamondback XSL Elite
General Infos| Model | XSL Elite |
| Manufacturer | Diamondback |
| Year of production | 2005 |
| Current price | Check price Here ==> |
| Color choice | -Grey Matter |
| Sizes | - 16 (inches)- 18 (inches)- 20 (inches) |
Wheels And Breaking System
| Bike front tire | 26 X 2.14 (inches) WTB Moto Raptor |
| Bike rear tire | Not Available |
| Bike wheel size | 26 (inches) Wheels |
| Brakeset type | Hayes HFX-9 Carbon LeversHayes HMX-9 Carbon Brakes |
| Hubs for disc brakes | WTB Speed Disc |
| Rims manufacturer | 32-holeWTB Speed Disc |
| Spoke nipples type | Not Available |
| Spoke wheel | 14ga. Straight GaugeStainless Steel |
Frame and Body Specs
| Frame materials | Vectra Trail 7005 Aluminum |
| Frame type | TIG-welded |
| Handlebar construction | TruVativ XR |
| Handlebar extender | Optional |
| Handlebar stem details | TruVativ XR |
| Headset size | 1 1/8 (inches) Threadless WTB Zero Stack |
Gearing Specifications
| Bicycle chain | KMC Z9000 |
| Bottom bracket shell width | Not Available |
| Bottom bracket type | TruVativ Giga X Pipe |
| Crankset parts and sizes | TruVativ Stylo SL |
| Gear shift levers | SRAM X.7 Trigger |
| Rear gear set | 11 - 32 Teeth9-speed |
Diamondback XSL Elite Fork System Data
| Derailleur (Front) | 31.8 (millimeters)Shimano LX |
| Derailleur (Rear) | SRAM X.9 |
| Fork material | Single CrownAluminum |
| Fork type | 130 (millimeters)Fox Float R |
Other Specs of Diamondback XSL Elite
| Component group sets | Mountain Mix |
| Pedals details | Shimano PD-M520 SPD |
| Rear shock absorber | 4.5 (inches) and 5 (inches) TravelFox Float R |
| Saddle seat | WTB Speed V Comp |
| Seat post extension | TruVativ XR |
