KHS TANDEMANIA SPORT 1997 VS da vinci Designs SYMBIOSIS CHROMOLY 2001 specs comparison

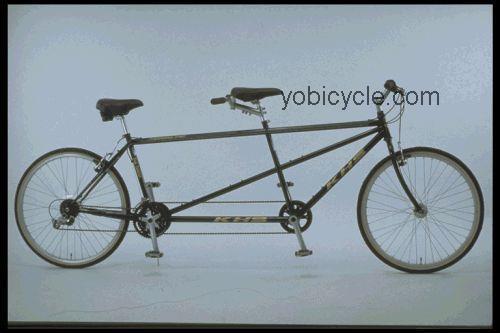

KHS Tandemania Sport

General Infos

Model	Tandemania Sport
Manufacturer	KHS
Year of production	1997
Current price	Check price Here ==>
Color choice	-Emerald green
Sizes	- Captain 18/stoker 16 (inches) - captain 20/stoker 18 (inches)
Sizes	- Captain 18/stoker 16 (inches) - captain 20/stoker 18 (inches)

Wheels And Breaking System

Bike front tire	26 X 1.50 (inches) Duro HF-105
Bike rear tire	Not Available
Bike wheel size	26 (inches) Wheels
Brakeset type	Dia-Compe DP-7 Levers Dia-Compe VC-747 Brakes
Hubs for disc brakes	Rear: Aluminum Nutted Front: Aluminum Quick Release
Rims manufacturer	40-hole Aluminum
Spoke nipples type	Brass Nipples
Spoke wheel	2.0 (millimeters) Straight Gauge Wheelsmith Stainless Steel

Frame and Body Specs

Frame materials	Chromoly Main Triangle and hi-tensile Steel Rear Stays
Frame type	Welded
Handlebar construction	Aluminum
Handlebar extender	Optional
Handlebar stem details	Aluminum
Headset size	1 1/8 (inches) Tien Hsin TH-860

Gearing Specifications

Bicycle chain	1/2 X 3/32 (inches) Shimano CN-HG50
Bottom bracket shell width	68 (millimeters) English
Bottom bracket type	Eccentric Shimano BB-UN52
Crankset parts and sizes	28/38/48 Teeth Tracer
Gear shift levers	Sachs Power Grip Plus
Rear gear set	13 - 28 Teeth 7-speed

KHS Tandemania Sport Fork System Data

Derailleur (Front)	Bottom-pull and clamp-on 31.8 (millimeters) Shimano Alivio Top-swing
Derailleur (Rear)	Shimano Alivio
Fork material	Oversize Unicrown Crown Chromoly
Fork type	KHS

Other Specs of KHS Tandemania Sport

Component group sets	Shimano Alivio
Pedals details	Steel Cage
Rear shock absorber	Not Available
Saddle seat	Viscount 2350 With Springs
Seat post extension	26.0 (millimeters) Diameter Kalloy Aluminum

da vinci Designs Symbiosis Chromoly

General Infos

Model	Symbiosis Chromoly
Manufacturer	da vinci Designs
Year of production	2001
Current price	Check price Here ==>
Color choice	-Not found
Sizes	- Not available

Wheels And Breaking System

Bike front tire	26 X 2.20 (inches) Bontrager Jones
Bike rear tire	Not Available
Bike wheel size	26 (inches) Wheels
Brakeset type	Hope Levers Hope Full Hydraulic Brakes
Hubs for disc brakes	White Industries Disc
Rims manufacturer	36-hole Da Vinci V-22
Spoke nipples type	Brass Nipples
Spoke wheel	13/15/14g Double-butted DT Stainless Steel

Frame and Body Specs

Frame materials	Chromoly
Frame type	TIG-welded
Handlebar construction	Bontrager Race Modified and Zoom Brahma
Handlebar extender	Zoom Brahma
Handlebar stem details	Titec Front Loading and Control Tech Adjustable
Headset size	1 1/8 (inches) Threadless Dia Compe Aheadset

Gearing Specifications

Bicycle chain	1/2 X 3/32 (inches) KMC SS-91
Bottom bracket shell width	Not Available
Bottom bracket type	Da Vinci
Crankset parts and sizes	24/36/48/60 Teeth Da Vinci Direct Drive
Gear shift levers	SRAM 9.0
Rear gear set	12 - 32 Teeth 8-speed

da vinci Designs Symbiosis Chromoly Fork System Data

Derailleur (Front)	Campagnolo Racing Triple
Derailleur (Rear)	SRAM ESP 9.0
Fork material	Double Triple-clamp
Fork type	6.0 (inches) Travel Bombshell

Other Specs of da vinci Designs Symbiosis Chromoly

Component group sets	Tandem Mix
Pedals details	Optional
Rear shock absorber	4.0 (inches) Travel Fox Vanilla
Saddle seat	Avocet O2 40R Kevlar
Seat post extension	29.8 (millimeters) Diameter Thomson Elite and Thomson Elite
