KHS XC-104 2006 VS Giant WARP DS3 2001 specs comparison
KHS XC-104
General Infos| Model | XC-104 |
| Manufacturer | KHS |
| Year of production | 2006 |
| Current price | Check price Here ==> |
| Color choice | - Flat blue and black-Silver and red |
| Sizes | - Small - medium - large |
| Sizes | - Small - medium - large |
Wheels And Breaking System
| Bike front tire | 26 X 2.10 (inches) Kenda Kenetics |
| Bike rear tire | Not Available |
| Bike wheel size | 26 (inches) Wheels |
| Brakeset type | Tektro Alloy Levers Ø 6 (inches) Rotors BrakesWinzip Mechanical Disc |
| Hubs for disc brakes | Alloy Disc |
| Rims manufacturer | 36-holeWeinmann Alloy |
| Spoke nipples type | Brass Nipples |
| Spoke wheel | 14ga. Straight GaugeBlack |
Frame and Body Specs
| Frame materials | 6061 aluminum c |
| Frame type | TIG-welded |
| Handlebar construction | MTB-AL-198 FOV Ø31.8 Riser |
| Handlebar extender | Not Available |
| Handlebar stem details | 10 Degree Alloy 3D ForgedTDS-A292-FOV Ø31.8 |
| Headset size | 1 1/8 (inches) Threadless VP Threadless |
Gearing Specifications
| Bicycle chain | 1/2 X 3/32 (inches)KMC Z82 |
| Bottom bracket shell width | 68 (millimeters) English |
| Bottom bracket type | Truvativ Power Spline |
| Crankset parts and sizes | 42/32/22 TeethTruvativ X-Flow |
| Gear shift levers | Shimano Alivio SL-410 |
| Rear gear set | 11 - 30 Teeth8-speed |
KHS XC-104 Fork System Data
| Derailleur (Front) | Shimano Alivio FD-M410L6 |
| Derailleur (Rear) | Shimano Alivio RD-M410SGS |
| Fork material | Not Available |
| Fork type | 100 (millimeters)Spinner Grind OS2 |
Other Specs of KHS XC-104
| Component group sets | Shimano Alivio |
| Pedals details | Resin With Steel Cage With Boron AxleVP-992S |
| Rear shock absorber | 89 (millimeters) TravelMDI Tornado |
| Saddle seat | WTB Speed V Sport |
| Seat post extension | Alloy Micro-adjust SP-213 |

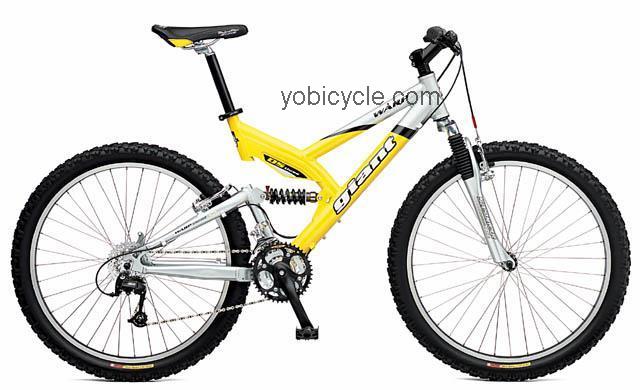

Giant Warp DS3
General Infos| Model | Warp DS3 |
| Manufacturer | Giant |
| Year of production | 2001 |
| Current price | Check price Here ==> |
| Color choice | - Yellow and Silver-Black and Silver |
| Sizes | - Large - medium - small |
Wheels And Breaking System
| Bike front tire | 26 X 2.40 (inches) WTB MotoRaptor |
| Bike rear tire | Not Available |
| Bike wheel size | 26 (inches) Wheels |
| Brakeset type | Shimano EZ-fire LeversAluminum Direct-pull Brakes |
| Hubs for disc brakes | Q and R Rear: Shimano RM40Front: Aluminum |
| Rims manufacturer | 36-holeAluminum |
| Spoke nipples type | Brass Nipples |
| Spoke wheel | 2.0 (millimeters) Straight GaugeStainless Steel |
Frame and Body Specs
| Frame materials | Giant ALUXX 6061 T-6 Aluminum |
| Frame type | TIG-welded |
| Handlebar construction | RiseAluminum |
| Handlebar extender | Optional |
| Handlebar stem details | Aluminum |
| Headset size | 1 1/8 (inches) Threadless Tange Integrated |
Gearing Specifications
| Bicycle chain | 1/2 X 3/32 (inches) |
| Bottom bracket shell width | Not Available |
| Bottom bracket type | Not Available |
| Crankset parts and sizes | 22/32/42 TeethSR MD 252 |
| Gear shift levers | Shimano Acera EZ Fire Plus |
| Rear gear set | 11 - 32 Teeth8-speed |
Giant Warp DS3 Fork System Data
| Derailleur (Front) | Shimano Alivio |
| Derailleur (Rear) | Shimano Alivio |
| Fork material | Triple-clamp CrownAluminum and magnesium |
| Fork type | SR M8040 |
Other Specs of Giant Warp DS3
| Component group sets | Mountain Mix |
| Pedals details | Resin Body With Clips & StrapsSteel Cage |
| Rear shock absorber | 4.5 (inches) TravelGiant Coil-Over |
| Saddle seat | SDG Belair |
| Seat post extension | 30.8 (millimeters) DiameterAluminum Micro-adjust |
