Kona STAB PRIMO 2001 VS Kona DAWG SUPREME 2008 specs comparison

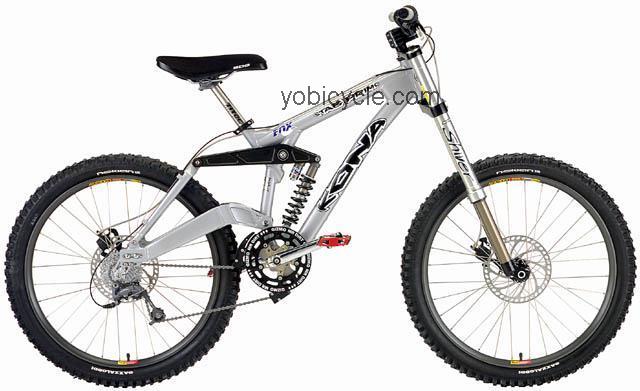

Kona Stab Primo
General Infos| Model | Stab Primo |
| Manufacturer | Kona |
| Year of production | 2001 |
| Current price | Check price Here ==> |
| Color choice |
-Ball Burnished and Polished |
| Sizes |
- Large - medium - small |
| Sizes |
- Large - medium - small |
Wheels And Breaking System
| Bike front tire | 26 X 2.60 (inches) Nokian Gazzalodi |
| Bike rear tire | Not Available |
| Bike wheel size | 26 (inches) Wheels |
| Brakeset type | Hayes Hydraulic Disc Levers Hayes Hydraulic Disc Brakes |
| Hubs for disc brakes | Rear: Ringle 12 (millimeters) DH Front: Ringle 20 (millimeters) DH |
| Rims manufacturer | Mavic D321 Disc |
| Spoke nipples type | Not Available |
| Spoke wheel | DT Stainless Steel |
Frame and Body Specs
| Frame materials | Kona DH 7005 Aluminum |
| Frame type | TIG-welded |
| Handlebar construction | Kona DH Primo Aluminum Riser |
| Handlebar extender | Optional |
| Handlebar stem details | Funn Serial Rippa |
| Headset size | Aheadset SX-1 |
Gearing Specifications
| Bicycle chain | 1/2 X 3/32 (inches) Shimano CN-HG92 |
| Bottom bracket shell width | Not Available |
| Bottom bracket type | Kona OBMX Cromo Splined |
| Crankset parts and sizes | 46 Teeth Kona Bulge Cromoly |
| Gear shift levers | Shimano XTR RapidFire SL |
| Rear gear set | 11 - 28 Teeth 9-speed |
Kona Stab Primo Fork System Data
| Derailleur (Front) | Chain Retention Device Mr. Dirt Gizmo |
| Derailleur (Rear) | Shimano XTR |
| Fork material | Double Triple-clamp Crown Aluminum |
| Fork type | 7.0 (inches) Travel Marzocchi Shiver DH |
Other Specs of Kona Stab Primo
| Component group sets | Downhill Mix |
| Pedals details | Shimano PD-M646 SPD |
| Rear shock absorber | 9.0 (inches) Travel Fox DH |
| Saddle seat | SDG Big Boy DH |
| Seat post extension | Titec Knock DH |
Kona Dawg Supreme
General Infos| Model | Dawg Supreme |
| Manufacturer | Kona |
| Year of production | 2008 |
| Current price | Check price Here ==> |
| Color choice |
-Red |
| Sizes |
- 15 (inches) - 17 (inches) - 18 (inches) - 19 (inches) - 20 (inches) - 22 (inches) |
Wheels And Breaking System
| Bike front tire | 26 X 2.35 (inches) Maxxis Ignitor |
| Bike rear tire | Not Available |
| Bike wheel size | 26 (inches) Wheels |
| Brakeset type | Shimano XT Levers Shimano XT Disc Brakes |
| Hubs for disc brakes | Mavic Crossmax ST |
| Rims manufacturer | Mavic Crossmax ST |
| Spoke nipples type | Not Available |
| Spoke wheel | Mavic |
Frame and Body Specs
| Frame materials | Kona Race Light Scandium Butted |
| Frame type | TIG-welded |
| Handlebar construction | Race Face Deus XC Riser OS |
| Handlebar extender | Optional |
| Handlebar stem details | Race Face Deus XC |
| Headset size | FSA Orbit DL |
Gearing Specifications
| Bicycle chain | Shimano HG73-9 |
| Bottom bracket shell width | Not Available |
| Bottom bracket type | Race Face Deus XC X-Type |
| Crankset parts and sizes | 22/32/44 Teeth Race Face Deus XC X-Type |
| Gear shift levers | Shimano XT |
| Rear gear set | 11 - 34 Teeth 9-speed |
Kona Dawg Supreme Fork System Data
| Derailleur (Front) | Shimano XT |
| Derailleur (Rear) | Shimano XTR Shadow |
| Fork material | Single Crown Aluminum and magnesium |
| Fork type | 140 (millimeters) Travel Fox Float RLC |
Other Specs of Kona Dawg Supreme
| Component group sets | Shimano XT |
| Pedals details | Shimano PD-M540 |
| Rear shock absorber | 5 (inches) Travel Fox Float RP23 |
| Saddle seat | WTB Laser V Race |
| Seat post extension | Race Face Deus XC |
