Kona STAB SUPREME 2005 VS Giant AC 2 2004 specs comparison

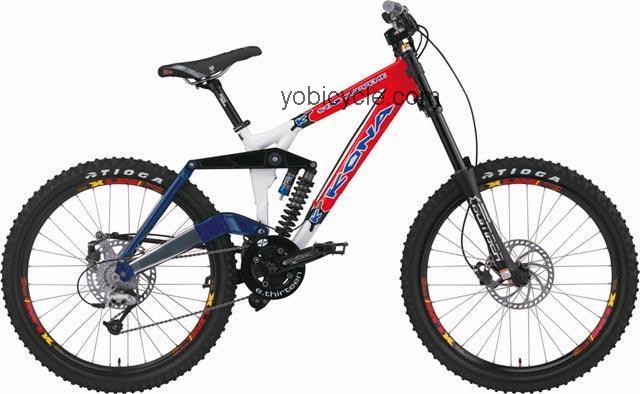

Kona Stab Supreme
General InfosModel | Stab Supreme |
Manufacturer | Kona |
Year of production | 2005 |
Current price | Check price Here ==> |
Color choice | -Red and White and Blue |
Sizes | - Short. medium - long |
Sizes | - Short. medium - long |
Wheels And Breaking System
Bike front tire | 26 X 2.50 (inches) Tioga White Tiger |
Bike rear tire | Not Available |
Bike wheel size | 26 (inches) Wheels |
Brakeset type | Hayes El Camino LeversHayes El Camino Brakes |
Hubs for disc brakes | Rear: Sun Ringle Abbah 12 (millimeters)Front: Sun Ringle Abbah DH |
Rims manufacturer | 32-holeSun Rims MTX |
Spoke nipples type | Brass Nipples |
Spoke wheel | 14ga. Straight GaugeStainless Steel |
Frame and Body Specs
Frame materials | Aluminum |
Frame type | TIG-welded |
Handlebar construction | RaceFace Diabolous |
Handlebar extender | Not Available |
Handlebar stem details | Race Face Evolve DH |
Headset size | 1 1/8 (inches) Threadless FSA The Pig DH Pro |
Gearing Specifications
Bicycle chain | 1/2 X 3/32 (inches)Shimano CN-HG73 |
Bottom bracket shell width | Not Available |
Bottom bracket type | Race Face Diabolus X-Type |
Crankset parts and sizes | 36 TeethRaceFace Diabolous X-Type |
Gear shift levers | Shimano Deore XT |
Rear gear set | 11 - 32 Teeth9-speed |
Kona Stab Supreme Fork System Data
Derailleur (Front) | Chain-retention DeviceE Thirteen MTX |
Derailleur (Rear) | Shimano Deore XT SGS |
Fork material | Dual CrownAluminum |
Fork type | 200 (millimeters) TravelMarzocchi 888 RC |
Other Specs of Kona Stab Supreme
Component group sets | Downhill Mix |
Pedals details | Shimano PD-M646 SPD |
Rear shock absorber | Fox Vanilla DHX |
Saddle seat | WTB Power V DH Race |
Seat post extension | Race Face Diabolus |

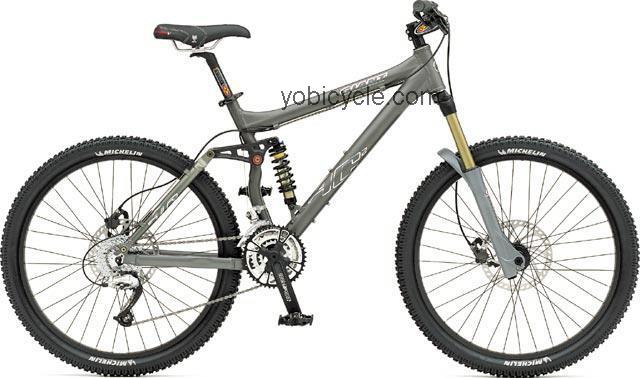

Giant AC 2
General InfosModel | AC 2 |
Manufacturer | Giant |
Year of production | 2004 |
Current price | Check price Here ==> |
Color choice | -Satin Gray |
Sizes | - 17 (inches)- 18 (inches)- 19 (inches) |
Wheels And Breaking System
Bike front tire | 26 X 2.50 (inches) Michelin DH Comp |
Bike rear tire | Not Available |
Bike wheel size | 26 (inches) Wheels |
Brakeset type | Hayes HFX-9 Hydraulic Disc LeversHayes HFX-9 Hydraulic Disc Brakes |
Hubs for disc brakes | 20 (millimeters) Axle Rear: Shimano Deore XTFront: Aluminum Disc |
Rims manufacturer | 36-holeSun Rims Rhyno Lite XL |
Spoke nipples type | Brass Nipples |
Spoke wheel | 14ga. Straight GaugeStainless Steel |
Frame and Body Specs
Frame materials | Aluxx SL Aluminum |
Frame type | TIG-welded |
Handlebar construction | Easton EA50 |
Handlebar extender | Optional |
Handlebar stem details | Easton Vice 31.8 (millimeters) |
Headset size | 1 1/8 (inches) Threadless FSA Integrated |
Gearing Specifications
Bicycle chain | 1/2 X 3/32 (inches) |
Bottom bracket shell width | 68 (millimeters) American |
Bottom bracket type | Not Available |
Crankset parts and sizes | 22/32/44 TeethRace Face Evolve DH ISIS |
Gear shift levers | Shimano Deore LX RapidFire SL |
Rear gear set | 11 - 34 Teeth9-speed |
Giant AC 2 Fork System Data
Derailleur (Front) | Top-pull and clamp-on 35.0 (millimeters)Shimano Deore XT |
Derailleur (Rear) | Shimano Deore XT SGS |
Fork material | Single CrownAluminum and magnesium |
Fork type | 4.3 (inches)-5.1 (inches) Adjustable TravelAnswer Manitou Sherman Firefly SPV |
Other Specs of Giant AC 2
Component group sets | Mountain Mix |
Pedals details | Time ATAC Z |
Rear shock absorber | 5.50 (inches) - 6.50 (inches) Adjustable TravelAnswer Manitou Swinger SPV |
Saddle seat | WTB Laser V |
Seat post extension | 27.2 (millimeters) DiameterEaston EA50 |
