Marin NAIL TRAIL 2009 VS Raleigh M30 2001 specs comparison
Marin Nail Trail
General Infos| Model | Nail Trail |
| Manufacturer | Marin |
| Year of production | 2009 |
| Current price | Check price Here ==> |
| Color choice |
-Silver Mercury |
| Sizes |
- 13 (inches) - 15 (inches) - 17 (inches) - 19 (inches) - 20.5 (inches) - 22 (inches) |
| Sizes |
- 13 (inches) - 15 (inches) - 17 (inches) - 19 (inches) - 20.5 (inches) - 22 (inches) |
Wheels And Breaking System
| Bike front tire | 26 X 2.10 (inches) WTB Prowler MX |
| Bike rear tire | Not Available |
| Bike wheel size | 26 (inches) Wheels |
| Brakeset type | Avid Juicy 3 Levers Avid Juicy 3 With 160 (millimeters) Rotor Brakes |
| Hubs for disc brakes | Shimano Deore Disc |
| Rims manufacturer | 32-hole Mavic XM 117 |
| Spoke nipples type | Not Available |
| Spoke wheel | 15ga. WTB Stainless |
Frame and Body Specs
| Frame materials | 6061 Triple Butted Aluminum |
| Frame type | TIG-welded |
| Handlebar construction | Double Butted 6061 Alloy OS Riser |
| Handlebar extender | Optional |
| Handlebar stem details | FSA OS-150LX |
| Headset size | 1 1/8 (inches) TH-888 |
Gearing Specifications
| Bicycle chain | Shimano HG-53 |
| Bottom bracket shell width | Not Available |
| Bottom bracket type | TruVativ GXP |
| Crankset parts and sizes | 22/32/44 Teeth TruVativ Firex 3.2 |
| Gear shift levers | Shimano SLX RapidFire |
| Rear gear set | 11 - 34 Teeth 9-speed |
Marin Nail Trail Fork System Data
| Derailleur (Front) | Shimano SLX |
| Derailleur (Rear) | Shimano XT Shadow |
| Fork material | Single |
| Fork type | 100 (millimeters) Travel Fox 32 F100R |
Other Specs of Marin Nail Trail
| Component group sets | Shimano SLX |
| Pedals details | Shimano PD-M520 |
| Rear shock absorber | Not Available |
| Saddle seat | WTB Laser V Comp |
| Seat post extension | 30.9 (millimeters) Diameter FSA SL-280 |

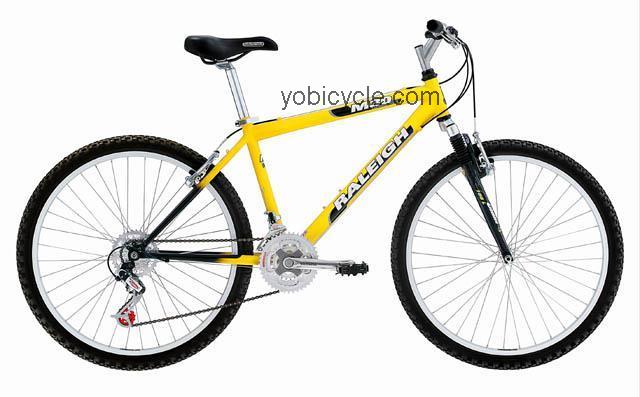

Raleigh M30
General Infos| Model | M30 |
| Manufacturer | Raleigh |
| Year of production | 2001 |
| Current price | Check price Here ==> |
| Color choice |
- Periwinkle - Yellow Flash 2 Black -Blue Spark |
| Sizes |
- Large - medium - small - womens medium - womens small - womens xsmall - xlarge - xsmall - xxsmall |
Wheels And Breaking System
| Bike front tire | 26 X 1.95 (inches) Multi-terrain |
| Bike rear tire | Not Available |
| Bike wheel size | 26 (inches) Wheels |
| Brakeset type | Shimano Linear-pull Levers ProMax Linear-pull Brakes |
| Hubs for disc brakes | Aluminum O and S |
| Rims manufacturer | 36-hole Alex Y-2000 |
| Spoke nipples type | Not Available |
| Spoke wheel | 14g Stainless Steel |
Frame and Body Specs
| Frame materials | Hi-tensile Steel |
| Frame type | TIG-welded |
| Handlebar construction | Steel |
| Handlebar extender | Optional |
| Handlebar stem details | Steel |
| Headset size | 1 1/8 (inches) Threadless Steel |
Gearing Specifications
| Bicycle chain | 1/2 X 3/32 (inches) KMC Z-51 |
| Bottom bracket shell width | Not Available |
| Bottom bracket type | Cartridge |
| Crankset parts and sizes | 24/34/42 Teeth Shimano Tourney |
| Gear shift levers | Shimano Acera EZ Fire Plus |
| Rear gear set | 13 - 34 Teeth 7-speed |
Raleigh M30 Fork System Data
| Derailleur (Front) | Shimano Tourney TY-10 |
| Derailleur (Rear) | Shimano Tourney TY-40 |
| Fork material | Triple-clamp Crown Aluminum and magnesium |
| Fork type | RST 156LA |
Other Specs of Raleigh M30
| Component group sets | Mountain Mix |
| Pedals details | Aluminum and resin With Clips And Straps |
| Rear shock absorber | Not Available |
| Saddle seat | Selle Stratos ATB |
| Seat post extension | Suspension Aluminum |
