Merlin NEWSBOY 1998 VS Diamondback PEAK 2006 specs comparison

Merlin Newsboy

General Infos

Model	Newsboy
Manufacturer	Merlin
Year of production	1998
Current price	Check price Here ==>
Color choice	-Brushed
Sizes	- 15 (inches) - 17 (inches) - 19 (inches)
Sizes	- 15 (inches) - 17 (inches) - 19 (inches)

Wheels And Breaking System

Bike front tire	26 X 2.10 (inches) WTB VelociRaptor Kevlar
Bike rear tire	Not Available
Bike wheel size	26 (inches) Wheels
Brakeset type	Shimano XTR Levers Shimano XTR V-Brake Brakes
Hubs for disc brakes	Shimano Deore XT
Rims manufacturer	32-hole Mavic 217 SUP
Spoke nipples type	Alloy Nipples
Spoke wheel	2.0 (millimeters) Double-butted Wheelsmith Stainless Steel

Frame and Body Specs

Frame materials	3Al and 2.5V Titanium
Frame type	TIG-welded
Handlebar construction	Syncros Hardcore
Handlebar extender	Optional
Handlebar stem details	Syncros Hardcore
Headset size	1 1/8 (inches) Threadless Chris King NoThreadSet

Gearing Specifications

Bicycle chain	1/2 X 3/32 (inches) Shimano CN-HG90
Bottom bracket shell width	68 (millimeters) English
Bottom bracket type	112.5 (millimeters) Spindle Shimano BB-M950
Crankset parts and sizes	24/34/46 Teeth Shimano XTR M950
Gear shift levers	Shimano XTR RapidFire SL
Rear gear set	11 - 34 Teeth 8-speed

Merlin Newsboy Fork System Data

Derailleur (Front)	Bottom-pull and clamp-on 35.0 (millimeters) Shimano XTR
Derailleur (Rear)	Shimano XTR SGS
Fork material	Triple-clamp Crown Aluminum and magnesium
Fork type	Rock Shox Judy SL

Other Specs of Merlin Newsboy

Component group sets	Shimano XTR
Pedals details	Optional
Rear shock absorber	Not Available
Saddle seat	Bontrager With Titanium Rails
Seat post extension	27.2 (millimeters) Diameter Syncros Hardcore Aluminum

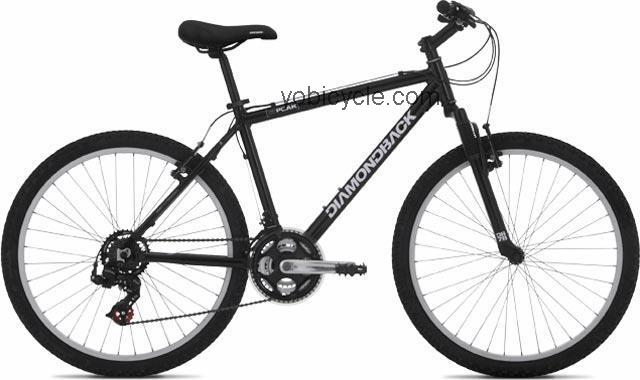

Diamondback Peak

General Infos

Model	Peak
Manufacturer	Diamondback
Year of production	2006
Current price	Check price Here ==>
Color choice	- Gloss Pink - Gloss Purple - Gloss Tough Orange -Gloss Black
Sizes	- XXS (12) (inches) - XS (14) (inches) - SM (inches) - MD (18) (inches) - LG (20) (inches) - XL (22) (inches) - WXS (12) (inches) - WS (inches) - WM (inches)

Wheels And Breaking System

Bike front tire	Kenda K-831 Dual Sport
Bike rear tire	Not Available
Bike wheel size	Not Available
Brakeset type	Shimano Easy Fire EF-29 Levers Alloy Linear Brakes
Hubs for disc brakes	Q and R Rear: Aluminum Freewheel Front: Aluminum
Rims manufacturer	32-hole R-1000 Alloy
Spoke nipples type	Not Available
Spoke wheel	14ga. Straight Gauge Stainless Steel

Frame and Body Specs

Frame materials	6013 T6 Aluminum
Frame type	TIG-welded
Handlebar construction	Steel Riser
Handlebar extender	Optional
Handlebar stem details	Aluminum Threadless
Headset size	1 1/8 (inches) Threadless Ahead 1 1/8 (inches)

Gearing Specifications

Bicycle chain	1/2 X 3/32 (inches) KMC Z51
Bottom bracket shell width	Not Available
Bottom bracket type	Cartridge
Crankset parts and sizes	28/38/48 Teeth SR Suntour XR100
Gear shift levers	Shimano EF-29 Rapid Fire
Rear gear set	14 - 34 Teeth 7-speed

Diamondback Peak Fork System Data

Derailleur (Front)	Shimano Tourney
Derailleur (Rear)	Shimano Tourney TX-50
Fork material	Single Crown Aluminum
Fork type	SR and Suntour M2000

Other Specs of Diamondback Peak

Component group sets	Not Available
Pedals details	MTB Resin
Rear shock absorber	Not Available
Saddle seat	Men's and Women's Specific Avenir ATB
Seat post extension	27.2 (millimeters) Diameter Aluminum Micro-adjust
