Schwinn Rocket LTD 2006 Technical specs and features
| Brand | Schwinn |
| Model | Rocket LTD |
| First production | 2006 |
| Bike category | Mountain Bike |
| Bike sub-category | Mountain With Dual Suspension |
| Bike Pricing | Check price Here ==> |
| Parts And Accessories | Schwinn Rocket LTD Parts |
| Available Sizes | - 16 (inches) / 40.64 (cm) - 16 (inches) - 17 (inches) / 43.18 (cm) - 17 (inches) - 19 (inches) / 48.26 (cm) - 19 (inches) - 21.5 (inches) / 54.61 (cm) - 21.5 (inches) |
Wheels And Breaking System
| Bike front tire | 26 X 2.24 (inches) WTB MotoRaptor |
| Bike rear tire | Not Available |
| Bike wheel size | 26 (inches) Wheels |
| Brakeset type | Shimano Hone Dual Control STI Disc Brake Levers Shimano Hone Hydraulic Disc Brakes |
| Hubs for disc brakes | Rear: Shimano Hone FH-M600 Front: Shimano Hone HB-M600 |
| Rims manufacturer | 32-hole Ritchey Disc OCR |
| Spoke nipples type | Brass Nipples |
| Spoke wheel | 14ga. Straight Gauge Stainless Steel |
Frame and Body Specifications
| Frame materials | 7005 aluminum c |
| Frame type | TIG-welded |
| Handlebar construction | Truvativ XR |
| Handlebar extender | Not Available |
| Handlebar stem details | Truvativ XR 3D |
| Headset size | 1 1/8 (inches) Threadless Cane Creek |
Gearing Specs
| Bicycle chain | Shimano CN-HG73 |
| Bottom bracket shell width | Not Available |
| Bottom bracket type | TruVativ GXP |
| Crankset parts and sizes | 22/32/44 Teeth Truvativ Stylo Team |
| Gear shift levers | Shimano Hone Dual-Control |
| Rear gear set | 11 - 34 Teeth 9-speed |
Schwinn Rocket LTD Fork System Data
| Derailleur (Front) | Top-pull and clamp-on 34.9 (millimeters) Shimano Hone FD-M600 |
| Derailleur (Rear) | Shimano Hone |
| Fork material | Single Crown Aluminum and magnesium |
| Fork type | 120 (millimeters) Travel Manitou Black Platinum |
Other Specs of Schwinn Rocket LTD
| Component group sets | Shimano Hone |
| Available colors | - Clay and Chalk |
| Weight | Unspecified |
| Pedals details | Crank Brothers Candy C |
| Rear shock absorber | 5.5 (inches) Travel Manitou Radium R |
| Saddle seat | WTB Laser V Race |
| Seat post extension | 31.6 (millimeters) Diameter Truvativ XR 6061 Single Bolt |

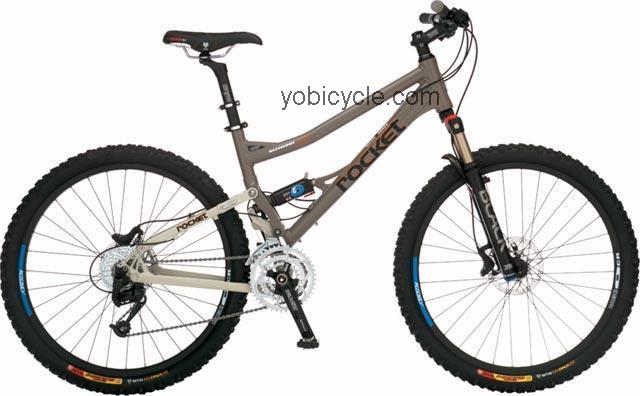

Schwinn Rocket LTD picture
Rocket LTD bike comparison
Schwinn Rocket LTD VooDoo Canzo AL (34)
Schwinn Rocket LTD Haro Shift R5
Schwinn Rocket LTD Trek Gary Fisher Rumblefish
Schwinn Rocket LTD KHS Montana FXT-Comp
Schwinn Rocket LTD bike review
Schwinn produced the Rocket LTD bike in 2006 and can be classified as a Mountain bike bicycle, this exact model costs in american market arround $1,699.99.
Rocket LTD bike is available in many sizes such as 16 (inches), 17 (inches), 19 (inches) and 21.5 (inches).
Schwinn Mountain bike Rocket LTD can be found in a few colors, among these colors Clay and Chalk .
This bike is equiped with 26 x 2.24" WTB MotoRaptor tires and Stainless steel spoke wheel while the rims are manufactured by Ritchey Disc OCR, 32-hole. Schwinn equiped this exact model with Shimano Hone Hydraulic Disc brakes, Shimano Hone Dual Control STI Disc Brake levers braking system and Front: Shimano Hone HB-M600, Rear: Shimano Hone FH-M600 hubs.
To guarantee the comfiest ride Schwinn used 7005 aluminum material for the frame. Truvativ XR high strength material is used on the handlebar of this Rocket LTD to ensure the perfect handling while the stems are made of Truvativ XR 3D.
For the smoothest biking experience Truvativ Stylo Team, 22/32/44 teeth is used on this bicycle linked to Shimano CN-HG73 chain that is easily replaceable as stated by Schwinn, the whole system is connected to a high reliability Shimano Hone Dual-Control gear shift levers.
