Norco B-LINE 2009 VS Raleigh RAM 1.0 2004 specs comparison

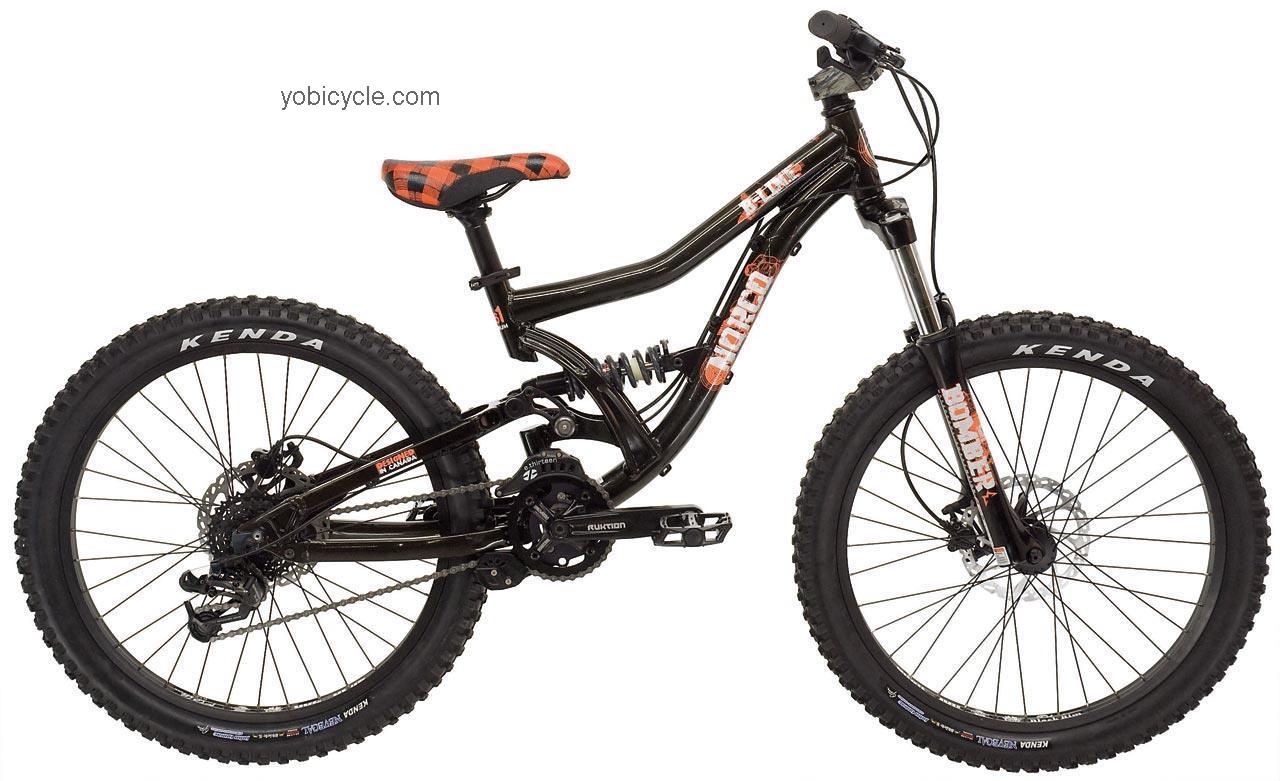

Norco B-Line
General Infos| Model | B-Line |
| Manufacturer | Norco |
| Year of production | 2009 |
| Current price | Check price Here ==> |
| Color choice | -Black |
| Sizes | - Small |
| Sizes | - Small |
Wheels And Breaking System
| Bike front tire | 24 X 2.50 (inches) Kenda Nevegal |
| Bike rear tire | Not Available |
| Bike wheel size | 24 (inches) Wheels |
| Brakeset type | Hayes Stroker Ryde LeversHayes Stroker Ryde With 7 (inches) Rotor Brakes |
| Hubs for disc brakes | 135x10 Axle Rear: KTFront: KT Alloy Black |
| Rims manufacturer | 36-holeAlienation PBR |
| Spoke nipples type | Not Available |
| Spoke wheel | 14ga. Straight GaugeStainless |
Frame and Body Specs
| Frame materials | Hydraformed Aluminum |
| Frame type | TIG-welded |
| Handlebar construction | Funn Fatboy |
| Handlebar extender | Optional |
| Handlebar stem details | Funn Rippa |
| Headset size | 1 1/8 (inches) Threadless FSA TH-855 |
Gearing Specifications
| Bicycle chain | 1/2 X 3/32 (inches)KMC Z72 |
| Bottom bracket shell width | Not Available |
| Bottom bracket type | TruVativ Howitzer |
| Crankset parts and sizes | 36 TeethTruvativ Ruktion With E-13 LS-40 |
| Gear shift levers | SRAM X.4 Trigger |
| Rear gear set | 11 - 32 Teeth8-speed |
Norco B-Line Fork System Data
| Derailleur (Front) | Not Available |
| Derailleur (Rear) | SRAM X.4 |
| Fork material | Single |
| Fork type | 120 (millimeters) TravelMarzocchi Dirt Jumper 3 |
Other Specs of Norco B-Line
| Component group sets | SRAM Mix |
| Pedals details | Alloy Platform |
| Rear shock absorber | 5.5 (inches) TravelMarzocchi Coil R |
| Saddle seat | Norco Shore |
| Seat post extension | 27.2 (millimeters) DiameterTruvativ |
Raleigh Ram 1.0
General Infos| Model | Ram 1.0 |
| Manufacturer | Raleigh |
| Year of production | 2004 |
| Current price | Check price Here ==> |
| Color choice | -Not found |
| Sizes | - 16 (inches)- 18 (inches)- 20 (inches) |
Wheels And Breaking System
| Bike front tire | 26 X 2.10 (inches) Kenda Klaw |
| Bike rear tire | Not Available |
| Bike wheel size | 26 (inches) Wheels |
| Brakeset type | Shimano Altus EF-29 LeversProMax Disc Brakes |
| Hubs for disc brakes | Aluminum Disc Q and R |
| Rims manufacturer | 36-holeAlex Aluminum |
| Spoke nipples type | Brass Nipples |
| Spoke wheel | 14ga. Straight GaugeStainless Steel |
Frame and Body Specs
| Frame materials | 7005 aluminum c |
| Frame type | TIG-welded |
| Handlebar construction | 1.25 (inches) RiseAluminum |
| Handlebar extender | Optional |
| Handlebar stem details | Aluminum Threadless |
| Headset size | 1 1/8 (inches) Threadless WTB |
Gearing Specifications
| Bicycle chain | 1/2 X 3/32 (inches)KMC IG-31 |
| Bottom bracket shell width | Not Available |
| Bottom bracket type | Cartridge |
| Crankset parts and sizes | 22/32/42 TeethShimano Alivio FC-MC19-L |
| Gear shift levers | Shimano Altus EF-29 |
| Rear gear set | 11 - 30 Teeth8-speed |
Raleigh Ram 1.0 Fork System Data
| Derailleur (Front) | Shimano Acera |
| Derailleur (Rear) | Shimano Alivio |
| Fork material | Single CrownAluminum |
| Fork type | 100 (millimeters) TravelAnswer Manitou Six |
Other Specs of Raleigh Ram 1.0
| Component group sets | Mountain Mix |
| Pedals details | Resin MTB |
| Rear shock absorber | 3.0 (inches) Travel |
| Saddle seat | Avenir ATB Vinyl |
| Seat post extension | Aluminum Micro-adjust |
