Norco SCRAMBLER 2007 VS Jamis DRAGON 1997 specs comparison

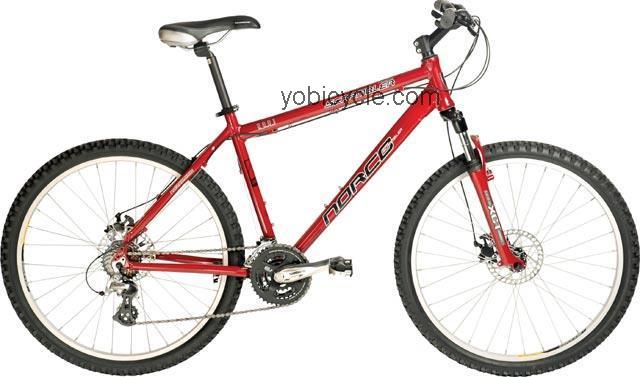

Norco Scrambler
General Infos| Model | Scrambler |
| Manufacturer | Norco |
| Year of production | 2007 |
| Current price | Check price Here ==> |
| Color choice |
- Red -Black |
| Sizes |
- 12.5 (inches) - 15 (inches) - 17 (inches) - 18.5 (inches) - 20 (inches) - 22 (inches) |
| Sizes |
- 12.5 (inches) - 15 (inches) - 17 (inches) - 18.5 (inches) - 20 (inches) - 22 (inches) |
Wheels And Breaking System
| Bike front tire | 26 X 2.10 (inches) Vee Rubber |
| Bike rear tire | Not Available |
| Bike wheel size | 26 (inches) Wheels |
| Brakeset type | Shimano EF-50 Levers Hayes MX4 Mechanical With 6 (inches) Rotor Brakes |
| Hubs for disc brakes | KT Disc |
| Rims manufacturer | 32-hole Weinmann Double Wall |
| Spoke nipples type | Not Available |
| Spoke wheel | 14ga. Stainless Steel |
Frame and Body Specs
| Frame materials | Aluminum |
| Frame type | TIG-welded |
| Handlebar construction | AL-153 Aluminum |
| Handlebar extender | Optional |
| Handlebar stem details | Alloy |
| Headset size | CH-918 |
Gearing Specifications
| Bicycle chain | KMC Z72 |
| Bottom bracket shell width | Not Available |
| Bottom bracket type | Not Available |
| Crankset parts and sizes | 24/34/42 Teeth Shimano TX70 |
| Gear shift levers | Shimano EF-50 |
| Rear gear set | 11 - 30 Teeth 8-speed |
Norco Scrambler Fork System Data
| Derailleur (Front) | Shimano FD-C051 |
| Derailleur (Rear) | Shimano Altus |
| Fork material | Single Crown Aluminum and steel |
| Fork type | 75 (millimeters) Travel Suntour XCT-75 |
Other Specs of Norco Scrambler
| Component group sets | Shimano Mix |
| Pedals details | Wellgo LU-207 |
| Rear shock absorber | Not Available |
| Saddle seat | Norco Adventure Custom |
| Seat post extension | 27.2 (millimeters) Diameter Norco Alloy Micro Adjust |
Jamis Dragon
General Infos| Model | Dragon |
| Manufacturer | Jamis |
| Year of production | 1997 |
| Current price | Check price Here ==> |
| Color choice |
-Red |
| Sizes |
- 11 (inches) - 13 (inches) - 15 (inches) - 17 (inches) - 19 (inches) - 21 (inches) |
Wheels And Breaking System
| Bike front tire | 26 X 2.10 (inches) WTB VelociRaptor Kevlar |
| Bike rear tire | Not Available |
| Bike wheel size | 26 (inches) Wheels |
| Brakeset type | Avid SD-3.0 Levers Shimano Deore XT V-Brake Brakes |
| Hubs for disc brakes | Shimano Deore XT |
| Rims manufacturer | 32-hole Rear: Mavic 221 Front: Mavic 220 |
| Spoke nipples type | Alloy Nipples |
| Spoke wheel | 2.0 (millimeters) Double Butted Shuhn Lih Stainless Steel |
Frame and Body Specs
| Frame materials | Reynolds 853 |
| Frame type | TIG-welded |
| Handlebar construction | Titec Enduro 155 |
| Handlebar extender | Titec L-Bend |
| Handlebar stem details | Syncros Cattlehead |
| Headset size | 1 1/8 (inches) Threadless Dia-Compe Kontak Aheadset DLC |
Gearing Specifications
| Bicycle chain | 1/2 X 3/32 (inches) Shimano CN-IG90 |
| Bottom bracket shell width | 68 (millimeters) English |
| Bottom bracket type | 110 (millimeters) Spindle Shimano BB-UN72 |
| Crankset parts and sizes | 22/32/42 Teeth Shimano Deore XT |
| Gear shift levers | Grip Shift ESP 900 |
| Rear gear set | 11 - 28 Teeth 8-speed |
Jamis Dragon Fork System Data
| Derailleur (Front) | Top-pull and clamp-on 28.6 (millimeters) Shimano Deore XT Top-swing |
| Derailleur (Rear) | Grip Shift ESP 9.0 |
| Fork material | Triple-clamp Crown Aluminum |
| Fork type | Answer Manitou SX |
Other Specs of Jamis Dragon
| Component group sets | Grip Shift and Shimano Deore XT |
| Pedals details | Wellgo WPD-700 |
| Rear shock absorber | Not Available |
| Saddle seat | Manganese Rails Vetta AT Transverse |
| Seat post extension | 27.0 (millimeters) Diameter Titec AL-235 |
