Norco XFR FORMA 2010 VS Raleigh C200 2004 specs comparison
Norco XFR Forma
General Infos| Model | XFR Forma |
| Manufacturer | Norco |
| Year of production | 2010 |
| Current price | Check price Here ==> |
| Color choice | -Grey |
| Sizes | - 13 - 15 - 17 - 19 |
| Sizes | - 13 - 15 - 17 - 19 |
Wheels And Breaking System
| Bike front tire | 700 X 37c Continental Double Fighter |
| Bike rear tire | Not Available |
| Bike wheel size | 700c Wheels |
| Brakeset type | WSD Alloy LeversHayes MX4 Mechanical Disc With 160 (millimeters) Rotors Brakes |
| Hubs for disc brakes | Rear: Shimano Deore FH-M475 DiscFront: Formula Disc |
| Rims manufacturer | 32-holeStrongman DDM-1 Double Wall |
| Spoke nipples type | Brass |
| Spoke wheel | Stainless |
Frame and Body Specs
| Frame materials | 7005 Double Butted Aluminum |
| Frame type | TIG-welded |
| Handlebar construction | Norco Alloy Riser |
| Handlebar extender | Optional |
| Handlebar stem details | 3D Forged |
| Headset size | FSA No. 11N |
Gearing Specifications
| Bicycle chain | KMC Z72 |
| Bottom bracket shell width | Not Available |
| Bottom bracket type | FSA BB 7420 Square Taper |
| Crankset parts and sizes | 28/38/48 TeethFSA Dyna Drive |
| Gear shift levers | SRAM X.4 Trigger |
| Rear gear set | 11 - 28 Teeth8-speed |
Norco XFR Forma Fork System Data
| Derailleur (Front) | SRAM 3.0 |
| Derailleur (Rear) | SRAM X.4 |
| Fork material | Single |
| Fork type | SunTour NEX4610 V2 MLO With Lock-out |
Other Specs of Norco XFR Forma
| Component group sets | Hybrid Mix |
| Pedals details | Alloy Body and Steel Cage |
| Rear shock absorber | Not Available |
| Saddle seat | Norco Forma Sport |
| Seat post extension | Norco Alloy Micro Adjust |

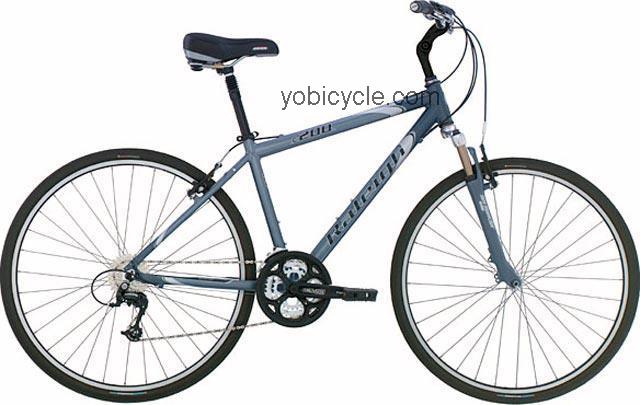

Raleigh C200
General Infos| Model | C200 |
| Manufacturer | Raleigh |
| Year of production | 2004 |
| Current price | Check price Here ==> |
| Color choice | -Not found |
| Sizes | - 15 (inches)- 17 (inches)- 19 (inches)- 21 (inches)- 23 (inches)- womens 16 (inches)- womens 19 (inches) |
Wheels And Breaking System
| Bike front tire | 700 X 35c Kenda Cross |
| Bike rear tire | Not Available |
| Bike wheel size | 700c Wheels |
| Brakeset type | Shimano ST-EF29 EZ Fire STI LeversTektro Linear-pull Brakes |
| Hubs for disc brakes | Q and R Rear: Shimano HB-RM40Front: Aluminum |
| Rims manufacturer | 36-holeAlex Aluminum |
| Spoke nipples type | Brass Nipples |
| Spoke wheel | 14ga. Straight GaugeStainless Steel |
Frame and Body Specs
| Frame materials | Double-butted7005 Aluminum |
| Frame type | TIG-welded |
| Handlebar construction | 1 (inches) RiseSteel |
| Handlebar extender | Optional |
| Handlebar stem details | AdjustableAluminum |
| Headset size | 1 1/8 (inches) Threadless Steel |
Gearing Specifications
| Bicycle chain | 1/2 X 3/32 (inches) |
| Bottom bracket shell width | Not Available |
| Bottom bracket type | TruVativ Cartridge |
| Crankset parts and sizes | 28/38/48 TeethTruVativ Firex Trek |
| Gear shift levers | Shimano ST-EF29 EZ Fire STI |
| Rear gear set | 11 - 32 Teeth8-speed |
Raleigh C200 Fork System Data
| Derailleur (Front) | Shimano FD-T401 |
| Derailleur (Rear) | Shimano Deore |
| Fork material | Single CrownAluminum and magnesium |
| Fork type | 63 (millimeters) TravelSR Suntour NEX-4000 |
Other Specs of Raleigh C200
| Component group sets | Hybrid Mix |
| Pedals details | Avenir Comfort Dual Density |
| Rear shock absorber | Not Available |
| Saddle seat | Avenir Cross Elastomer Spring |
| Seat post extension | SuspensionAluminum |
