Raleigh M-20 1995 VS Schwinn FRONTIER GS 1999 specs comparison
Raleigh M-20
General Infos| Model | M-20 |
| Manufacturer | Raleigh |
| Year of production | 1995 |
| Current price | Check price Here ==> |
| Color choice |
-Candy green -candy hot burgundy -metorite night |
| Sizes |
- 14.5 (inches) - 16.5 (inches) - 18 (inches) - 20 (inches) - 22 (inches) - womens 16 (inches) - womens 19 (inches) |
| Sizes |
- 14.5 (inches) - 16.5 (inches) - 18 (inches) - 20 (inches) - 22 (inches) - womens 16 (inches) - womens 19 (inches) |
Wheels And Breaking System
| Bike front tire | 26 X 1.95 (inches) Kenda Multi-Terrain |
| Bike rear tire | Not Available |
| Bike wheel size | 26 (inches) Wheels |
| Brakeset type | Lee Chi 319A Levers Lee Chi Alloy Brakes |
| Hubs for disc brakes | Q and R Front Joy Tech FW Hubset |
| Rims manufacturer | 36-hole Weinmann 4019 |
| Spoke nipples type | Brass Nipples |
| Spoke wheel | 2.0 (millimeters) Straight Gauge |
Frame and Body Specs
| Frame materials | Chromoly Seat Tube and Hi-tensile Steel |
| Frame type | TIG-welded Steel |
| Handlebar construction | Steel |
| Handlebar extender | Optional |
| Handlebar stem details | Steel |
| Headset size | 1 (inches) Tien Hsin TH Steel |
Gearing Specifications
| Bicycle chain | 1/2 X 3/32 (inches) Shimano CN-UG50 |
| Bottom bracket shell width | Not Available |
| Bottom bracket type | Not Available |
| Crankset parts and sizes | 28/38/48 Teeth Tracer MT-1i |
| Gear shift levers | Shimano Tourney TY20 Top-mount |
| Rear gear set | 14 - 28 Teeth 6-speed |
Raleigh M-20 Fork System Data
| Derailleur (Front) | Bottom-pull and clamp-on 28.6 (millimeters) Shimano Tourney TY-25 |
| Derailleur (Rear) | Shimano Tourney TY20 |
| Fork material | Unicrown Crown Hi-tensile Steel |
| Fork type | Not Available |
Other Specs of Raleigh M-20
| Component group sets | Shimano Tourney TY-20 |
| Pedals details | Toe-clip Attachable Wellgo Hi-Impact Resin |
| Rear shock absorber | Not Available |
| Saddle seat | Velo Supersoft |
| Seat post extension | 26.0 (millimeters) Diameter Steel |

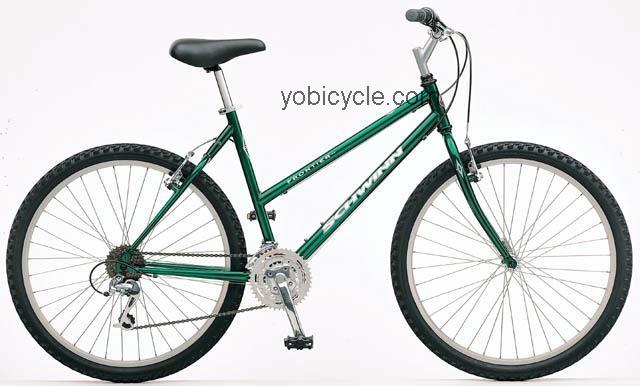

Schwinn Frontier GS
General Infos| Model | Frontier GS |
| Manufacturer | Schwinn |
| Year of production | 1999 |
| Current price | Check price Here ==> |
| Color choice |
- Cherry Black - Dark Burgundy -Bright Mirror Green |
| Sizes |
- 13 (inches) - 15 (inches) - 17 (inches) - 19 (inches) - 21 (inches) - 23 (inches) - womens 16 (inches) - womens 19 (inches) - womens 21 (inches) |
Wheels And Breaking System
| Bike front tire | 26 X 1.95 (inches) Multi-terrain |
| Bike rear tire | Not Available |
| Bike wheel size | 26 (inches) Wheels |
| Brakeset type | Tektro Linear-pull Levers Tektro 824A Linear-pull Brakes |
| Hubs for disc brakes | Q and R Rear: Shimano RM40 Front: Formula Aluminum |
| Rims manufacturer | 36-hole Alloy |
| Spoke nipples type | Brass Nipples |
| Spoke wheel | 2.0 (millimeters) Straight Gauge Stainless Steel |
Frame and Body Specs
| Frame materials | Chromoly Main Triangle and hi-tensile Steel Rear Stays |
| Frame type | TIG-welded |
| Handlebar construction | 2 (inches) Rise Steel |
| Handlebar extender | Optional |
| Handlebar stem details | Rise Steel |
| Headset size | 1 1/8 (inches) Steel |
Gearing Specifications
| Bicycle chain | 1/2 X 3/32 (inches) |
| Bottom bracket shell width | Not Available |
| Bottom bracket type | Shimano Cartridge |
| Crankset parts and sizes | 24/34/42 Teeth Shimano AceraX |
| Gear shift levers | Shimano AceraX EZ Fire Plus |
| Rear gear set | 11 - 28 Teeth 7-speed |
Schwinn Frontier GS Fork System Data
| Derailleur (Front) | Shimano AceraX |
| Derailleur (Rear) | Shimano AceraX |
| Fork material | Oversize Unicrown Crown Chromoly |
| Fork type | Schwinn |
Other Specs of Schwinn Frontier GS
| Component group sets | Mountain Mix |
| Pedals details | Resin |
| Rear shock absorber | Not Available |
| Saddle seat | Schwinn Comfort Padded |
| Seat post extension | Kalloy Aluminum |
