Raleigh M30FS 1996 VS Iron Horse SGS-PRO DH 2004 specs comparison

Raleigh M30FS

General Infos

Model	M30FS
Manufacturer	Raleigh
Year of production	1996
Current price	Check price Here ==>
Color choice	- red front and silver rear -Grape front and silver rear
Sizes	- 16 (inches) - 18 (inches) - 20 (inches)
Sizes	- 16 (inches) - 18 (inches) - 20 (inches)

Wheels And Breaking System

Bike front tire	26 X 2.00 (inches) Duro
Bike rear tire	Not Available
Bike wheel size	26 (inches) Wheels
Brakeset type	Shimano Altus Levers Shimano Altus Brakes
Hubs for disc brakes	Not Available
Rims manufacturer	36-hole Weinmann 519
Spoke nipples type	Brass Nipples
Spoke wheel	2.0 (millimeters) Straight Gauge Chung Nan Stainless Steel

Frame and Body Specs

Frame materials	Oversize Main Triangle Chromoly
Frame type	TIG-welded Steel
Handlebar construction	Live Chin LCH-685S
Handlebar extender	Optional
Handlebar stem details	Live Chin LCS-739N
Headset size	1 (inches) Victor VP-H67

Gearing Specifications

Bicycle chain	1/2 X 3/32 (inches) KMC UG-50
Bottom bracket shell width	68 (millimeters) English
Bottom bracket type	116 (millimeters) Spindle Victor VPBC-90P
Crankset parts and sizes	24/32/38 Teeth Tracer
Gear shift levers	Shimano Altus EZ Fire
Rear gear set	11 - 28 Teeth 7-speed

Raleigh M30FS Fork System Data

Derailleur (Front)	Bottom-pull and bottom Bracket Mount Shimano Altus Top-swing
Derailleur (Rear)	Shimano Altus
Fork material	Triple-clamp Crown Aluminum and chromoly
Fork type	SR DuoTrack 7006

Other Specs of Raleigh M30FS

Component group sets	Shimano Altus C90
Pedals details	Wellgo LU-943
Rear shock absorber	1.0 (inches) Travel Hydraulic Damping Ballistic Coil-spring
Saddle seat	Sella Stratos HyperSoft
Seat post extension	26.0 (millimeters) Diameter Hsin Lung SP-200

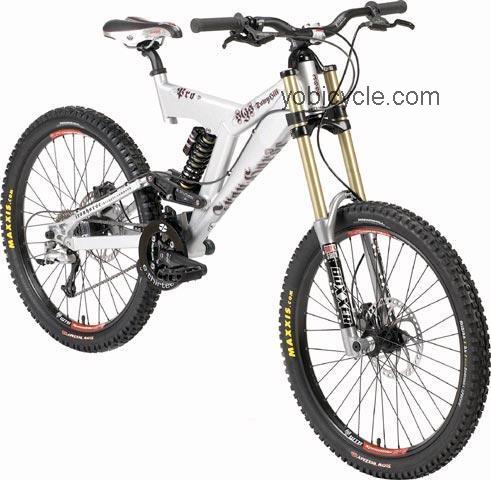

Iron Horse SGS-Pro DH

General Infos

Model	SGS-Pro DH
Manufacturer	Iron Horse
Year of production	2004
Current price	Check price Here ==>
Color choice	-Matte Silver
Sizes	- 17 (inches) - 19 (inches) - 21 (inches)

Wheels And Breaking System

Bike front tire	26 X 2.5 (inches) Maxxis Minion
Bike rear tire	Not Available
Bike wheel size	26 (inches) Wheels
Brakeset type	Hayes HFX-9 HD Levers Hayes HFX-9 Hydraulic Disc Brakes
Hubs for disc brakes	Rear: Alloy 12 (millimeters) Thru Axle Front: Alloy 20 (millimeters) Thru Axle
Rims manufacturer	36-hole WTB SpeedDisc Pro DH
Spoke nipples type	Not Available
Spoke wheel	14ga. Black Straight Gauge Stainless Steel

Frame and Body Specs

Frame materials	Butted Aluminum
Frame type	TIG-welded
Handlebar construction	FSA Riser Bar
Handlebar extender	Not Available
Handlebar stem details	FSA 3D Forged
Headset size	1 1/2 (inches) FSA No.61 With 1 1/8 (inches) Reducer

Gearing Specifications

Bicycle chain	1/2 X 3/32 (inches) Shimano HG-73
Bottom bracket shell width	Not Available
Bottom bracket type	100 (millimeters) Spindle FSA Platinum Pro DH
Crankset parts and sizes	38 Teeth FSA V-drive Xtreme 165 (millimeters)
Gear shift levers	Shimano Deore RapidFire
Rear gear set	11 - 32 Teeth 9-speed

Iron Horse SGS-Pro DH Fork System Data

Derailleur (Front)	Not Available
Derailleur (Rear)	Shimano Deore XT
Fork material	Not Available
Fork type	7.0 (inches) Travel Rock Shox Boxxer Race

Other Specs of Iron Horse SGS-Pro DH

Component group sets	Mountain Mix
Pedals details	Wellgo B37 Platform
Rear shock absorber	8 (inches) Travel Answer Manitou SPV Coil 4-way
Saddle seat	WTB Speed V Race
Seat post extension	29.8 (millimeters) Diameter Micro Adjust
