Raleigh M40DX 2005 VS Schwinn FRONTIER 2011 specs comparison

Raleigh M40DX
General InfosModel | M40DX |
Manufacturer | Raleigh |
Year of production | 2005 |
Current price | Check price Here ==> |
Color choice |
-Not found |
Sizes |
- Not available |
Sizes |
- Not available |
Wheels And Breaking System
Bike front tire | 26 X 2.10 (inches) Kenda K-881 |
Bike rear tire | Not Available |
Bike wheel size | 26 (inches) Wheels |
Brakeset type | Shimano Levers Tektro IO Disc Brakes |
Hubs for disc brakes | Joytech Aluminum Disc QR |
Rims manufacturer | 36-hole Alex R-1000 |
Spoke nipples type | Not Available |
Spoke wheel | 14ga. Straight Gauge Stainless Steel |
Frame and Body Specs
Frame materials | Atomic 13 Aluminum |
Frame type | TIG-welded |
Handlebar construction | Steel |
Handlebar extender | Optional |
Handlebar stem details | Aluminum |
Headset size | 1 1/8 (inches) Threadless |
Gearing Specifications
Bicycle chain | 1/2 X 3/32 (inches) KMC Z51 |
Bottom bracket shell width | Not Available |
Bottom bracket type | Sealed Cartridge |
Crankset parts and sizes | 22/32/42 Teeth Suntour XCC-150 |
Gear shift levers | Shimano ST-EF29L |
Rear gear set | 11 - 34 Teeth 7-speed |
Raleigh M40DX Fork System Data
Derailleur (Front) | Shimano FD-C050 |
Derailleur (Rear) | Shimano Tourney TX-50 |
Fork material | Single Crown Aluminum |
Fork type | 75 (millimeters) SR Suntour SR XC60 |
Other Specs of Raleigh M40DX
Component group sets | Mountain Mix |
Pedals details | Resin Platform |
Rear shock absorber | Not Available |
Saddle seat | Avenir ATB |
Seat post extension | Aluminum Micro-adjust |

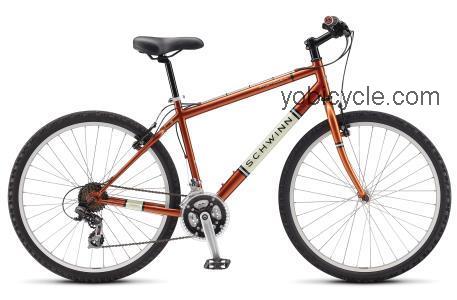

Schwinn Frontier
General InfosModel | Frontier |
Manufacturer | Schwinn |
Year of production | 2011 |
Current price | Check price Here ==> |
Color choice |
- burnt orange -Black |
Sizes |
- XS |
Wheels And Breaking System
Bike front tire | 26 X 2.0'' Innova |
Bike rear tire | Not Available |
Bike wheel size | 26 (inches) Wheels |
Brakeset type | Promax Alloy Levers ProMax Linear-pull Brakes |
Hubs for disc brakes | KT Alloy Sealed Mechanism QR |
Rims manufacturer | 32-hole Alex IC-1000 |
Spoke nipples type | Not Available |
Spoke wheel | 14ga. Stainless Stainless |
Frame and Body Specs
Frame materials | Schwinn N' Gauged Hi-Ten |
Frame type | Steel |
Handlebar construction | 40 (millimeters) Rise |
Handlebar extender | Optional |
Handlebar stem details | Alloy |
Headset size | 1 1/8 (inches) Threadless |
Gearing Specifications
Bicycle chain | KMC Z-51 |
Bottom bracket shell width | Not Available |
Bottom bracket type | CH Cartridge Sq. JIS |
Crankset parts and sizes | 42/34/24t Teeth Forged Alloy |
Gear shift levers | Shimano EF-40 |
Rear gear set | Not Available |
Schwinn Frontier Fork System Data
Derailleur (Front) | Shimano TY10 |
Derailleur (Rear) | Shimano Tourney TX-31 |
Fork material | Not Available |
Fork type | Rigid Frame |
Other Specs of Schwinn Frontier
Component group sets | Mountain Mix |
Pedals details | Nylon Platform With Reflectors |
Rear shock absorber | Not Available |
Saddle seat | Trail Tuned |
Seat post extension | 25.6 (millimeters) Diameter Alloy Micro Adjust |
