Raleigh M800 2001 VS Scott SCALE LTD 2010 specs comparison

Raleigh M800
General InfosModel | M800 |
Manufacturer | Raleigh |
Year of production | 2001 |
Current price | Check price Here ==> |
Color choice | -Galvanized |
Sizes | - Extra small - Small - Medium - Large - Extra large |
Sizes | - Extra small - Small - Medium - Large - Extra large |
Wheels And Breaking System
Bike front tire | 26 X 2.00 (inches) WTB MotoRaptor |
Bike rear tire | Not Available |
Bike wheel size | 26 (inches) Wheels |
Brakeset type | Magura Julie LeversMagura Julie Brakes |
Hubs for disc brakes | Aluminum O and S |
Rims manufacturer | 32-holeWTB SpeedDisc |
Spoke nipples type | Not Available |
Spoke wheel | 14gStainless Steel |
Frame and Body Specs
Frame materials | 7005 aluminum c |
Frame type | TIG-welded |
Handlebar construction | Koski Riser |
Handlebar extender | Optional |
Handlebar stem details | Koski Forged Aluminum |
Headset size | 1 1/8 (inches) Threadless Tange Seiki ZST |
Gearing Specifications
Bicycle chain | 1/2 X 3/32 (inches)KMC Z9000 |
Bottom bracket shell width | Not Available |
Bottom bracket type | Shimano BB-UN52 |
Crankset parts and sizes | 22/32/44 TeethShimano LX |
Gear shift levers | Shimano Deore LX RapidFire SL |
Rear gear set | 11 - 32 Teeth9-speed |
Raleigh M800 Fork System Data
Derailleur (Front) | Shimano Deore LX |
Derailleur (Rear) | Shimano Deore XT SGS |
Fork material | Triple-clamp CrownAluminum and magnesium |
Fork type | 4.0 (inches) TravelRock Shox Pyslo XC |
Other Specs of Raleigh M800
Component group sets | Mountain Mix |
Pedals details | Wellgo WPD-M9 Clipless |
Rear shock absorber | Not Available |
Saddle seat | WTB SST.XCZ |
Seat post extension | SuspensionAluminum |

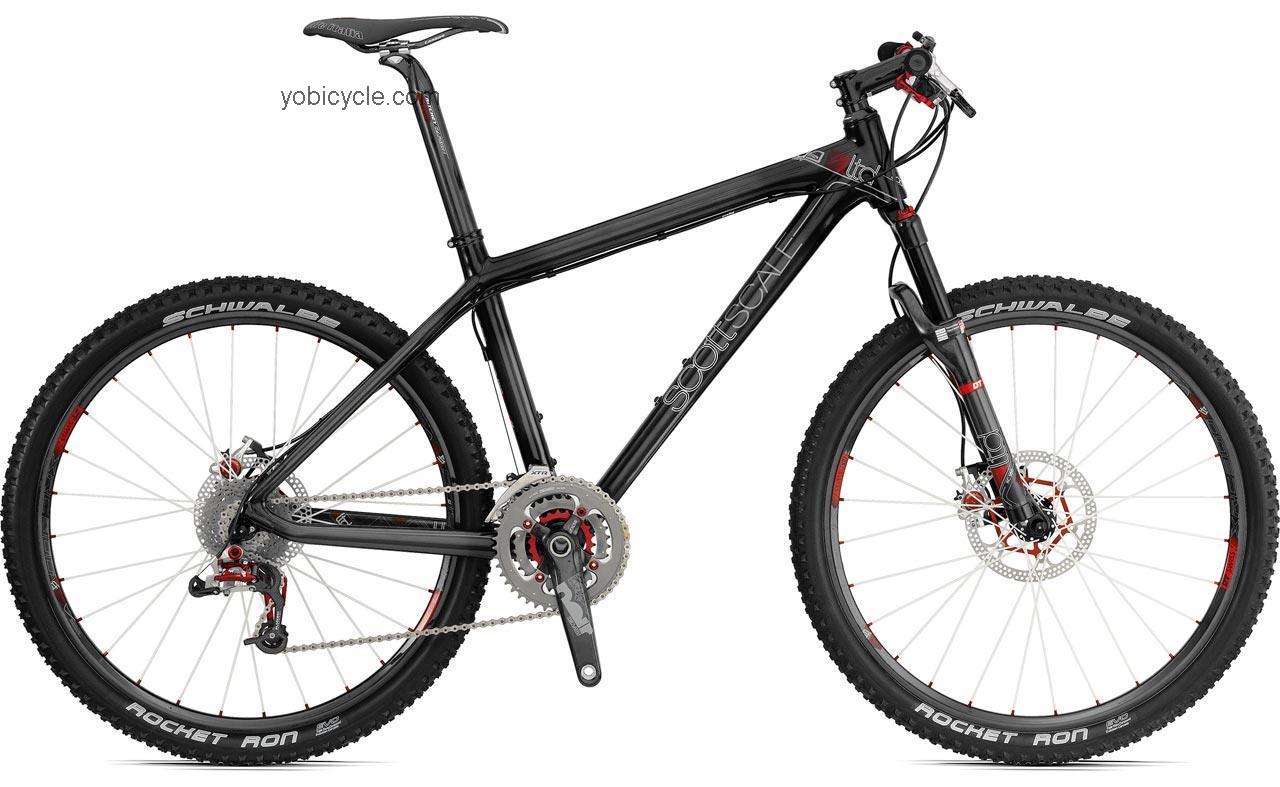

Scott Scale LTD
General InfosModel | Scale LTD |
Manufacturer | Scott |
Year of production | 2010 |
Current price | Check price Here ==> |
Color choice | -Black |
Sizes | - S - M - L - XL |
Wheels And Breaking System
Bike front tire | 26 X 2.25 (inches) Schwalbe Rocket Ron 127 TPI Kevlar Bead Evolution and Triple Compound |
Bike rear tire | Not Available |
Bike wheel size | 26 (inches) Wheels |
Brakeset type | Formula R1 Carbon Hydraulic LeversFormula R1 Disc With 180 (millimeters) Rotor Front and Formula R1 Disc With 160 (millimeters) Rotor Rear Brakes |
Hubs for disc brakes | DT Swiss 240S |
Rims manufacturer | 28-holeDT Swiss XRC 330 Carbon |
Spoke nipples type | Not Available |
Spoke wheel | 2.0/1.5/2.0 Butted And BladedDT Aerolite Stainless Steel |
Frame and Body Specs
Frame materials | Scott Scale CR 1 HMF-NET Carbon Fiber |
Frame type | Monocoque |
Handlebar construction | Scott Pilot SL Integrated 600 (millimeters) |
Handlebar extender | Optional |
Handlebar stem details | Scott Pilot SL Integrated |
Headset size | 1 1/8 (inches) Semi-ntegrated Ritchey WCS Carbon 44/50 (millimeters) |
Gearing Specifications
Bicycle chain | SRAM PC 991 |
Bottom bracket shell width | 73 (millimeters) |
Bottom bracket type | Truvativ GXP Team |
Crankset parts and sizes | 22/32/44 TeethTruVativ Noir 3.3 Team Carbon GXP |
Gear shift levers | SRAM X.0 Trigger |
Rear gear set | 11 - 32 Teeth9-speed |
Scott Scale LTD Fork System Data
Derailleur (Front) | E-typeShimano XTR M970E |
Derailleur (Rear) | SRAM X.0 Carbon Med. Cage |
Fork material | Single CrownCarbon Lowers |
Fork type | 100 (millimeters) TravelDT Swiss XRC 100 |
Other Specs of Scott Scale LTD
Component group sets | Mountain Mix |
Pedals details | Crank Brothers Egg Beater 4Ti |
Rear shock absorber | Not Available |
Saddle seat | Selle Italia SLR XP Kevlar and Carbon Rails |
Seat post extension | Integrated 38.2 (millimeters) DiameterRitchey Stubby WCS |
