Raleigh MTN SCOUT 2006 VS Jamis X-24 2009 specs comparison
Raleigh MTN Scout
General Infos| Model | MTN Scout |
| Manufacturer | Raleigh |
| Year of production | 2006 |
| Current price | Check price Here ==> |
| Color choice | - Black-Lavender |
| Sizes | - 24 Boys (inches)- 24 Girls (inches) |
| Sizes | - 24 Boys (inches)- 24 Girls (inches) |
Wheels And Breaking System
| Bike front tire | 24 X 1.95 (inches) MTB |
| Bike rear tire | Not Available |
| Bike wheel size | 24 (inches) Wheels |
| Brakeset type | Tektro Jr. V-brake LeversTektro Aluminum Linear-pull Brakes |
| Hubs for disc brakes | Freewheel Rear: Alloy 36h NuttedFront: Alloy QR |
| Rims manufacturer | 36-holeAluminum |
| Spoke nipples type | Not Available |
| Spoke wheel | 14ga. Straight GaugeStainless Steel |
Frame and Body Specs
| Frame materials | Aluminum OS Action Curve |
| Frame type | TIG-welded |
| Handlebar construction | Steel Riser |
| Handlebar extender | Optional |
| Handlebar stem details | Alloy Adjustable |
| Headset size | 1 1/8 (inches) Threadless |
Gearing Specifications
| Bicycle chain | KMC Z51 |
| Bottom bracket shell width | Not Available |
| Bottom bracket type | Sealed Mech Loose Ball |
| Crankset parts and sizes | 28/38/48 TeethSR Suntour XCC100 |
| Gear shift levers | Shimano Revo |
| Rear gear set | 14 - 28 Teeth7-speed |
Raleigh MTN Scout Fork System Data
| Derailleur (Front) | Shimano Tourney TY-32 |
| Derailleur (Rear) | Shimano RD-TX30 |
| Fork material | Single CrownAluminum |
| Fork type | 50 (millimeters) TravelSR Suntour M2000 |
Other Specs of Raleigh MTN Scout
| Component group sets | Not Available |
| Pedals details | Resin Platform |
| Rear shock absorber | Not Available |
| Saddle seat | Raleigh Jr. Mtn |
| Seat post extension | 27.2 (millimeters) DiameterAluminum Pillar |

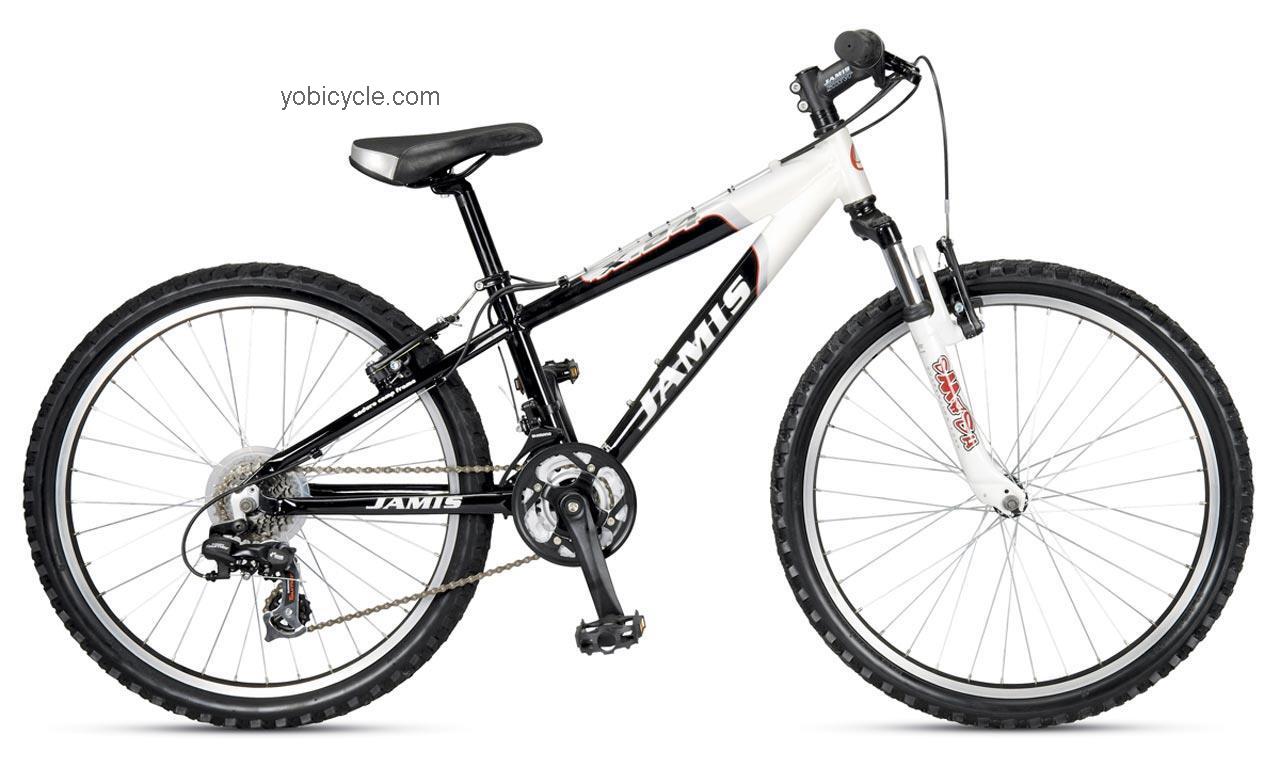

Jamis X-24
General Infos| Model | X-24 |
| Manufacturer | Jamis |
| Year of production | 2009 |
| Current price | Check price Here ==> |
| Color choice | - Sugar Green and Gloss Black-Gloss Black and Pearl White |
| Sizes | - Not available |
Wheels And Breaking System
| Bike front tire | 24 X 1.95 (inches) CST ATB |
| Bike rear tire | Not Available |
| Bike wheel size | 24 (inches) Wheels |
| Brakeset type | Alloy Short Reach LeversAlloy Linear Pull Brakes |
| Hubs for disc brakes | Heavy Duty Nutted Axle |
| Rims manufacturer | 36-holeAlloy |
| Spoke nipples type | Not Available |
| Spoke wheel | 14ga. Nickel-plated |
Frame and Body Specs
| Frame materials | 7005 aluminum c |
| Frame type | TIG-welded |
| Handlebar construction | ATB Alloy Riser |
| Handlebar extender | Optional |
| Handlebar stem details | Jamis |
| Headset size | 1 1/8 (inches) Aheadset |
Gearing Specifications
| Bicycle chain | KMC Z51 |
| Bottom bracket shell width | 68 (millimeters) |
| Bottom bracket type | 119 (millimeters) SpindleCotterless |
| Crankset parts and sizes | 24/34 TeethForged Alloy |
| Gear shift levers | SRAM MRX Grip Shift |
| Rear gear set | 13 - 28 Teeth7-speed |
Jamis X-24 Fork System Data
| Derailleur (Front) | Shimano TZ30 |
| Derailleur (Rear) | Shimano TX30 |
| Fork material | Single |
| Fork type | 45 (millimeters) TravelSuspension |
Other Specs of Jamis X-24
| Component group sets | Mountain Mix |
| Pedals details | ATB Resin Body |
| Rear shock absorber | Not Available |
| Saddle seat | XC ATB |
| Seat post extension | 27.2 (millimeters) DiameterAlloy Micro Adjust |
