Raleigh PASSAGE 3.0 2006 VS Schwinn SEARCHER 1999 specs comparison

Raleigh Passage 3.0

General Infos

Model	Passage 3.0
Manufacturer	Raleigh
Year of production	2006
Current price	Check price Here ==>
Color choice	- Black - Silver and Lavender -Red and White
Sizes	- 15 (inches) - 17 (inches) - 19 (inches) - 21 (inches) - 23 (inches) - 16L (inches) - 19L (inches)
Sizes	- 15 (inches) - 17 (inches) - 19 (inches) - 21 (inches) - 23 (inches) - 16L (inches) - 19L (inches)

Wheels And Breaking System

Bike front tire	700 X 40C Kenda Cross
Bike rear tire	Not Available
Bike wheel size	700c Wheels
Brakeset type	Tektro V-brake Levers Tektro Aluminum Linear-pull Brakes
Hubs for disc brakes	Rear: Alloy QR Freewheel Front: Alloy QR
Rims manufacturer	36-hole Alex R-1000
Spoke nipples type	Not Available
Spoke wheel	14ga. Straight Gauge Stainless Steel

Frame and Body Specs

Frame materials	Atomic 13 Aluminum
Frame type	TIG-welded
Handlebar construction	Steel Riser
Handlebar extender	Optional
Handlebar stem details	Alloy Adjustable
Headset size	1 1/8 (inches) Threadless

Gearing Specifications

Bicycle chain	KMC Z51
Bottom bracket shell width	Not Available
Bottom bracket type	Sealed Cartridge
Crankset parts and sizes	28/38/48 Teeth SR Suntour XCC100
Gear shift levers	Shimano Revo
Rear gear set	14 - 34 Teeth 7-speed

Raleigh Passage 3.0 Fork System Data

Derailleur (Front)	Shimano Tourney
Derailleur (Rear)	Shimano Tourney TX-50
Fork material	Single Crown Aluminum
Fork type	63 (millimeters) Travel SR NEX-4000

Other Specs of Raleigh Passage 3.0

Component group sets	Not Available
Pedals details	Comfort Platform
Rear shock absorber	Not Available
Saddle seat	Avenir Deluxe Comfort
Seat post extension	27.2 (millimeters) Diameter Aluminum Suspension

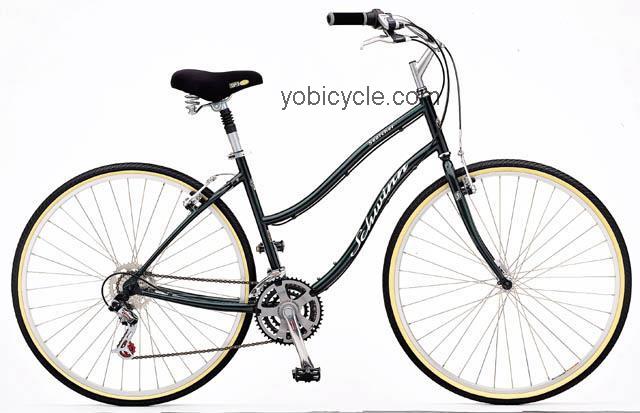

Schwinn Searcher

General Infos

Model	Searcher
Manufacturer	Schwinn
Year of production	1999
Current price	Check price Here ==>
Color choice	- Metallic Red Fade -Metallic Mirror Green
Sizes	- 15 (inches) - 17 (inches) - 19 (inches) - 21 (inches) - womens 15 (inches) - womens 19 (inches)

Wheels And Breaking System

Bike front tire	700 X 40c Multi-terrain
Bike rear tire	Not Available
Bike wheel size	700c Wheels
Brakeset type	Tektro Linear-pull Levers Tektro 825A Linear-pull Brakes
Hubs for disc brakes	Alloy
Rims manufacturer	36-hole Araya PX-645
Spoke nipples type	Brass Nipples
Spoke wheel	2.0 (millimeters) Straight Gauge Stainless Steel

Frame and Body Specs

Frame materials	Chromoly Down Tube and hi-tensile Steel
Frame type	TIG-welded
Handlebar construction	Cruiser Bend
Handlebar extender	Optional
Handlebar stem details	Rise Steel
Headset size	1 (inches) Steel

Gearing Specifications

Bicycle chain	1/2 X 3/32 (inches)
Bottom bracket shell width	Not Available
Bottom bracket type	Shimano Cartridge
Crankset parts and sizes	28/38/48 Teeth Shimano Tourney
Gear shift levers	Shimano Revo
Rear gear set	14 - 34 Teeth 7-speed

Schwinn Searcher Fork System Data

Derailleur (Front)	Shimano Tourney
Derailleur (Rear)	Shimano Tourney TY-40
Fork material	Unicrown Crown Chromoly
Fork type	Schwinn

Other Specs of Schwinn Searcher

Component group sets	Hybrid Mix
Pedals details	Resin Platform
Rear shock absorber	Not Available
Saddle seat	Schwinn Super Soft Spring
Seat post extension	Suspension Aluminum
