Raleigh PHASE 1 2006 VS Trek TOP FUEL 110 2006 specs comparison
Raleigh Phase 1
General Infos| Model | Phase 1 |
| Manufacturer | Raleigh |
| Year of production | 2006 |
| Current price | Check price Here ==> |
| Color choice |
-Red |
| Sizes |
- 17 (inches) - 18 (inches) - 20 (inches) |
| Sizes |
- 17 (inches) - 18 (inches) - 20 (inches) |
Wheels And Breaking System
| Bike front tire | 26 X 2.35 (inches) Kenda Nevegal |
| Bike rear tire | Not Available |
| Bike wheel size | 26 (inches) Wheels |
| Brakeset type | Hayes HFX-9 Levers Hayes HFX-9 7 (inches) Rotors Brakes |
| Hubs for disc brakes | Alloy Joytech QR Disc |
| Rims manufacturer | 32-hole WTB Speed Disc |
| Spoke nipples type | Not Available |
| Spoke wheel | 14ga. Straight Gauge Stainless Steel |
Frame and Body Specs
| Frame materials | Atomic 13 R Double Butted |
| Frame type | TIG-welded |
| Handlebar construction | Answer ProTaper 6061 |
| Handlebar extender | Optional |
| Handlebar stem details | Truvativ XR 5 Deg |
| Headset size | 1 1/8 (inches) Zero Stack WTB |
Gearing Specifications
| Bicycle chain | SRAM PC-950 |
| Bottom bracket shell width | Not Available |
| Bottom bracket type | TruVativ GXP |
| Crankset parts and sizes | 22/32/44 Teeth Truvativ Fire X GXP |
| Gear shift levers | SRAM X-7 Trigger |
| Rear gear set | 11 - 34 Teeth 9-speed |
Raleigh Phase 1 Fork System Data
| Derailleur (Front) | SRAM X-Gen |
| Derailleur (Rear) | SRAM X-7 |
| Fork material | Single Crown Aluminum and magnesium |
| Fork type | 120 (millimeters) Travel Manitou Black Platnium Air With IT Travel Adj |
Other Specs of Raleigh Phase 1
| Component group sets | Not Available |
| Pedals details | Crank Brothers Candy C |
| Rear shock absorber | 4 (inches)-5 (inches) Travel Manitou Radium R With Platform Plus |
| Saddle seat | WTB Lazer V Comp |
| Seat post extension | 27.2 (millimeters) Diameter Truvativ XR |

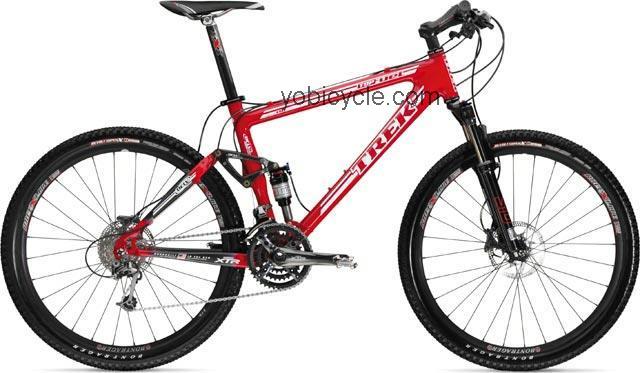

Trek Top Fuel 110
General Infos| Model | Top Fuel 110 |
| Manufacturer | Trek |
| Year of production | 2006 |
| Current price | Check price Here ==> |
| Color choice |
-Chi Red |
| Sizes |
- 15.5 (inches) - 17.5 (inches) - 19.5 (inches) - 21.5 (inches) |
Wheels And Breaking System
| Bike front tire | 26 X 2.20 (inches) Bontrager Super X |
| Bike rear tire | Not Available |
| Bike wheel size | 26 (inches) Wheels |
| Brakeset type | Shimano XTR Levers Shimano XTR Brakes |
| Hubs for disc brakes | Bontrager Race X Lite Disc |
| Rims manufacturer | Bontrager Race X Lite Disc |
| Spoke nipples type | Not Available |
| Spoke wheel | Stainless Steel |
Frame and Body Specs
| Frame materials | OCLV 110 Carbon |
| Frame type | Bonded |
| Handlebar construction | Bontrager Race XXX Lite Carbon |
| Handlebar extender | Not Available |
| Handlebar stem details | Bontrager Race XXX Lite Carbon |
| Headset size | Cane Creek S-8 |
Gearing Specifications
| Bicycle chain | Not Available |
| Bottom bracket shell width | Not Available |
| Bottom bracket type | Not Available |
| Crankset parts and sizes | 22/32/44 Teeth Shimano XTR |
| Gear shift levers | Shimano XTR Dual Control |
| Rear gear set | 11 - 34 Teeth 9-speed |
Trek Top Fuel 110 Fork System Data
| Derailleur (Front) | Shimano XTR |
| Derailleur (Rear) | Shimano XTR |
| Fork material | Single Crown Aluminum and magnesium |
| Fork type | 80 (millimeters) Travel Rock Shox SID World Cup |
Other Specs of Trek Top Fuel 110
| Component group sets | Shimano XTR |
| Pedals details | Shimano PD-M520 |
| Rear shock absorber | Rock Shox MC 3 |
| Saddle seat | Bontrager Race X Lite Por |
| Seat post extension | Bontrager Race XXX Lite Carbon |
