Raleigh SC7 2004 VS Trek NAVIGATOR 200 2005 specs comparison
Raleigh SC7
General Infos| Model | SC7 |
| Manufacturer | Raleigh |
| Year of production | 2004 |
| Current price | Check price Here ==> |
| Color choice |
-Not found |
| Sizes |
- 16 (inches) - 18 (inches) - 20 (inches) - 22 (inches) - womens 16 (inches) - womens 19 (inches) |
| Sizes |
- 16 (inches) - 18 (inches) - 20 (inches) - 22 (inches) - womens 16 (inches) - womens 19 (inches) |
Wheels And Breaking System
| Bike front tire | 26 X 1.95 (inches) Kenda Comfort |
| Bike rear tire | Not Available |
| Bike wheel size | 26 (inches) Wheels |
| Brakeset type | Tektro Linear-pull Levers Tektro Linear-pull Brakes |
| Hubs for disc brakes | Q and R Aluminum |
| Rims manufacturer | 36-hole Alex |
| Spoke nipples type | Brass Nipples |
| Spoke wheel | 14ga. Straight Gauge Stainless Steel |
Frame and Body Specs
| Frame materials | 6061 T6 Aluminum |
| Frame type | TIG-welded |
| Handlebar construction | 2 (inches) Rise Steel |
| Handlebar extender | Optional |
| Handlebar stem details | Adjustable Aluminum |
| Headset size | 1 1/8 (inches) Threaded Steel |
Gearing Specifications
| Bicycle chain | 1/2 X 3/32 (inches) |
| Bottom bracket shell width | Not Available |
| Bottom bracket type | Semi-cartridge |
| Crankset parts and sizes | 40 Teeth Aluminum 3-piece |
| Gear shift levers | Shimano Revo RS31 |
| Rear gear set | 13 - 34 Teeth 7-speed |
Raleigh SC7 Fork System Data
| Derailleur (Front) | Not Available |
| Derailleur (Rear) | Shimano Tourney TY-23 |
| Fork material | Unicrown Crown Hi-tensile Steel |
| Fork type | Raleigh |
Other Specs of Raleigh SC7
| Component group sets | Hybrid Mix |
| Pedals details | Avenir Comfort Dual Density |
| Rear shock absorber | Not Available |
| Saddle seat | Avenir |
| Seat post extension | Suspension Aluminum |

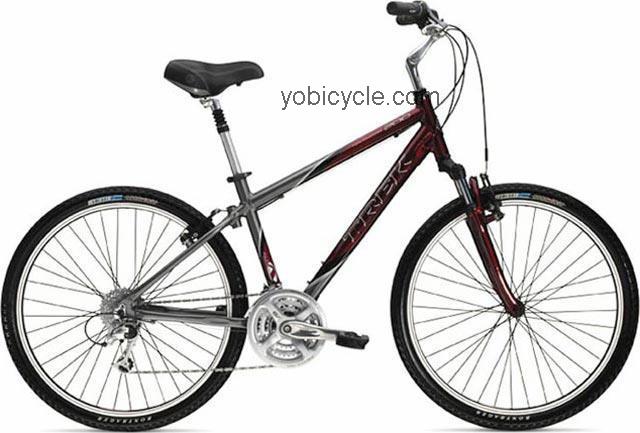

Trek Navigator 200
General Infos| Model | Navigator 200 |
| Manufacturer | Trek |
| Year of production | 2005 |
| Current price | Check price Here ==> |
| Color choice |
- Blue and Gold -Red and Charcoal |
| Sizes |
- 14.5 (inches) - 16.5 (inches) - 18.5 (inches) - 21 (inches) - womens 16 (inches) - womens 20 (inches) |
Wheels And Breaking System
| Bike front tire | 26 X 1.95 (inches) Bontrager Comfort Hardcase |
| Bike rear tire | Not Available |
| Bike wheel size | 26 (inches) Wheels |
| Brakeset type | Aluminum Levers Textro Aluminum Brakes |
| Hubs for disc brakes | Q and R Rear: Shimano FH-RM60 Front: Aluminum |
| Rims manufacturer | Matrix 550 |
| Spoke nipples type | Not Available |
| Spoke wheel | Stainless Steel |
Frame and Body Specs
| Frame materials | Alpha Aluminum |
| Frame type | TIG-welded |
| Handlebar construction | Not Available |
| Handlebar extender | Optional |
| Handlebar stem details | Adjustable |
| Headset size | Not Available |
Gearing Specifications
| Bicycle chain | 1/2 X 3/32 (inches) |
| Bottom bracket shell width | Not Available |
| Bottom bracket type | Not Available |
| Crankset parts and sizes | 28/38/48 Teeth Shimano |
| Gear shift levers | SRAM MRX Plus |
| Rear gear set | 11 - 32 Teeth 8-speed |
Trek Navigator 200 Fork System Data
| Derailleur (Front) | Shimano FD-C102 |
| Derailleur (Rear) | Shimano Alivio |
| Fork material | Single Crown Aluminum |
| Fork type | 50 (millimeters) RST |
Other Specs of Trek Navigator 200
| Component group sets | Hybrid Mix |
| Pedals details | Dual Density |
| Rear shock absorber | Not Available |
| Saddle seat | Bontrager Webspring |
| Seat post extension | Aluminum Suspension |
